ENGINE
3.40

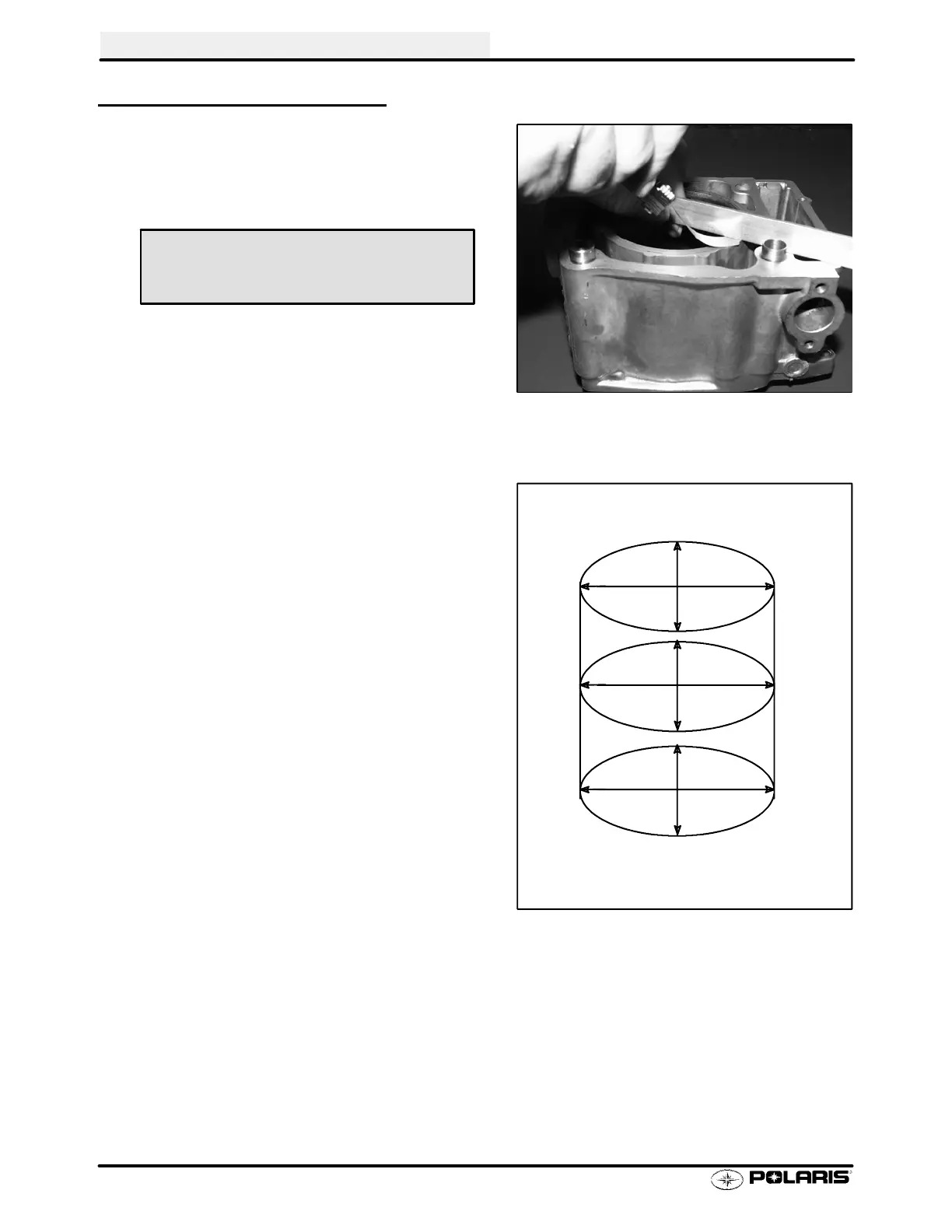

CYLINDER INSPECTION
1. Remove all gasket material from the cylinder sealing
surfaces.
2. Inspect the top of the cylinder for warpage using a
straight edge and feeler gauge.
3. Inspect cylinder for wear, scratches, or damage.
4. Inspect cylinder for taper and out of round with a
telescoping gauge or a dial bore gauge. Measure in
two different directions, front to back and side to side,
on three different levels (1/2″ down from top, in the
middle, and 1/2″ up from bottom).
Cylinder Warpage:
.002″ (.05 mm)
1/2″ Down From Top of Cylinder
1/2″ Up From Bottom
X
X
Y
Y
X
Y
To Next Page
