BODY / STEERING / S USPENSION
5.6

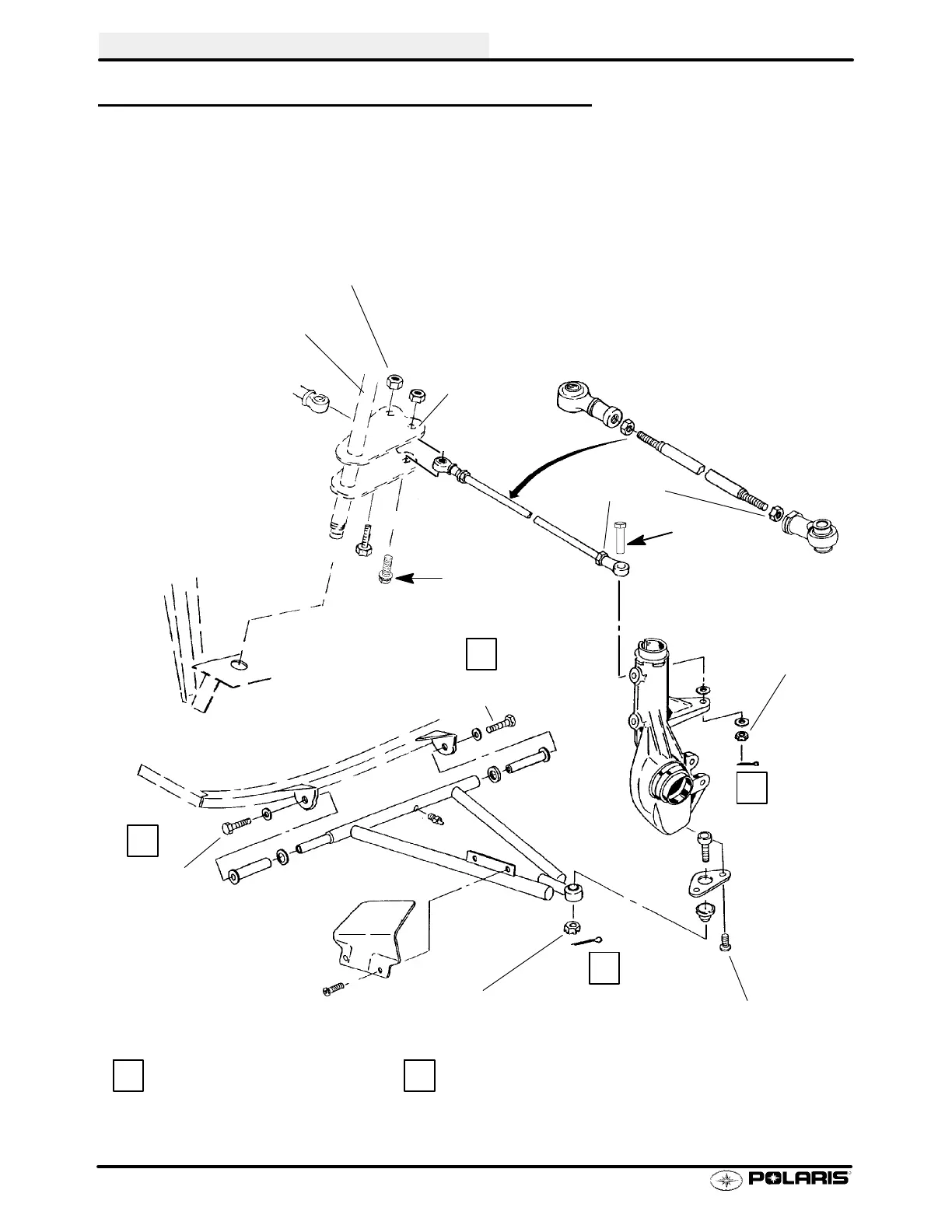

STEERING ASSEMBLY, EXPLODED VIEW
25-30 ft. lbs.
(35-41 Nm)
Loctite™ 242
8 ft. lbs.
(11 Nm)
25 ft. lbs.
(35 Nm)
30 ft. lbs.
41 Nm)
Always use new bolts
upon reassembly
Always use new cotter pins upon
reassembly. Install w/ open end to-
ward rear of machine.
B
1
2
1
30 ft. lbs.
41 Nm)
A
2
12-14 ft. lbs.
(17-17 Nm)
40-45 ft. lbs.
54-61 Nm)
Steering Post
Steering Post
Arm (Frog)
1
2
NOTE:
To avoid damage to tie rods and other steering
components, be sure to install tie rod end bolts in the
proper direction. The steering post arm bolt (B) points up;
the rod end bolts (A) point down. Be sure inner rod ends
are placed between the steering post arms.
