FINAL DRIVE
7.10
AWD ARMATURE PLATE INSPECTION
1. As the armature plate is engaged, it should contact
the outer magnet pole (seal sleeve) and the inner
magnet pole. Also, the armature plate must be flat
whenplacedonaflatsurface. Bentarmatureplates
should be replaced.
NOTE:Itisnotunusualtoseeadoublewearringon
the armature plate; however, the wear rings should
be even.
2. Install the roller clutch (Hilliard Clutch) assembly
and be sure the armature plate (A) is positioned
properly. Also, when installing the hub assembly,
be sure the armature plate tabs remain engaged
with the roller clutch cage.
CAUTION: After the hub is installed, the slightest
movement outward with the hub may cause the
armature plate tabs to disengage from the roller clutch
cage. If the unit is driven with the armature plate out of
position, it will cause roller clutch damage.

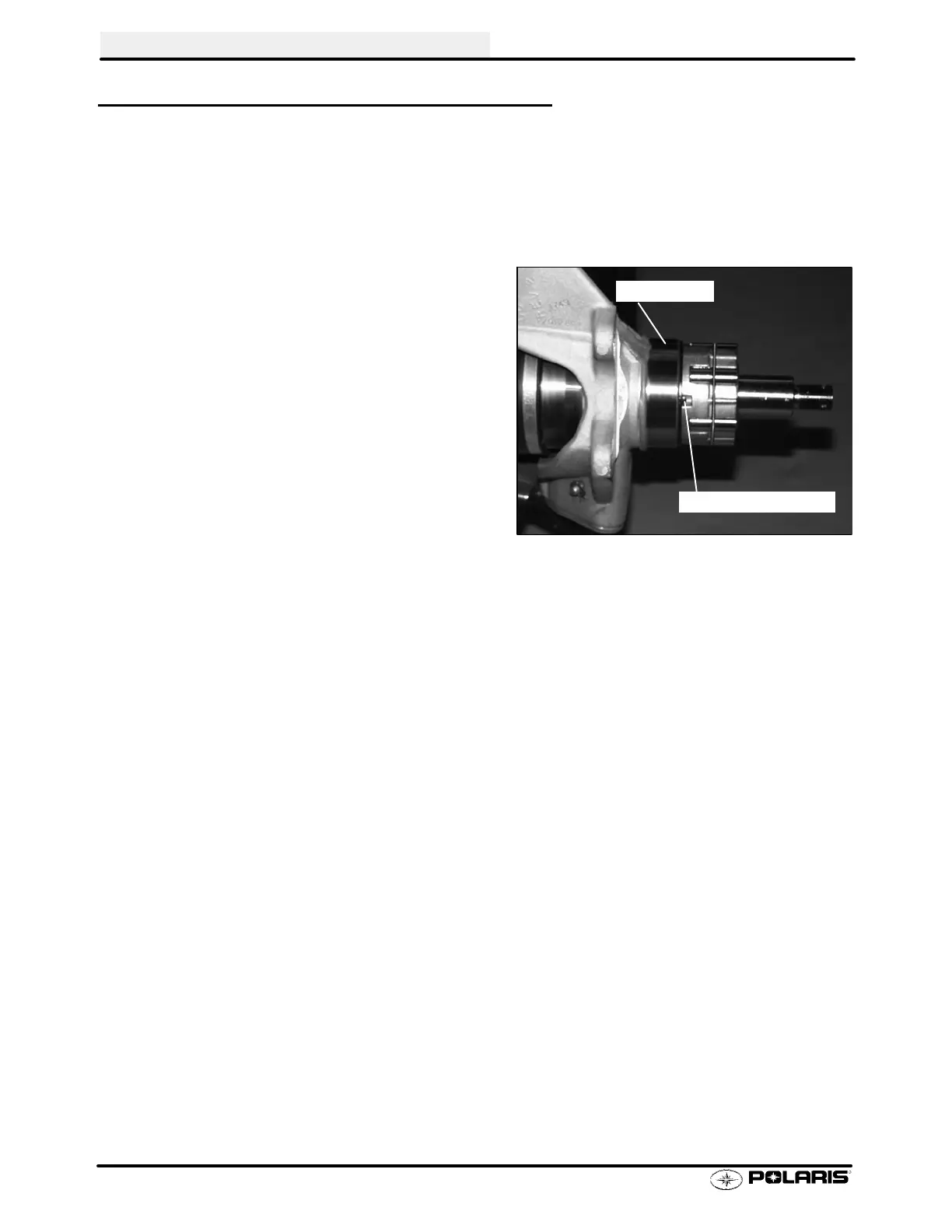

Armature Plate Tabs
Seal Sleeve
