FINAL DRIVE
7.9

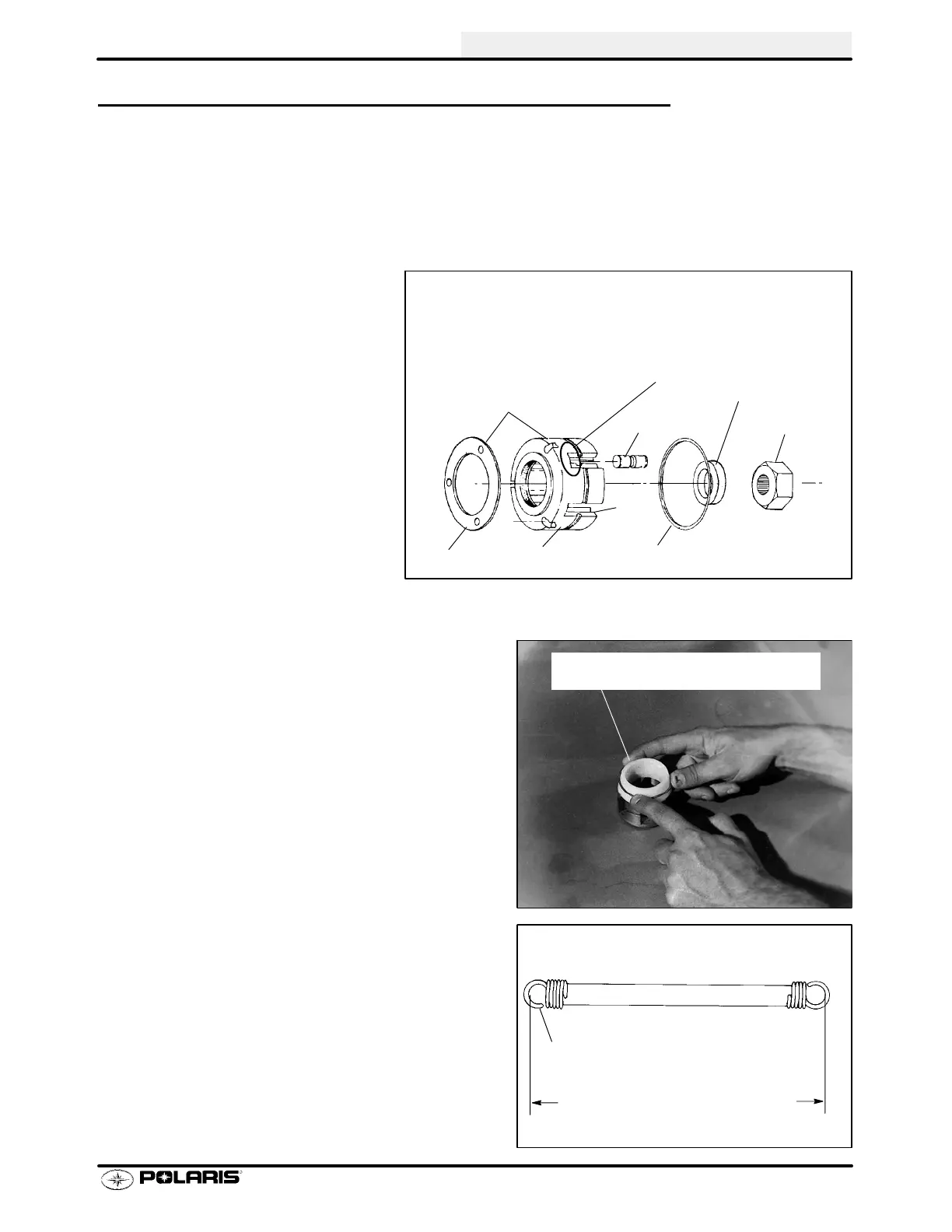

HILLIARD CLUTCH DISASSEMBLY/INSPECTION
1. Remove front hub. See page 7.3.
2. Remove Hilliard clutch assembly.
3. Disassemble the roller clutch and thoroughly clean allparts. CAUTION: Donot remove the garter spring. If
the spring is removed, it will become over stressed and will require replacement.
4. Inspectrollcageslidingsurface(A). Thissurfacemustbecleanandfreeofnicks,burrsorscratches. Inspect
roller cage (2) carefully for cracks.
5. Inspect rollers (3). The rollers must slide up and down freely within the roller cage sliding surfaces A.
6. Without removing the garter spring,
inspect the coils for consistency. If
coils are distorted or uneven, cut the
oldspringwithasidecutter toremove
it, and replace it.
7. If garter spring replacement is necessary, it is very
important that the correct installation procedure
and special tool be used. Hold rollers in place on
roller cage with a light film of grease. Gently and
evenly roll the spring down the tapered tool (PN
2870888) and into the groove of the rollers and
cage. WARNING: If this procedureis notfollowed
thespringwillbeoverstressedandlose itstension.
Springs with incorrect tension may allow rollers to
move outward at high vehiclespeeds. If the rollers
move outward, the front hub(s) will engage and
cause vehicle instability, which could result in
serious injury or death.
W ARNING: Be sure to use correct garter spring.
These springs are very similar in appearance to those
used on earlier models. If the old, lighter springs were
installed on a machinerequiring theheavier spring, the
front wheels may engage at high speed, possibly re-
sulting in serious injury or death. Check springs be-
fore installation. Always verify the correct replace-
ment spring part number by referring to the
appropriate parts manual.
Current electro-mechanical spring, PN 3250032; wire
diameter .018″ (.46 mm); spring free length end to end
inside hooks 6.968″ (177 mm).
12
3
5
4
A
Engage tabs in the slots
1. Armature Plate NOTE: Armature plate is positioned with
tabs in round holes of cage.
2. Roller Cage
3. Roller
4. Garter Spring
5. Cam
Spacer
Inspect for cracks
Must use tool to install garter spring
PN 2870888
Measure wire diameter
Measure free length to inside of
loops as shown
To Next Page
