TRANSMISSION
8.2
GEAR SHIFT SELECTOR REMOVAL
NOTE: To change fluid, remove selector box assembly, disassemble, clean, and assemble.
1. Remove parts that interfere with access to shift
selector (seat, right side panel, and exhaust heat
shield, etc.).
2. Disconnect the two linkage rods from gear shift
selector slides.
3. Remove five bolts attaching gear shift selector to
the mounting bracket.
4. Liftgearselectoroutofmountingbracketandaway
from frame.

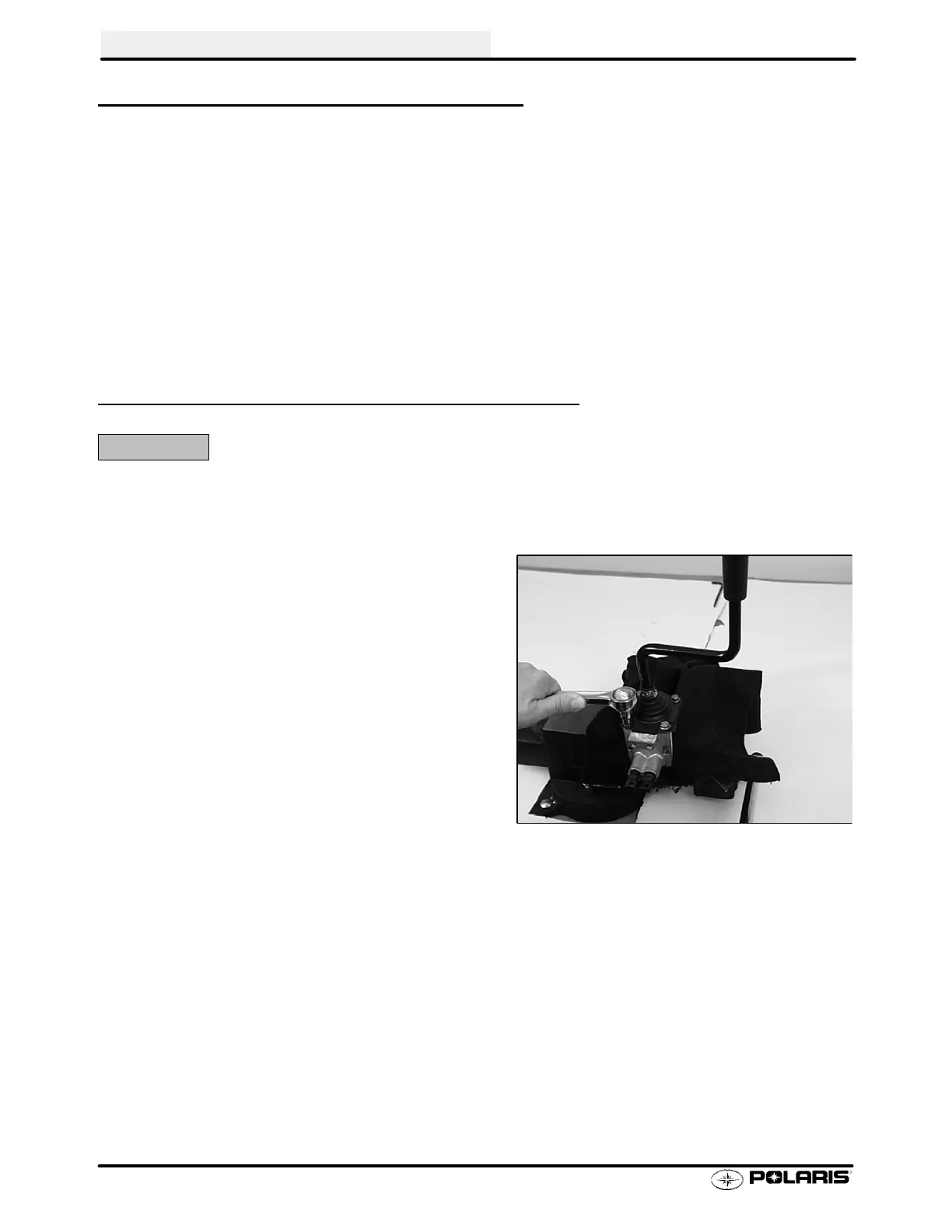

GEAR SHIFT SELECTOR DISASSEMBLY
CAUTION:
Weareyeprotectionduringthisprocedure. Readeach
step completely before proceeding. Essential parts
maybelostor damagedifyoudonotheedthiscaution!
1. Clamp gear selector body lightly in a soft jawed
vice. Usingacrosspattern,looseneachofthefour
screws holding the gear shift selector cover to the
gearshiftselectorbody. Looseneachscrewonlya
few turns, then proceed to another screw.
NOTE: Theseparts areunderpressurefrom theinter-
nal springs.
To Next Page
