BRAKES
9.18

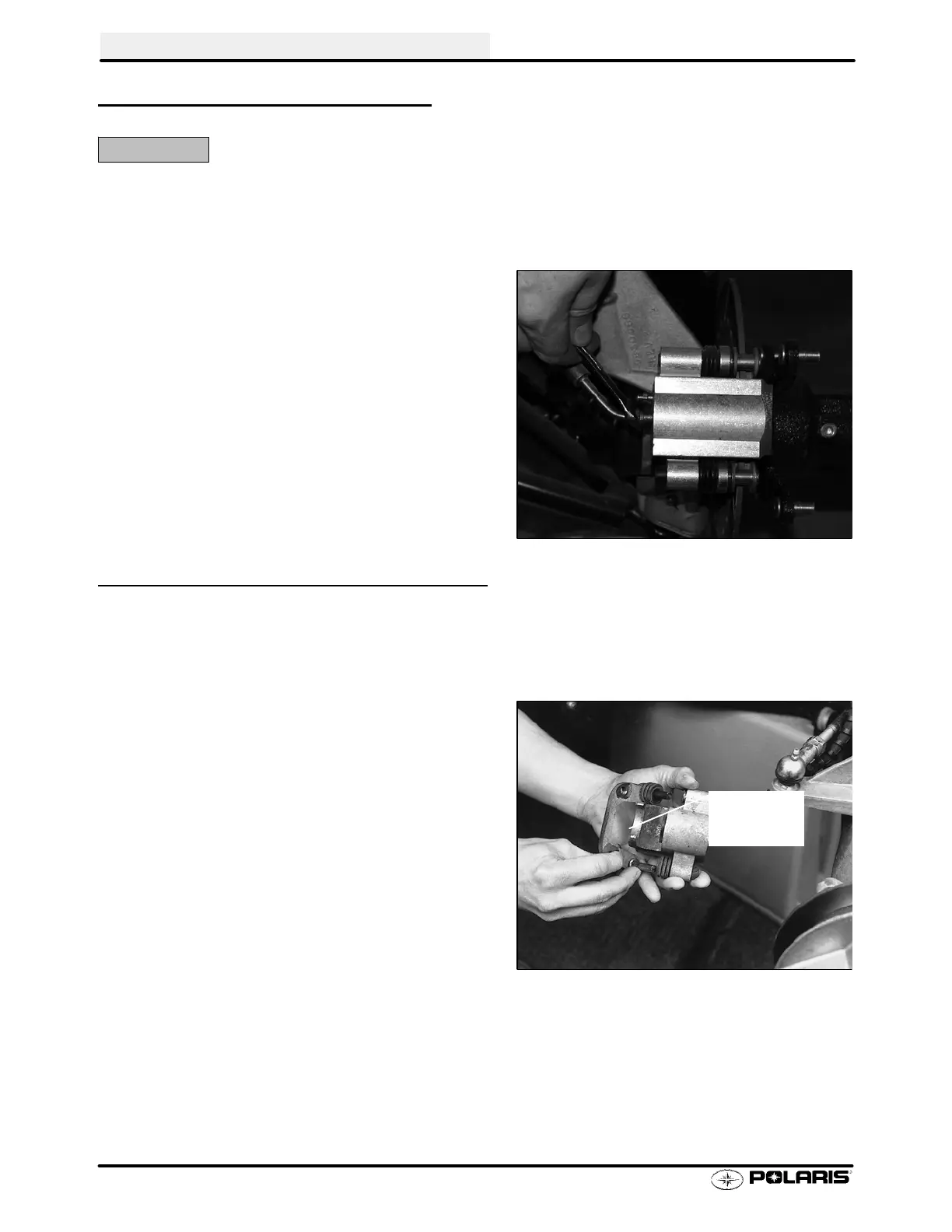

FRONT CALIPER REMOVAL
CAUTION:
Use care when supporting vehicle so that it does not tip or
fall. Severe injury may occur if machine tips or falls.
1. Remove brake pads. See page 9.14.
2. Using a line wrench, loosen and remove brake line to
caliper . Place a container under caliper to catch fluid
draining from brake line.
3. Remove brake caliper and drain fluid into container.
FRONT CALIPER DISASSEMBLY
1. Remove brake pad adjuster screw .
2. Push upper pad retainer pin inward and slip brake
pads past edge.
3. Remove mounting bracket, pin assembly and dust
boot.
Remove
Mounting
Bracket
To Next Page
