CLUTCH
6.15

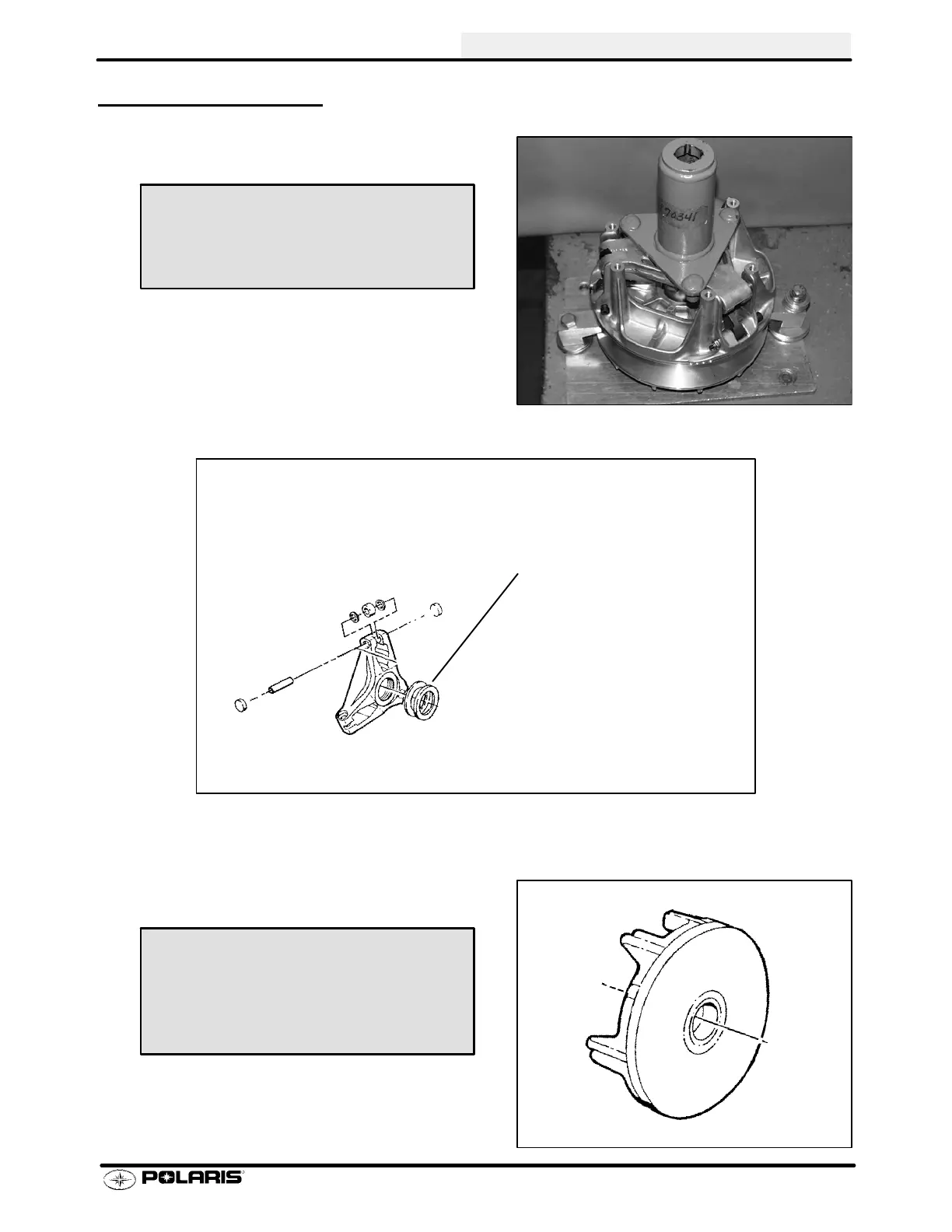

SPIDER REMOVAL
1. Install clutch in holding fixture and loosen the spider
(counterclockwise) using spider removal tool.
NOTE: It isimportant thatthesamenumberandthickness
of washers are reinstalled beneath the spider during as-
sembly. Besuretonotethenumberandthickness ofthese
washers.
To maintain proper clutch balance
and belt-to-sheave clearance, be
sure to reinstall original quantity
and thickness washers
Moveable Sheave Bushing Inspection
2. Inspect the Teflon™ coating on the moveable sheave
bushing.
Clutch Holding Fixture:
PN 2871358
Spider Removal Tool:
PN 2870341
Moveable Sheave Bushing Inspection:
Replace the cover bushing if more
brass than Teflon™ is visible on the
bushing. Refer to bushing replacement
in this chapter.
