CLUTCH
6.36
ENGINE BRAKING SYSTEM (EBS)
Bolts, Lock
Washers
Compression
Spring
Shift Weights
Spacer Sleeve
2″ PTFE Washer
One Way
Clutch Drive
2.25″ PTFE
Washer
Washer
Ramp
Flat Spacer
Compression
Spring
Screw
Drive Belt
PTFE Washer
Retaining
Ring
Flat Washer
Drive Clutch Assembly
Driven Clutch Assembly
Cover
Bushing
Roller/Bushing
Assembly
Retaining
Ring
Bushing
Bushing
Ramp Bus hing
Torque to
185 Ft. Lbs.
Roller

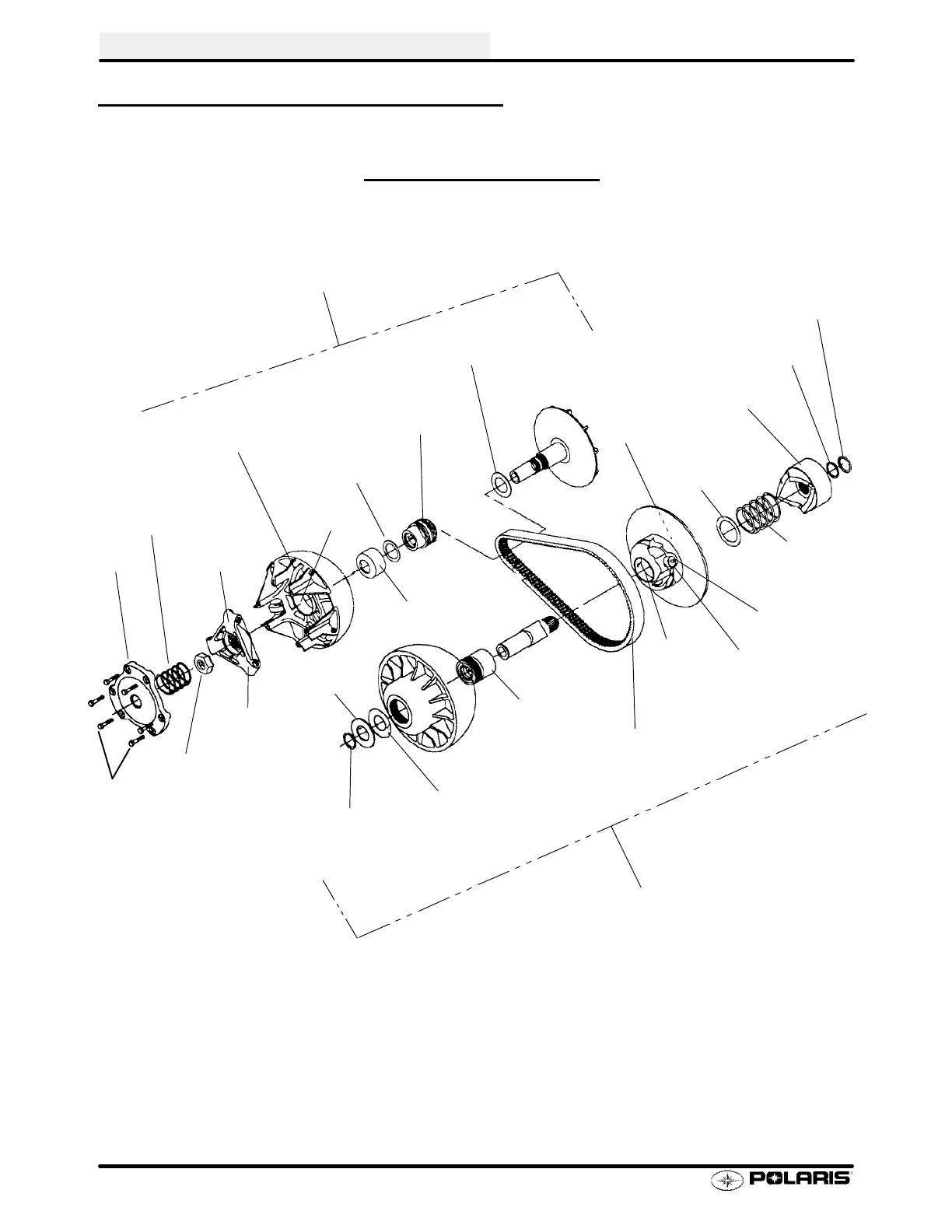

EBS Exploded View
One Way Clutch
(Driven)
Spider Lock Nut
