Quasar CP-3211 User Manual

Configuration and Operation
115
7.5.7 Privacy Mask
From the Privacy Mask page, you can set up to 16 privacy masks. The Privacy Mask function allows
concealment of sensitive portions of the camera image to avoid intrusive monitoring.

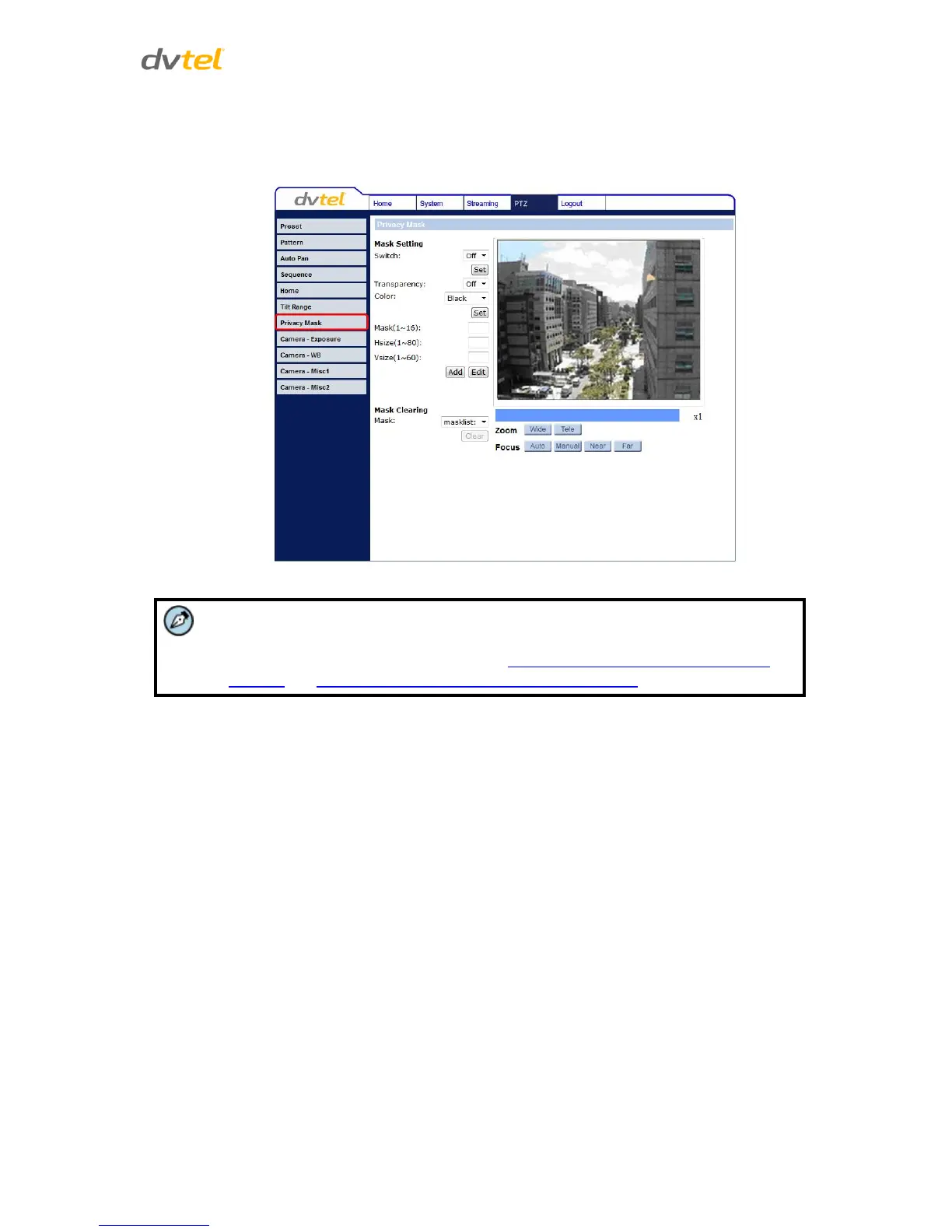

Figure 101: Privacy Mask Screen
Note:
The Image Flip function and the Image Inverse function are automatically disabled
when the Privacy Mask function is on. See Camera – Misc1 (Miscellaneous Settings
Menu 1) and Camera – Misc2 (Miscellaneous Settings Menu 2), respectively.
Mask Setting
 Switch – Select Switch: On or Switch: Off to activate or disable the Privacy Mask function.
Click Set to save the setting.
 Transparency – Select Transparency: On or Transparency: Off to activate or disable Privacy
Mask transparency.
 Color – Select the desired color from the Color drop-down menu for the specified Privacy
Mask. Click Set to save the setting.
 Mask Number – Specify the number of the programmed Privacy Mask in the corresponding
field.
 Mask Size – Specify the Horizontal (1~80) and Vertical (1~60) size of the Privacy Mask.
 Add – Click Add to save the programmed Privacy Mask.
Mask Clearing
To delete an existing Privacy Mask:
1. Select the Privacy Mask to be removed from the Mask drop-down menu.
2. Click Clear.
