Quasar CP-3211/CP-4221 User and Installation Guide
26

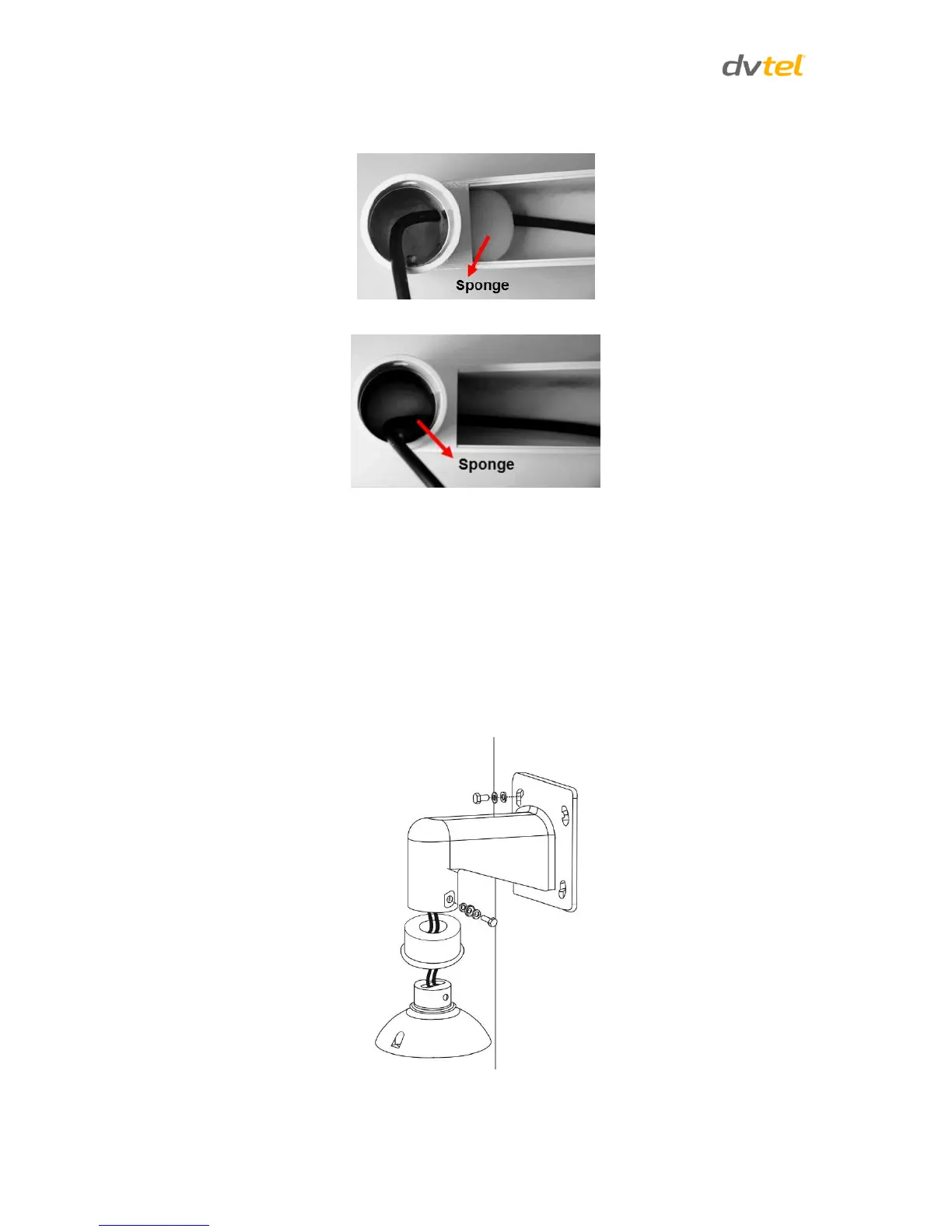

4. After threading the cables, block the entry hole with the supplied sponge to prevent insects
from entering. The sponge can be placed in one of two ways.
5. Thread the cables through the indoor pendant kit or outdoor mount kit and attach the
pendant mount kit to the wall mount using the supplied screws and washers.
6. For outdoor cameras, adjust the waterproof gasket to the joint.
7. Connect the cables to the camera.
8. Secure the camera to the indoor or outdoor mount kit.
9. Ensure the camera is fixed completely, and that the thread holes on the camera’s fixing plate
and the mount kit are aligned.
10. Screw in the supplied screw and washer.
Figure 10: Wall Mount: Compact Wall Mount + Mount Kit
