Quasar CP-3211/CP-4221 User and Installation Guide
24
Tools required:
 Drill
 Phillips and flat-head screw drivers
To install the swan tube mount:
1. Attach the swan tube to the mounting surface using the appropriate screws and screw anchors
(not provided). For outdoor models, attach the waterproof gasket to the swan tube. For indoor
cameras, attach the camera to the indoor pendant mount kit by using the supplied screws.
2. Thread the cables through the swan tube and the indoor or outdoor mount kit.
3. Attach the indoor or outdoor mount kit or outdoor PTZ camera mount to the swan tube using
the supplied screws and washers.
4. For outdoor cameras, fit the waterproof gasket to the joint.
5. Connect the cables to the camera.
6. Secure the camera to the indoor or outdoor mount kit.
7. Ensure the camera is fixed completely, and that the thread holes on the camera’s fixing plate
and the mount kit are aligned.

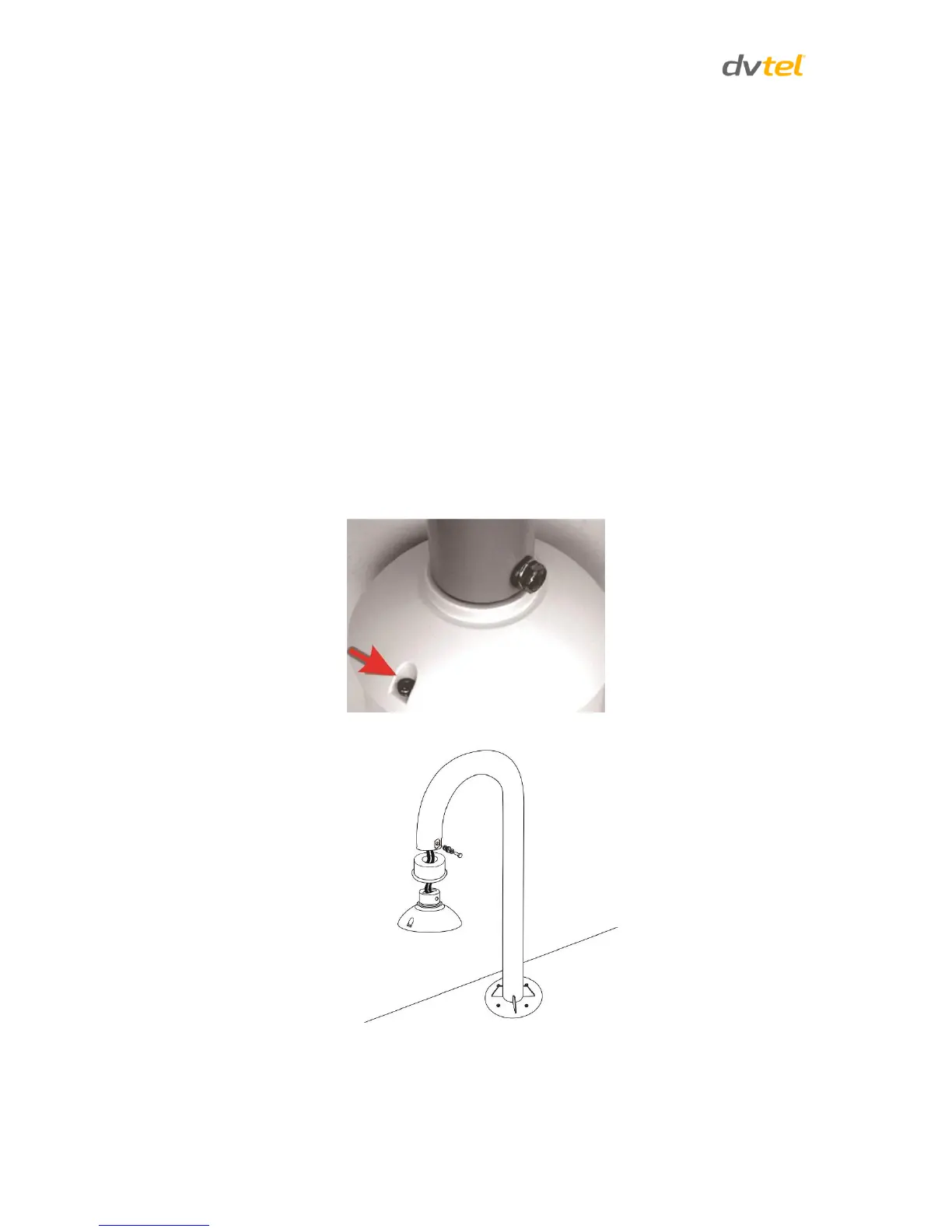

8. Screw in the supplied M5 standard screw/security screw as shown in the figure below.
Figure 9: Swan Tube Mounting
