Quasar CP-3211 User Manual

Configuration and Operation
57
IP Filter
The IP filter restricts access to the camera by denying/allowing specific IP addresses. Click the IP
filter tab under the category Security in the sidebar to display the following page.

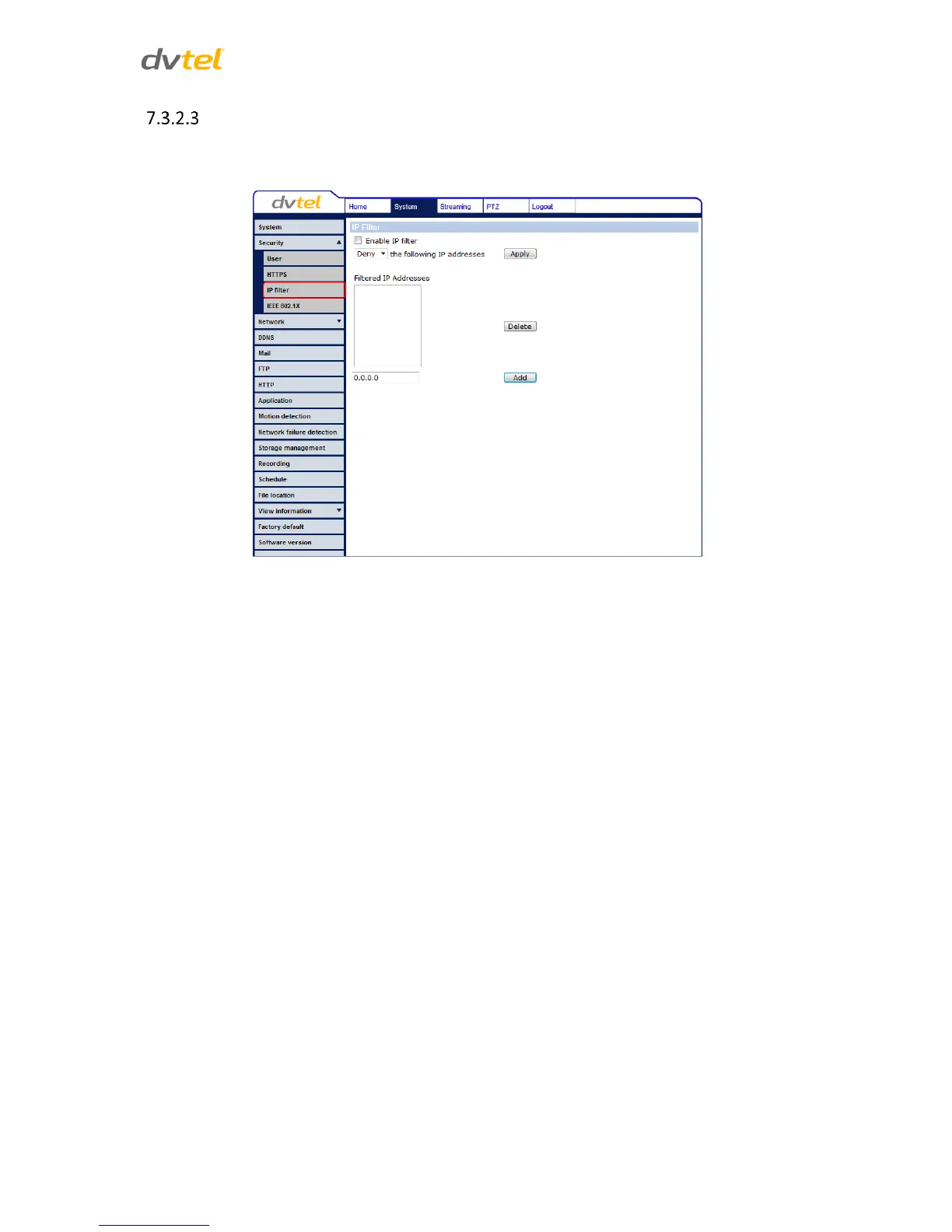

Figure 39: IP Filter Screen
Enable IP Filter
1. Check the box to enable the IP Filter function. Once enabled, the listed IP addresses (IPv4) are
allowed/denied access to the camera.
2. Select Allow or Deny from the drop-down menu.
3. Click Apply to determine the IP Filter behavior.
Add/Delete IP Address
1. Enter the IP address in the Filtered IP Addresses text box.
2. Click Add to add a new filtered address. The Filtered IP Addresses box shows the currently
configured IP addresses. Up to 256 IP address entries may be specified.
3. To remove an IP address from the list, select the IP address and then click Delete.

Quasar CP-3211 Specifications

General

Brand	Quasar
Model	CP-3211
Category	Security Camera
Language	English
