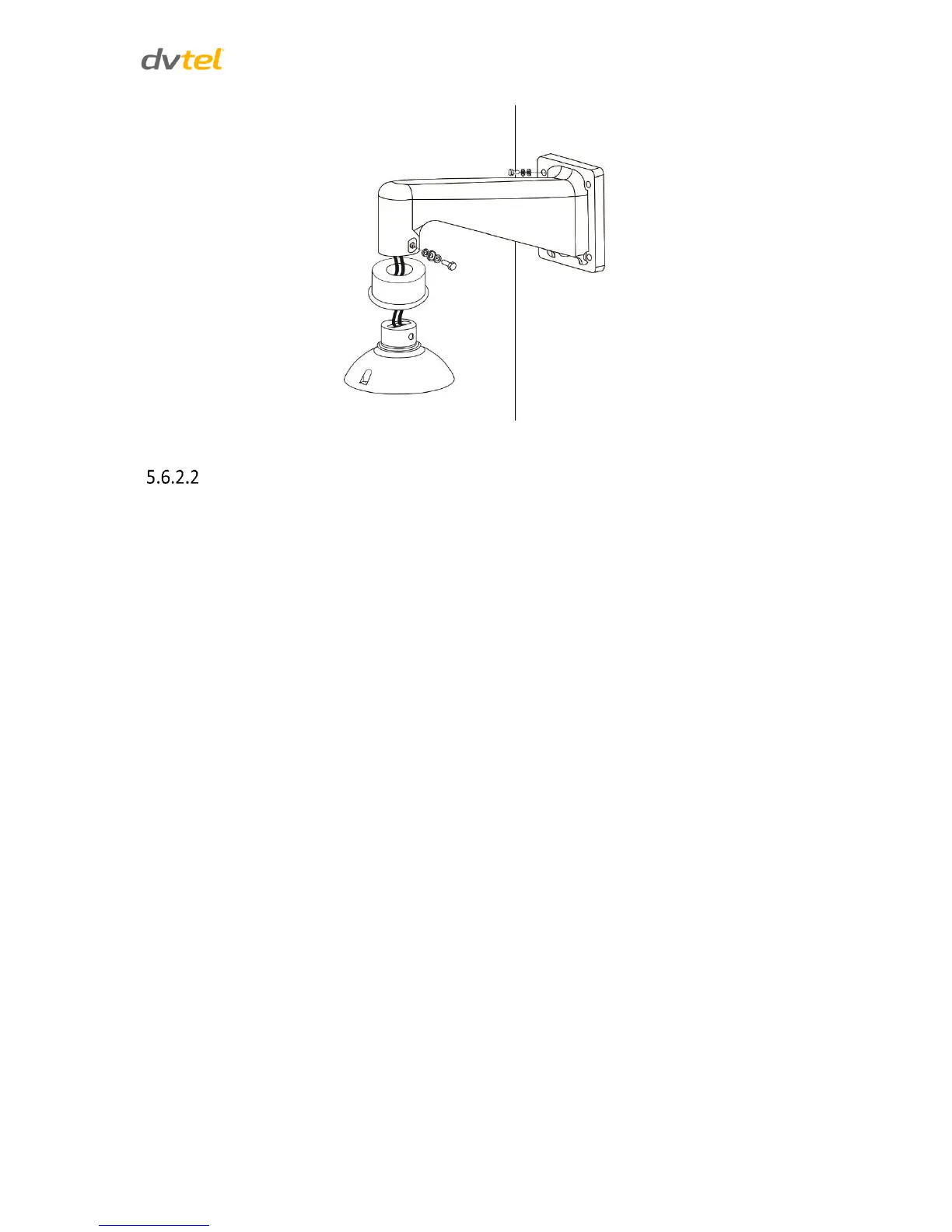

Figure 11: Wall Mount: Standard Wall Mount + Mount Kit
Wall Box Mounting
The wall box mount must be used in conjunction with the standard or compact wall mount.
Items needed:
 Indoor pendant mount kit or outdoor mount kit (standard with outdoor cameras).
 Standard/compact wall mount package (DVTEL camera mounting option available
separately).
 Wall box mount package (DVTEL camera mounting option available separately).
 Screws and screw anchors for fixing the wall box mount (not provided).
Wall box mounting package contents:
 M8x16 screw x4
 Spring washer 8 x4
 Washer 8 x4
 Sponge x2
Tools required:
 Drill
 Phillips and flat-head screw drivers
To install the standard compact wall mount with wall box mount:
1. Cut a cable access hole in the wall.
2. Attach the wall box mount to the wall using the appropriate screws and screw anchors (not
provided).
3. Thread the cables through the wall box mount.
4. Attach the standard/compact wall mount to the wall box mount using the supplied screws and
washers.
