Technical Bulletin PAGE: 14/14

Reissued: 15-Apr-15

Model: CH-C1a

Date: 12-Mar-14

No.: RD135098a

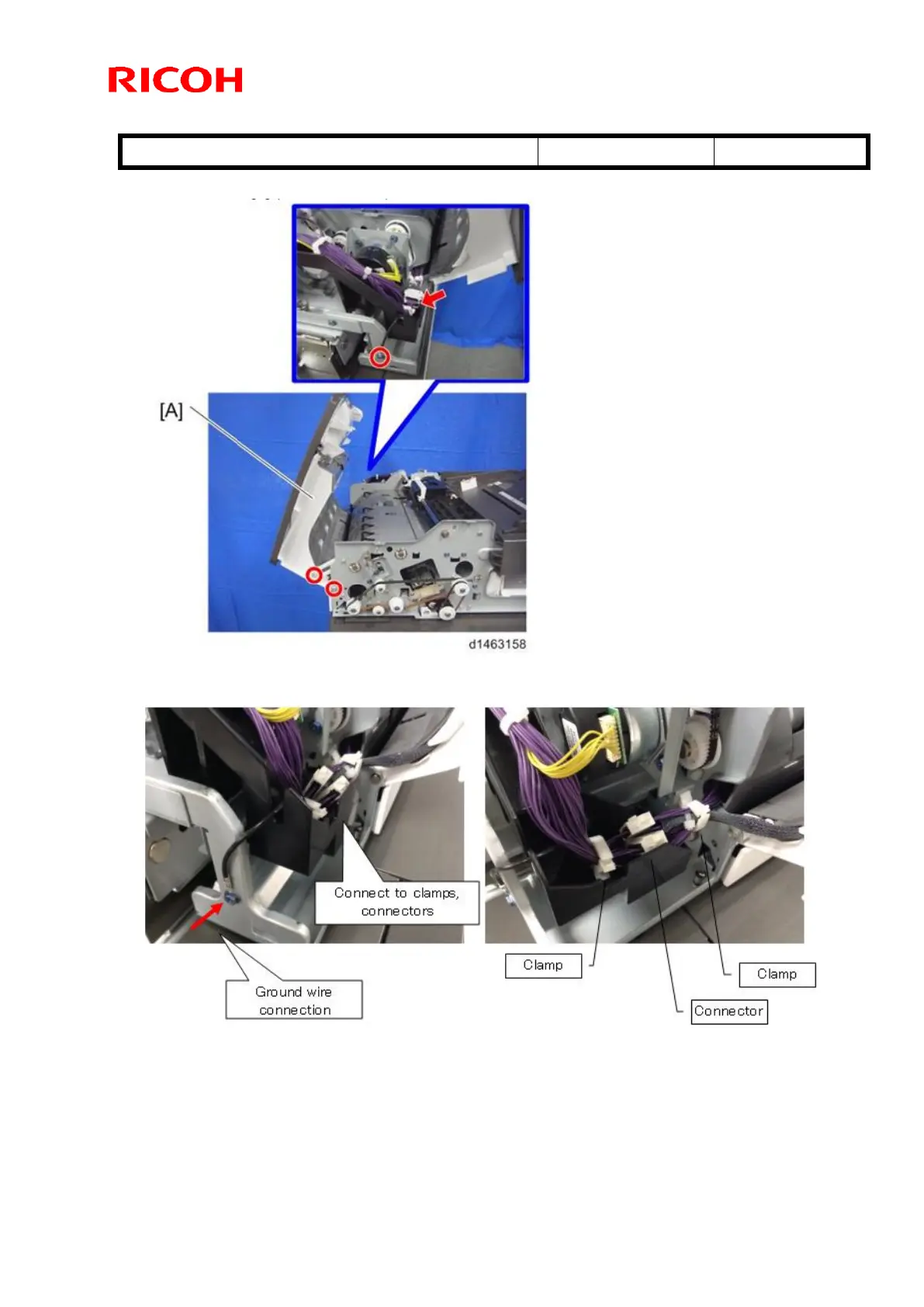

18. Attach the paper feed cover unit to the DF (screws x3, harness x1, clamp x2).

19. Connect the ground wires and connectors.

20. Attach the ADF front cover and rear cover.

21. Close the feed cover.

RTB 4c: Firmware Release Note: Web Uapl1
RTB 7c: Firmware Release Note: GWFCU3.8-1(WW)2
RTB 11b: Firmware Release Note: PowerSaving Sys3
RTB 13: Firmware Release Note: PS34
RTB 14b: Firmware Release Note: RPCS5
RTB 15c: Firmware Release Note: TDCU6
RTB 17d: Firmware Release Note: NetworkDocBox10
RTB 19: Firmware Release Note: aics11
RTB 20d: Firmware Release Note: MailBOX_ONTARIO-D12
RTB 21e: Firmware Release Note: Extended JS13
RTB 22: Firmware Release Note: Option Netware14
RTB 23g: Firmware Release Note: browser15
RTB 24: Replace the description for SP5507-00617
RTB 25: Firmware Release Note: PCL Font18
RTB 26: Streaks made by Paper Edges19
RTB 27: Copy speed decreases when applying the Finisher SR4090/SR4100 punch option.25
RTB 28b: Replace the procedure for “Attaching the ITB Separation Lever”26
RTB 29b: Log-Storing Function40
RTB 30e: Copy Tray Type M2 Installation48
RTB 31a: Important Notice for Scanner Heater Installation67
RTB 32: NVRAM Replacement Procedure69
RTB 33: Lubrication after replacement74
RTB 34: Manual Correction: BCU replacement procedure76
RTB 35: Paper Curl79
RTB 36: SR4090/SR4100: SP Settings81
RTB 37: Installation Procedure for Finisher SR4090/Booklet Finisher SR410083
RTB 38: Installation Procedure for the Finisher SR4110 (D707)94
RTB 39: Manual Correction: Toner Shield Glass Cleaning105
RTB 40: LCIT RT4030 Installation107
RTB 41: Damage on the fusing belt109
RTB 42: Tandem Tray Lift-Up Issue110
RTB 43: SC552-02112
RTB 44b: Paper Jam 30/75 / Paper folding113
RTB 45: SC525-02124
RTB 46: JAM 97 / SC516-02128
RTB 47: SC548-00 / Noise131
RTB 48b: SC460132
RTB 49b: SC569-00 / SC555-00138
RTB 50: Troubleshooting for image quality140
RTB 51: Manual Correction: SC819148
RTB 52: SC502-SC504 and Misdetection of paper end149
RTB 53: Manual Correction: The table of SC187153
RTB 54: SC626-01 / SC515-02154
RTB 55: Installing the CH-C1 models as a CC-CERTIFIED Machine156
RTB 56: Vertical streaks164
RTB 57: Controller Board Replacement Alert & SC842-02167
RTB 58: SC515-01168
RTB 59: SC515-02171
RTB 60: Remote Fax installation174
RTB 61: Firmware Release Note: Option IPDS178
RTB 62a: Fusing Pressure Lever Breakage179
RTB 63: SP5803-001 to 081185
RTB 65d: Update Procedure for Package Firmware204
RTB 66: Incorrect message when set the tandem tray216
RTB 67: Toner Blocking218
RTB 68: Parts Information for tandem tray end fence221
RTB 69: Detailed Self-Diagnostic Mode224
RTB 70: Brush when applying lubricant powder or yellow toner225
RTB 71: Troubleshooting for Margin adjustment229
RTB 72: White spots231
RTB 73: Image problem in size reduction mode233
RTB 74: Parts Information: Fusing unit235
RTB 75b: Original size misdetection236
RTB 76a: SC501-13239
RTB 77: Banding at 2~3mm intervals245
RTB 78: Adjustments Required for Improved Glossiness247
RTB 79: Colored spots appear at 40mm or 189mm intervals248
RTB 80: White spots with toner cores249
RTB 81: White, fish-shape stains250
RTB 82: Vertical bands of uneven image density252
RTB 83: Uneven density254
RTB 84: Banding255
RTB 85: Thin paper curls256
RTB 86: Envelopes Are Wrinkled260
RTB 87: Envelope feed problems261
RTB 88: Accordion Jams262
RTB 89: Problems pulling out the drawer unit265
RTB 90: SC516 after repeated J097267
RTB 91: Uneven glossiness269
RTB 92: Horizontal streaks271
RTB 93: Stains on the side edges of paper273
RTB 94: JAM33274
RTB 95: Duplex Invert Solenoid maintenance282
RTB 96: Installation Procedure for D135/D136283
RTB 98a: Jam 66 or Original damage317
RTB 99: Proof tray detected to be full too soon331
RTB 100: Envelopes are not fed332
RTB 101: Toner rubs off onto the fold line of stapled Booklets333
RTB 102: Roller marks334
RTB 103: D1 lever breakage339
RTB 104: Manual Correction: Punch Unit PU5000 installation343
RTB 105: Installation Procedure for the A3/11"x17" Tray Unit Type M2350
RTB 106: Installation Procedure for the Multi-Folding Unit FD4000358
RTB 107: SC202-286372
RTB 108: Manual Correction: SP5805/5806380
RTB 109: Manual Correction: SP1304418
RTB 110: Manual Correction: Paper feed unit for tray 1 replacement419
RTB 111: Manual Correction: SP5803-006423
RTB 112: Manual Correction: Jam Detection(Sensor locations)424
RTB 113: Manual Correction: Sub Hopper Unit replacement425
RTB 114: Manual Correction: Drum motor (KCMY) / Drum encoder sensor (KCMY) replacement428
RTB 115: FSM Correction: SP5801 (Clear Memory)429
RTB 116: FSM Correction: SC460432
RTB 117: Manual Correction: Notes on roller HP sensor 2 /Sensor shift HP switch replacement433
RTB 118: Manual Correction: SP5985434
RTB 119: FSM Correction: SC381/382435
RTB 120: SR4090/SR4100: Stapler unit replacement437
RTB 121: Replacement procedure for the left/right tandem trays447
RTB 122: FSM Correction: SC401449
RTB 123: Manual Correction: All PM Parts list: Main Menu450
RTB 124: FSM Correction: SP5895451
RTB 125: Manual Correction: E-22B: Startup and initial setup452
RTB 126: New brackets to prevent JAM18455
RTB 127: Engine F/W to improve waste toner bottle yield458
RTB 128: Tandem Tray does not lift-up459
RTB 129: Manual Correction: LCIT RT4030 Installation463
RTB 130: Manual Correction: Cover Interposer Tray CI4010(D711) Installation465
RTB 131a: Manual correction: PM parts settings470
RTB 132 :Manual Correction: Developer removal procedure474
RTB 133a: Wrinkles480
RTB 134: Modification of the paper exit unit and its components484
RTB 135: SC486501
RTB 136a: Drawer unit Slide Rail replacement procedure503
RTB 137: SC559-00520
RTB 139a: Jam003 (Tray 1 no-feed)522
RTB 140: New parts - Fuses on the AC drive board534
RTB 141: Manual Correction: Remote Fax installation535
RTB 142b: Dirty prints539
RTB 143: Manual Correction: Fusing IH Coil Unit545
RTB 144: Design modification of the paper exit upper guide plate components546
RTB 145: Firmware Release Note: animation548
RTB 146: Cooling Fan Unit Type M2 Installation procedure549
RTB 147: The Paper Feed Unit and Paper Transport Unit were modified584
RTB 148: Part change:Purge unit upper guide plate588
RTB 149: New optional harness for tray heater590
RTB 150a: Machine power does not turn on593
RTB 151: Manual correction Caution note on PSU replacement598
RTB 152: FSM Correction: SP1307604
RTB 153: Torn fusing belt605
RTB 154: The heating roller generates a ticking noise609
RTB 155a: Procedure for attaching the protection sheet on the tandem tray611
RTB 156a: Paper exit unit616
RTB 157: SC286-02617
RTB 158: Jam 58618
RTB 159: Manual correction: SR4110 installation procedure627
RTB 160: Manual correction: P to P correction628
RTB 161: Manual correction: the table of SP1907/SP5803629
RTB 162b: Slow printing speed/SC865630
RTB 163a: RGB streaks on ADF scans633
RTB 164: FSM Correction: SC681 table638
RTB 165: Troubleshooting drum lubricant bar early PM alert641
RTB 166: Part Change Information - Heat Roller644
RTB 167: Wrong service part label for Heat Roller647
RTB 168: SC442648
RTB 169: FSM correction – Detail of Jam Codes 19 and 96651
RTB 171: FSM correction – Addition of AC controller board fuse653
RTB 172: FSM correction655
RTB 173: Manual correction656
RTB 174: Saddle-stitch stapling for Customer Paper Size658
RTB 175: LEF/SEF ---> SEF/LEF660
RTB 176: High-pitched sound673
RTB 177: Paper Feed Sub-Unit Drum Stay674
RTB 178: Paper jam (tandem tray bent)676
RTB 179: Parts Catalog Correction: Encode on ITB677
RTB 180:SC525-01 Lock bracket is broken678
RTB 181: FSM correction: SP5061-002 Toner Near End alert message681
D149 RTBs600
- RTB 14b: Firmware Release Note: Font EXP601
- RTB 25b: Firmware Release Note: PCL Font602
- RTB 26b: Firmware Release Note: PS3 Font603
D129 RTBs16
- RTB 22c: Firmware Release Note: SG3-ND643
D255 RTBs651
- RTB 20b: Firmware Release Note: OptionSD FONT652
