Technical Bulletin PAGE: 1/4
Model: CH-C1
Date: 19-Mar-14
No.: RD135103
Subject: D1 lever breakage
Prepared by: Takeshi Toriumi
From: 1st tech Service Sect, MFP/Printer Tech Service
Classification:
Troubleshooting
Mechanical
Paper path
Product Safety
Part information
Electrical
Transmit/receive
Other ( )
Action required
Service manual revision
Retrofit information
Tier 2
SYMPTOM

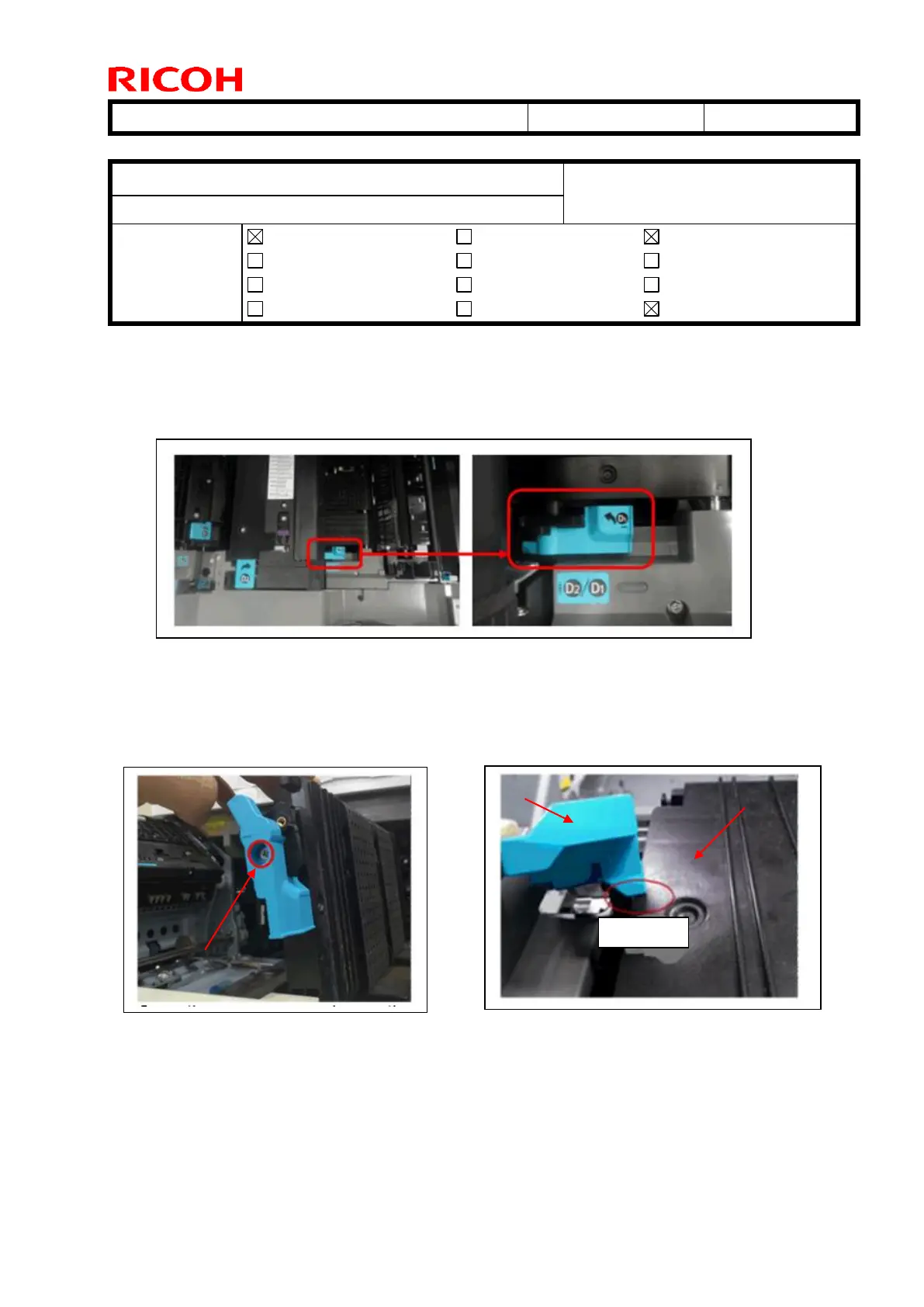

The [D1] lever (LEVER: ON-OFF: TRANSPORT BELT UNIT; P/N D1363864; circled in red below) may
break if is moved up and down 30+ times.
CAUSE
The screw [A] that secures the lever is too short, and cannot provide enough torque to keep the lever [B] in
place when the lever is moved many times. As a result, the lever comes loose, contacts the PTB unit [C],
and breaks.
[A]
[B]
[C]
