Technical Bulletin PAGE: 4/4
Model: CH-C1
Date: 19-Mar-14
No.: RD135103

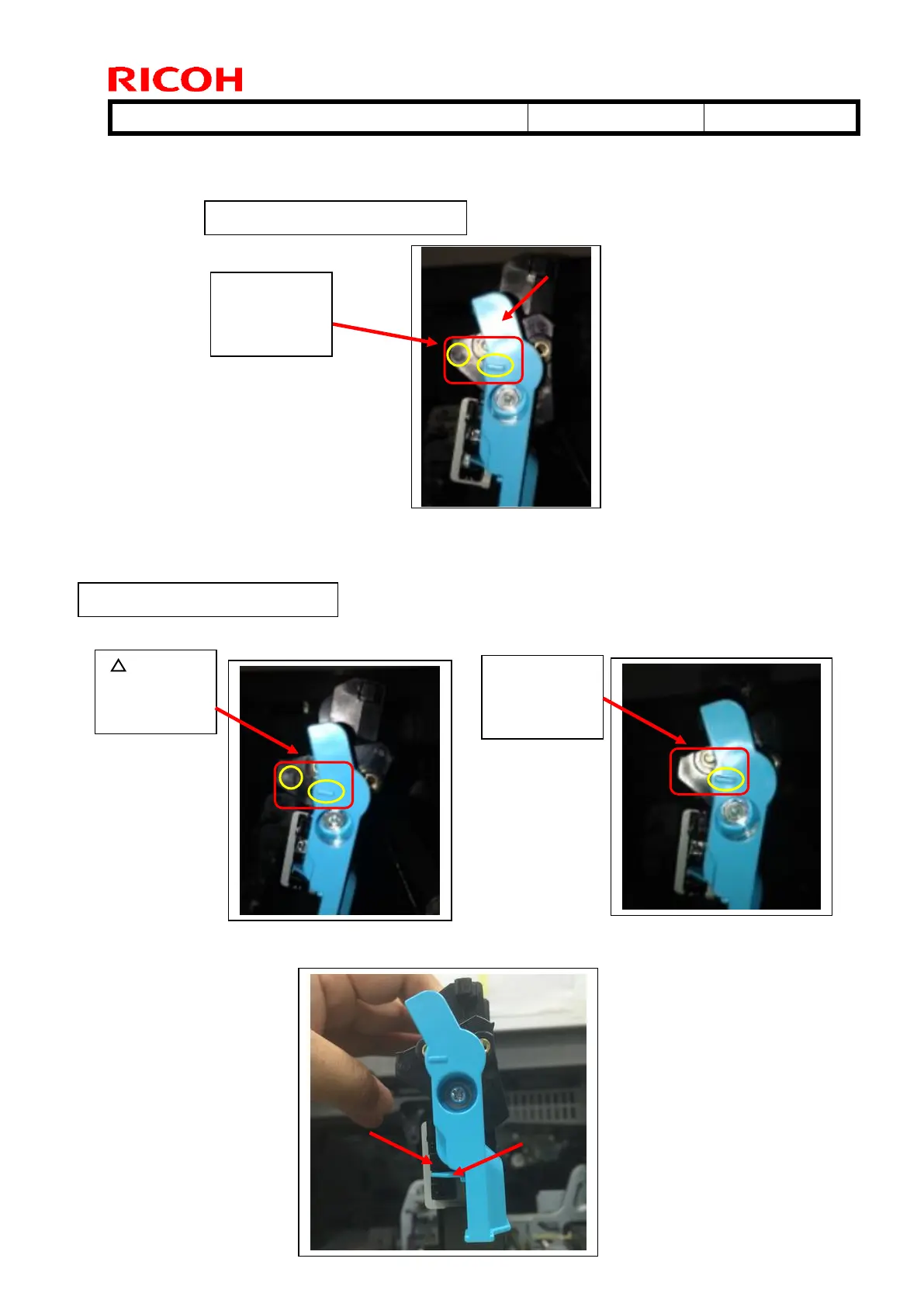

5. Attach the modified screw (P/N: D1369902) to the lever [A] in the “OK” position.
IMPORTANT: Be careful NOT to attach the lever in the “NG” positions shown below.
6. Make sure that the actuator [A] of the lever is engaged with the sensor [B] as shown.
“O” mark and
“-” mark on
the lever [A]
match.
OK (correct position)
NG (incorrect positions)
[A]
[B]
[A]
“ ” mark and
“-” mark on
the lever [A]
match.
No mark and
“-” mark on
the lever [A]
match.
