T
echnical
B
ulletin

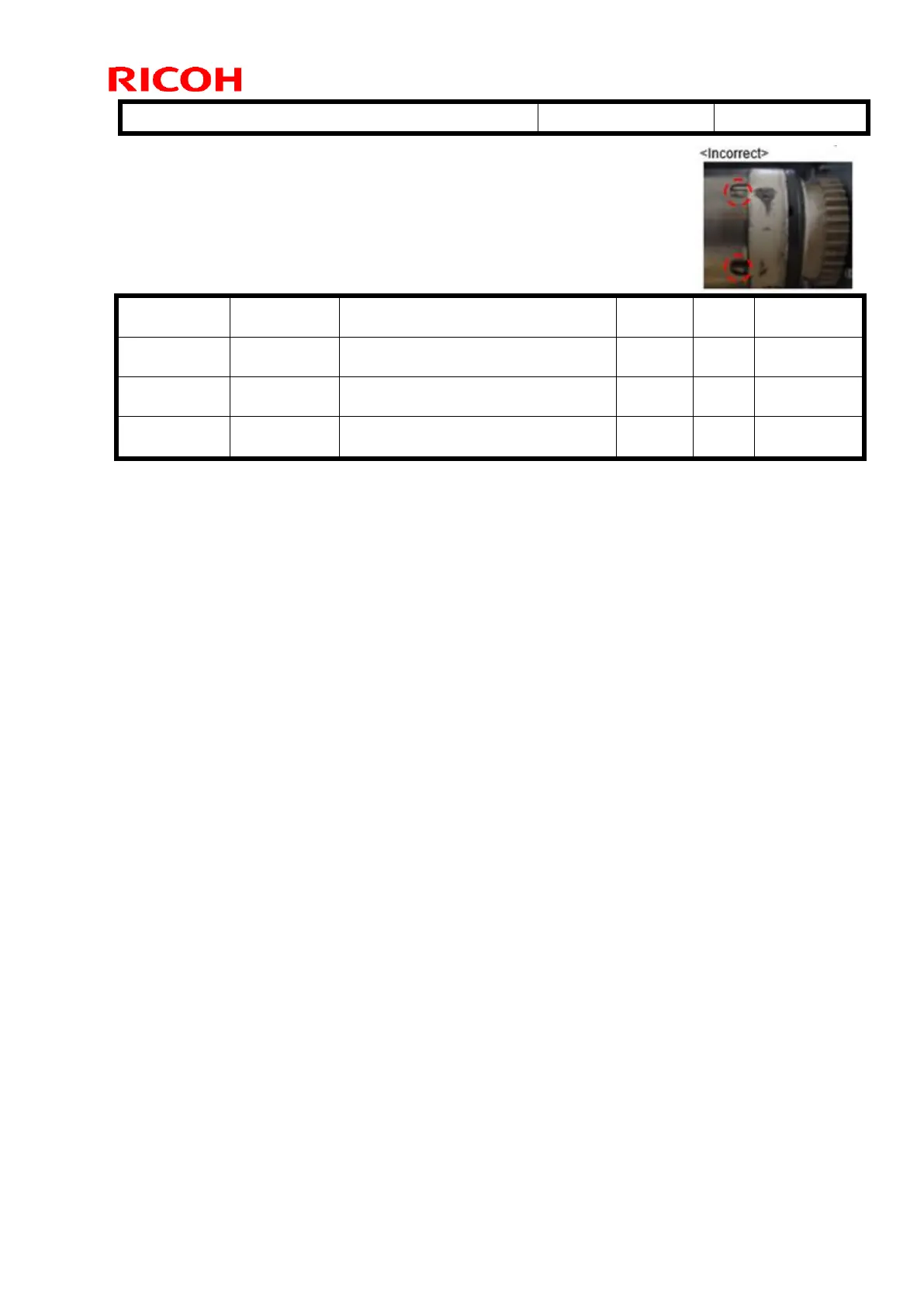

PAGE: 4/4
Model:
CH
-
C1
a
Date:
12
-Feb-
15
No
.:
RD135153
2. The flange of the heating roller was slipped into the heating roller.
Old part
number
New part
number
Description
Q’ty
Int
Note
D1364181
-
FLAT BEL
T-FUSING:
DIA75:SEA
L
1
-
For Office
(D135/D136)
D1384181
-
FLAT BEL
T-FUSING:
DIA75:SEA
L:
PRO
1
-
For Pro
(D137/D138)
D1364184
D1364450
HEAT ROL
LER:ASS'Y
1
X/O
Change
607
609
Table of Contents
RTB 4c: Firmware Release Note: Web Uapl
1
RTB 7c: Firmware Release Note: GWFCU3.8-1(WW)
2
RTB 11b: Firmware Release Note: PowerSaving Sys
3
RTB 13: Firmware Release Note: PS3
4
RTB 14b: Firmware Release Note: RPCS
5
RTB 15c: Firmware Release Note: TDCU
6
RTB 17d: Firmware Release Note: NetworkDocBox
10
RTB 19: Firmware Release Note: aics
11
RTB 20d: Firmware Release Note: MailBOX_ONTARIO-D
12
RTB 21e: Firmware Release Note: Extended JS
13
RTB 22: Firmware Release Note: Option Netware
14
RTB 23g: Firmware Release Note: browser
15
RTB 24: Replace the description for SP5507-006
17
RTB 25: Firmware Release Note: PCL Font
18
RTB 26: Streaks made by Paper Edges
19
RTB 27: Copy speed decreases when applying the Finisher SR4090/SR4100 punch option.
25
RTB 28b: Replace the procedure for “Attaching the ITB Separation Lever”
26
RTB 29b: Log-Storing Function
40
RTB 30e: Copy Tray Type M2 Installation
48
RTB 31a: Important Notice for Scanner Heater Installation
67
RTB 32: NVRAM Replacement Procedure
69
RTB 33: Lubrication after replacement
74
RTB 34: Manual Correction: BCU replacement procedure
76
RTB 35: Paper Curl
79
RTB 36: SR4090/SR4100: SP Settings
81
RTB 37: Installation Procedure for Finisher SR4090/Booklet Finisher SR4100
83
RTB 38: Installation Procedure for the Finisher SR4110 (D707)
94
RTB 39: Manual Correction: Toner Shield Glass Cleaning
105
RTB 40: LCIT RT4030 Installation
107
RTB 41: Damage on the fusing belt
109
RTB 42: Tandem Tray Lift-Up Issue
110
RTB 43: SC552-02
112
RTB 44b: Paper Jam 30/75 / Paper folding
113
RTB 45: SC525-02
124
RTB 46: JAM 97 / SC516-02
128
RTB 47: SC548-00 / Noise
131
RTB 48b: SC460
132
RTB 49b: SC569-00 / SC555-00
138
RTB 50: Troubleshooting for image quality
140
RTB 51: Manual Correction: SC819
148
RTB 52: SC502-SC504 and Misdetection of paper end
149
RTB 53: Manual Correction: The table of SC187
153
RTB 54: SC626-01 / SC515-02
154
RTB 55: Installing the CH-C1 models as a CC-CERTIFIED Machine
156
RTB 56: Vertical streaks
164
RTB 57: Controller Board Replacement Alert & SC842-02
167
RTB 58: SC515-01
168
RTB 59: SC515-02
171
RTB 60: Remote Fax installation
174
RTB 61: Firmware Release Note: Option IPDS
178
RTB 62a: Fusing Pressure Lever Breakage
179
RTB 63: SP5803-001 to 081
185
RTB 65d: Update Procedure for Package Firmware
204
RTB 66: Incorrect message when set the tandem tray
216
RTB 67: Toner Blocking
218
RTB 68: Parts Information for tandem tray end fence
221
RTB 69: Detailed Self-Diagnostic Mode
224
RTB 70: Brush when applying lubricant powder or yellow toner
225
RTB 71: Troubleshooting for Margin adjustment
229
RTB 72: White spots
231
RTB 73: Image problem in size reduction mode
233
RTB 74: Parts Information: Fusing unit
235
RTB 75b: Original size misdetection
236
RTB 76a: SC501-13
239
RTB 77: Banding at 2~3mm intervals
245
RTB 78: Adjustments Required for Improved Glossiness
247
RTB 79: Colored spots appear at 40mm or 189mm intervals
248
RTB 80: White spots with toner cores
249
RTB 81: White, fish-shape stains
250
RTB 82: Vertical bands of uneven image density
252
RTB 83: Uneven density
254
RTB 84: Banding
255
RTB 85: Thin paper curls
256
RTB 86: Envelopes Are Wrinkled
260
RTB 87: Envelope feed problems
261
RTB 88: Accordion Jams
262
RTB 89: Problems pulling out the drawer unit
265
RTB 90: SC516 after repeated J097
267
RTB 91: Uneven glossiness
269
RTB 92: Horizontal streaks
271
RTB 93: Stains on the side edges of paper
273
RTB 94: JAM33
274
RTB 95: Duplex Invert Solenoid maintenance
282
RTB 96: Installation Procedure for D135/D136
283
RTB 98a: Jam 66 or Original damage
317
RTB 99: Proof tray detected to be full too soon
331
RTB 100: Envelopes are not fed
332
RTB 101: Toner rubs off onto the fold line of stapled Booklets
333
RTB 102: Roller marks
334
RTB 103: D1 lever breakage
339
RTB 104: Manual Correction: Punch Unit PU5000 installation
343
RTB 105: Installation Procedure for the A3/11"x17" Tray Unit Type M2
350
RTB 106: Installation Procedure for the Multi-Folding Unit FD4000
358
RTB 107: SC202-286
372
RTB 108: Manual Correction: SP5805/5806
380
RTB 109: Manual Correction: SP1304
418
RTB 110: Manual Correction: Paper feed unit for tray 1 replacement
419
RTB 111: Manual Correction: SP5803-006
423
RTB 112: Manual Correction: Jam Detection(Sensor locations)
424
RTB 113: Manual Correction: Sub Hopper Unit replacement
425
RTB 114: Manual Correction: Drum motor (KCMY) / Drum encoder sensor (KCMY) replacement
428
RTB 115: FSM Correction: SP5801 (Clear Memory)
429
RTB 116: FSM Correction: SC460
432
RTB 117: Manual Correction: Notes on roller HP sensor 2 /Sensor shift HP switch replacement
433
RTB 118: Manual Correction: SP5985
434
RTB 119: FSM Correction: SC381/382
435
RTB 120: SR4090/SR4100: Stapler unit replacement
437
RTB 121: Replacement procedure for the left/right tandem trays
447
RTB 122: FSM Correction: SC401
449
RTB 123: Manual Correction: All PM Parts list: Main Menu
450
RTB 124: FSM Correction: SP5895
451
RTB 125: Manual Correction: E-22B: Startup and initial setup
452
RTB 126: New brackets to prevent JAM18
455
RTB 127: Engine F/W to improve waste toner bottle yield
458
RTB 128: Tandem Tray does not lift-up
459
RTB 129: Manual Correction: LCIT RT4030 Installation
463
RTB 130: Manual Correction: Cover Interposer Tray CI4010(D711) Installation
465
RTB 131a: Manual correction: PM parts settings
470
RTB 132 :Manual Correction: Developer removal procedure
474
RTB 133a: Wrinkles
480
RTB 134: Modification of the paper exit unit and its components
484
RTB 135: SC486
501
RTB 136a: Drawer unit Slide Rail replacement procedure
503
RTB 137: SC559-00
520
RTB 139a: Jam003 (Tray 1 no-feed)
522
RTB 140: New parts - Fuses on the AC drive board
534
RTB 141: Manual Correction: Remote Fax installation
535
RTB 142b: Dirty prints
539
RTB 143: Manual Correction: Fusing IH Coil Unit
545
RTB 144: Design modification of the paper exit upper guide plate components
546
RTB 145: Firmware Release Note: animation
548
RTB 146: Cooling Fan Unit Type M2 Installation procedure
549
RTB 147: The Paper Feed Unit and Paper Transport Unit were modified
584
RTB 148: Part change:Purge unit upper guide plate
588
RTB 149: New optional harness for tray heater
590
RTB 150a: Machine power does not turn on
593
RTB 151: Manual correction Caution note on PSU replacement
598
RTB 152: FSM Correction: SP1307
604
RTB 153: Torn fusing belt
605
RTB 154: The heating roller generates a ticking noise
609
RTB 155a: Procedure for attaching the protection sheet on the tandem tray
611
RTB 156a: Paper exit unit
616
RTB 157: SC286-02
617
RTB 158: Jam 58
618
RTB 159: Manual correction: SR4110 installation procedure
627
RTB 160: Manual correction: P to P correction
628
RTB 161: Manual correction: the table of SP1907/SP5803
629
RTB 162b: Slow printing speed/SC865
630
RTB 163a: RGB streaks on ADF scans
633
RTB 164: FSM Correction: SC681 table
638
RTB 165: Troubleshooting drum lubricant bar early PM alert
641
RTB 166: Part Change Information - Heat Roller
644
RTB 167: Wrong service part label for Heat Roller
647
RTB 168: SC442
648
RTB 169: FSM correction – Detail of Jam Codes 19 and 96
651
RTB 171: FSM correction – Addition of AC controller board fuse
653
RTB 172: FSM correction
655
RTB 173: Manual correction
656
RTB 174: Saddle-stitch stapling for Customer Paper Size
658
RTB 175: LEF/SEF ---> SEF/LEF
660
RTB 176: High-pitched sound
673
RTB 177: Paper Feed Sub-Unit Drum Stay
674
RTB 178: Paper jam (tandem tray bent)
676
RTB 179: Parts Catalog Correction: Encode on ITB
677
RTB 180:SC525-01 Lock bracket is broken
678
RTB 181: FSM correction: SP5061-002 Toner Near End alert message
681
D149 RTBs
600
RTB 14b: Firmware Release Note: Font EXP
601
RTB 25b: Firmware Release Note: PCL Font
602
RTB 26b: Firmware Release Note: PS3 Font
603
D129 RTBs
16
RTB 22c: Firmware Release Note: SG3-ND
643
D255 RTBs
651
RTB 20b: Firmware Release Note: OptionSD FONT
652
