8
Positions of
R
WARNING and
R
CAUTION
labels

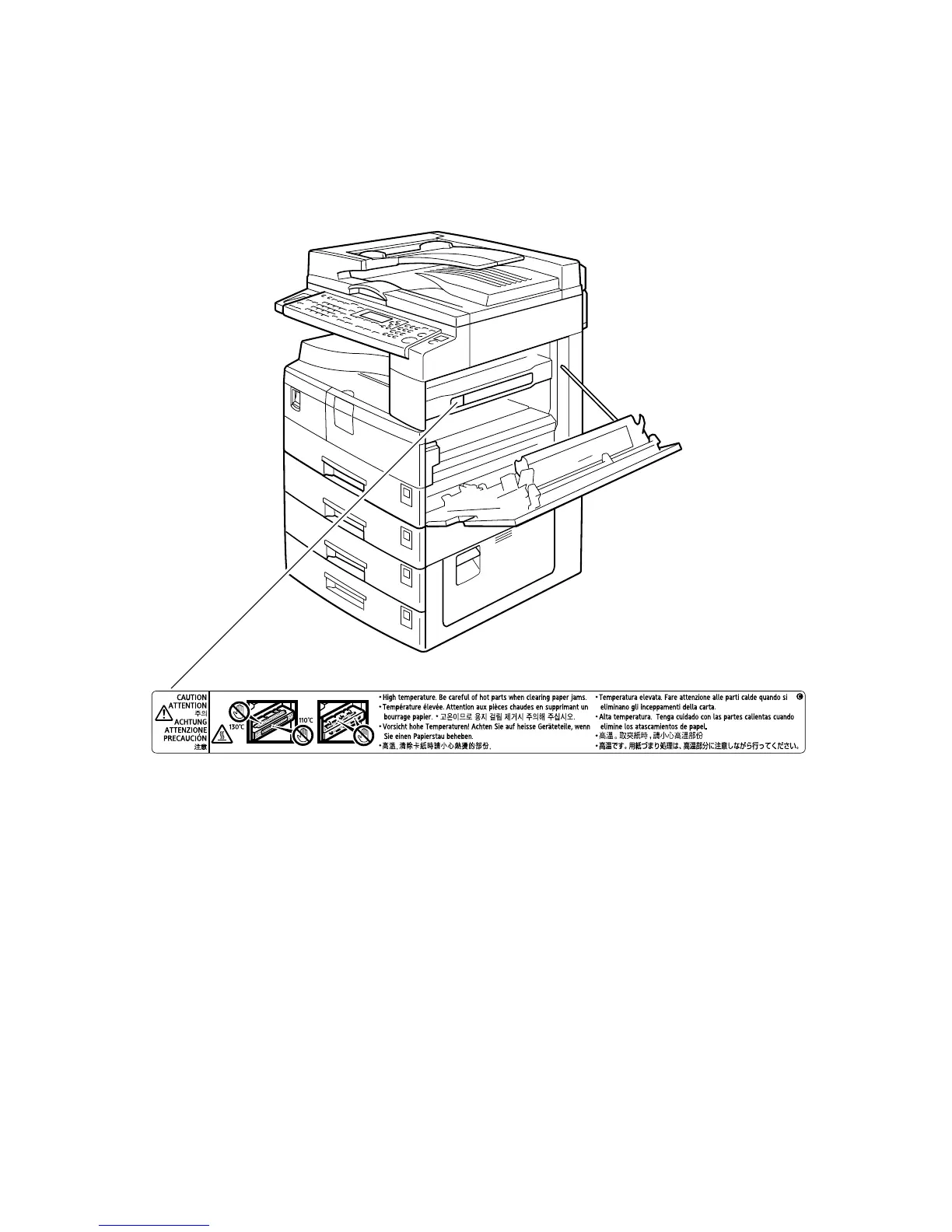

This machine has labels for
R
WARNING and
R
CAUTION at the positions
shown below. For safety, please follow
the in
structions and handle
the machine
as indicated.
High temperature. Be careful of ho
t parts when clearing paper jams.
ARB015S
