Troubleshooting
50
3

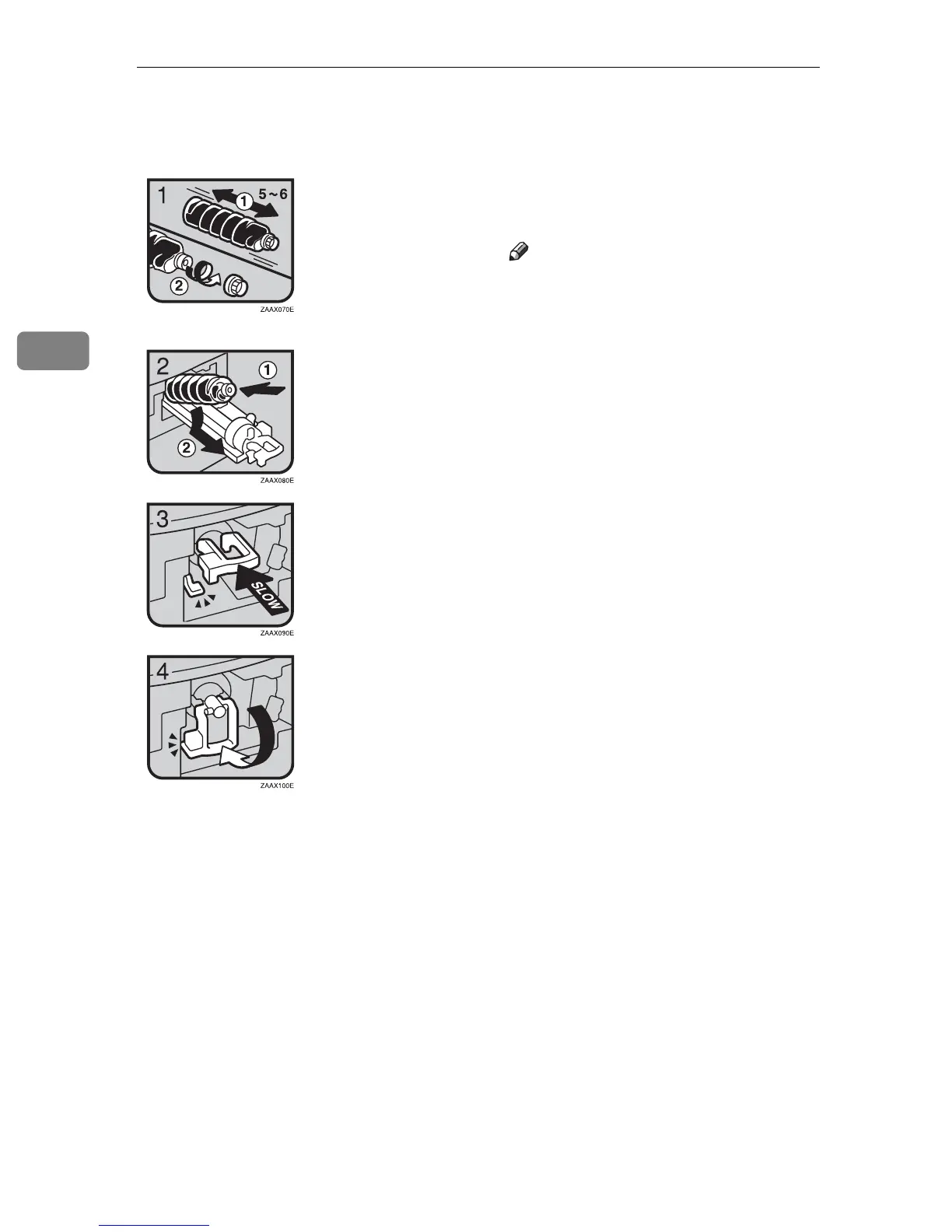

Inserting Toner
•
1: Hold the new bottle horizontally and
shake it from side to side five or six times.
2: Remove the black cap.
Note
r
Do not remove the black cap before
shaking.
r
Do not remove the inner cap.
•
3: Put the toner bottle on the holder, and
then pull its top forward.
•
4: Push in the green lever until it clicks.
•
5: Press down the green lever.
•
6: Close the machine's front cover.
687
689
