Control Panel
17
1
Control Panel

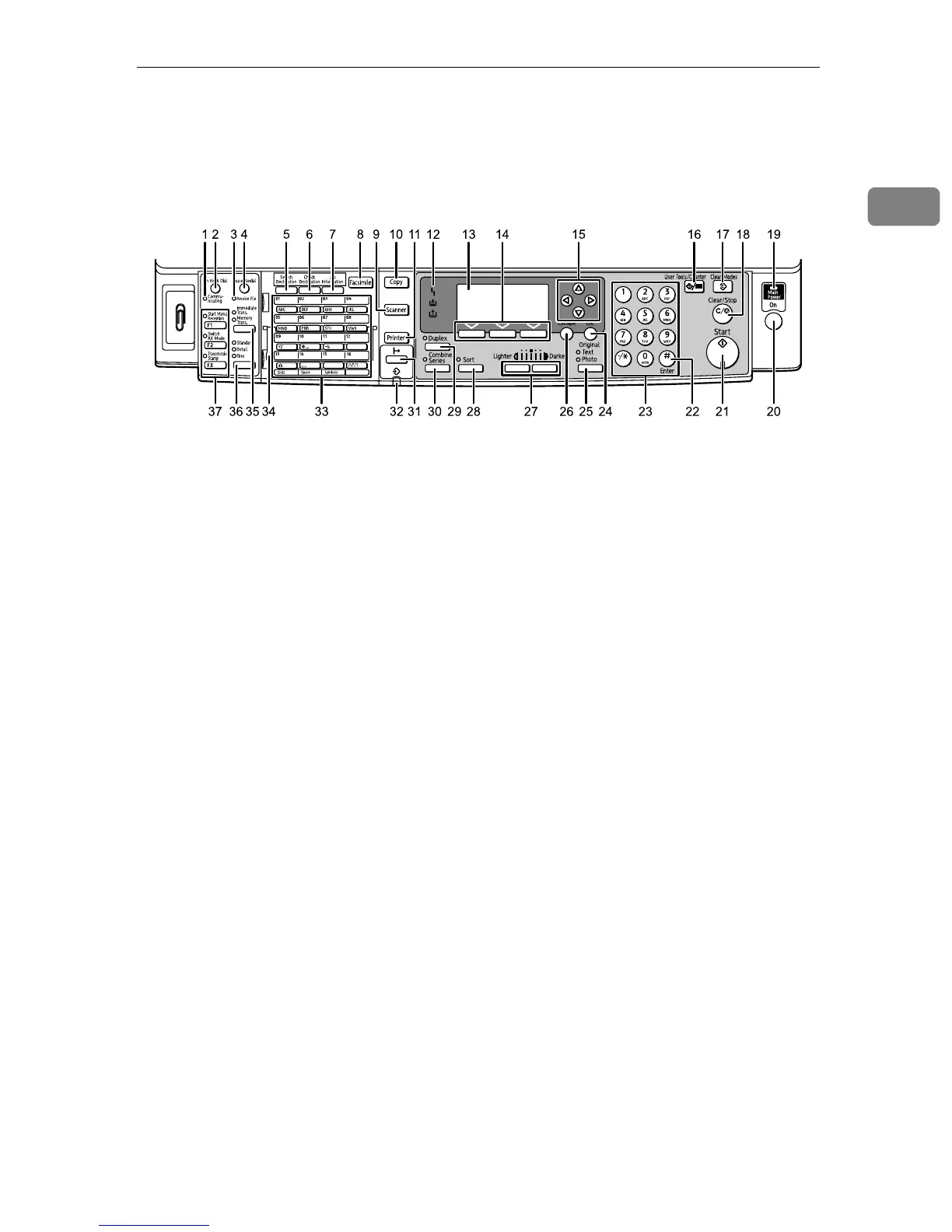

This illustration shows the control panel of a machine that has options fully installed.
1. Communicating indicator
Lights during data transmission or reception.
2. {On Hook Dial} key (facsimile
mode)
Press this to hear dial and data tones on
the fax line while dialing, as if the hand-
set were off the hook. For details, see “On
Hook Dial”, Facsimile Reference.
3. Receive File indicator (facsimile
mode)
Remains lit when fax memory receives a
file. Flashes for Memory Lock File.
See “Substitute Reception”, Facsimile
Reference.
4. {Pause/Redial} key (facsimile
mode)
• Pause: Press to insert a pause in a fax
dialing sequence. You cannot insert a
pause at the beginning of a sequence.
The pause is indicated by “-”. For de-
tails, see “Entering a pause”, Facsimile
Reference.
• Redial: Press this to select a recently-
dialed destination. For details, see
“Redial”, Facsimile Reference.
5. {Search Destination} key (scanner
and facsimile mode)
Press to search for a destination regis-
tered in the destination list.
6. {Check Destination} key (scanner
and facsimile mode)
Press to check the specified destination.
7. {Job Information} key (scanner and
facsimile mode)
Press to obtain status information on
transmitted data.
8. {Facsimile} key
Press to activate the facsimile function.
See Facsimile Reference.
9. {Scanner} key
Press to activate the scanner function. See
Scanner Reference.
10. {Copy} key
Press to activate the copy function. See
Copy Reference.
11. {Printer} key
Press to activate the printer function. See
Printer Reference.
12. Indicators
Display errors and machine status.
h: Error indicator. See Network Guide
or “Clearing Misfeeds”, Troubleshooting.
B:
Load Paper indicator. See Troubleshooting.
D:
Add Toner indicator. See Troubleshooting.
13. Display panel
Displays operational status and messag-
es. See “Display”.
ARB035S
