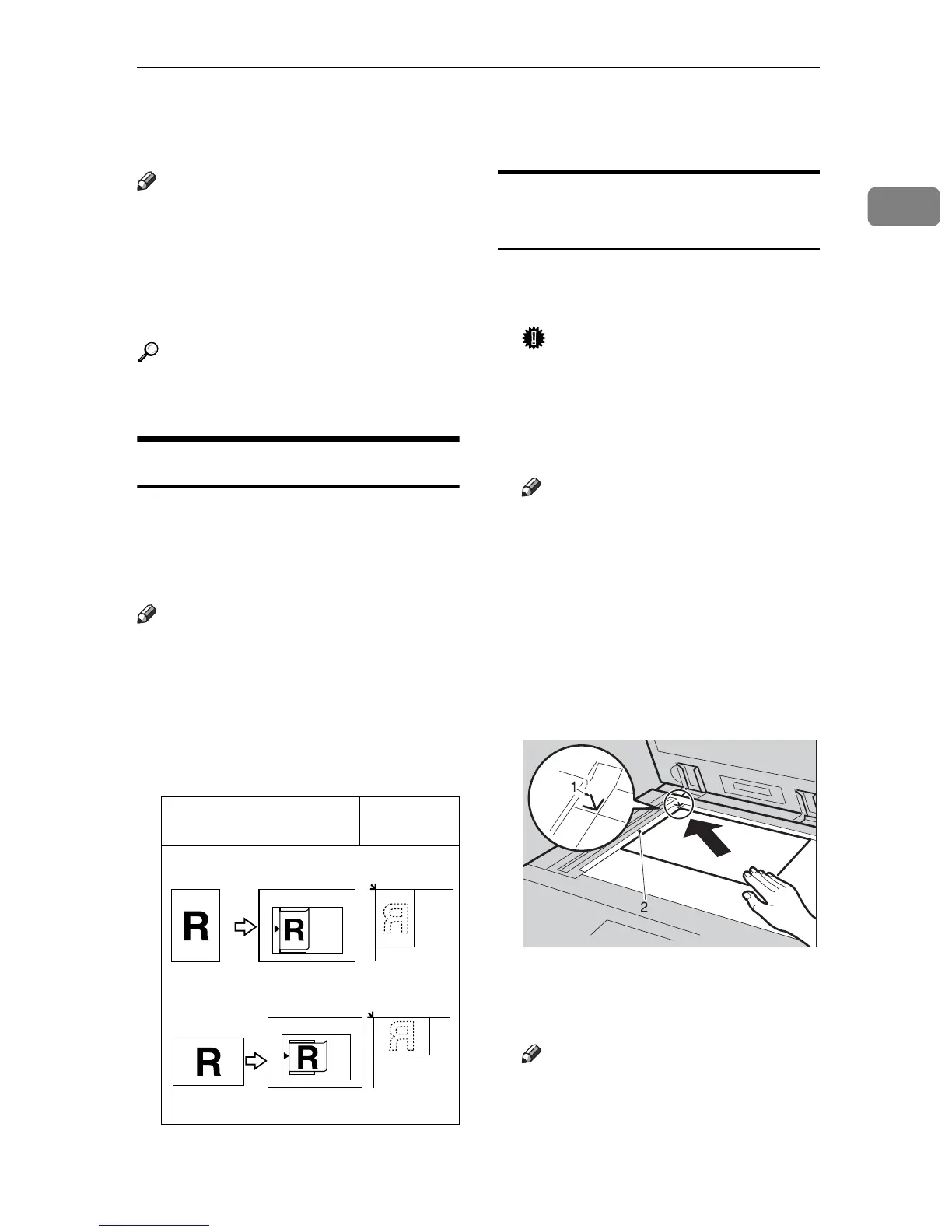

Placing Originals
19
1
Placing Originals
Note
r Take care to place originals only af-
ter any correction fluid and ink has
completely dried. Not taking this
precaution could cause marks on
the exposure glass that will be cop-
ied onto paper.
Reference
For original sizes you can set, see
p.15 “Originals” .
Original Orientation
You can set the original orientation in
the following ways.
This function is useful for copying
torn or large originals.
Note
r Originals should normally be
aligned to the rear left corner.
However, some copy functions
may produce different results de-
pending on the orientation of the
originals. For details, see the expla-
nations of each function.
Placing Originals on the
Exposure Glass
A Lift the exposure glass cover,
ADF or ARDF.
Important
r Do not lift the exposure glass
cover, ADF or ARDF forcefully.
If you do, the ADF or ARDF
cover might open or be dam-
aged.
Note
r Be sure to lift the exposure glass
cover, ADF or ARDF by more
than 30°. Otherwise, the size of
the original might not be detect-
ed correctly.
B Place the original face down on
the exposure glass. It should be
aligned with the rear left corner.
1. Positioning mark
2. Left scale
Note
r Start with the first page to be
copied.
C Lower the exposure glass cover,
ADF or ARDF.
Originals ADF or
ARDF
Exposure
glass
set11EE
set23EE
AAI025S
