5. Ventilation holes
Prevents overheating. Do not obstruct
the ventilation holes by placing objects
near them or leaning things against them.
If the machine overheats, a fault might
occur.
6. Main power switch
If the machine is not powered on after
pressing the operation switch, check that
the main power switch is turned on. If it
is off, turn it on.
7. Main power indicator
Lights when the main power switch is
turned on, and goes off when the switch
is turned off.
8. Operation switch
Press to turn the power on (the operation
switch indicator lights). To turn the pow-
er off, press again (the operation switch
indicator goes off).
9. Control panel
See p.17 “Control Panel”.
10. Front cover
Open to access the inside of the machine.
11. Paper tray
Load paper here.
12. Paper tray unit (optional)
See p.15 “External Options”.
Note
❒ When paper larger than A3 is deliv-
ered, release the 1 bin tray stand, and
then pull out the tray extension.
1. Bypass tray
Use to copy or print onto OHP transpar-
encies, adhesive labels, translucent pa-
per, envelopes, and custom size paper.
2. Right cover
Open this cover to remove jammed paper
fed from the paper tray.
3. Lower right cover (Type 2 only)
Open this cover to remove jammed paper
fed from the paper tray unit.
4. Bottom right cover
Open this cover to remove jammed paper
fed from the optional paper tray unit.
Note
❒ This tray is for reversing paper when
using the duplex function (Type 2 only).
Do not pull the paper out from here.

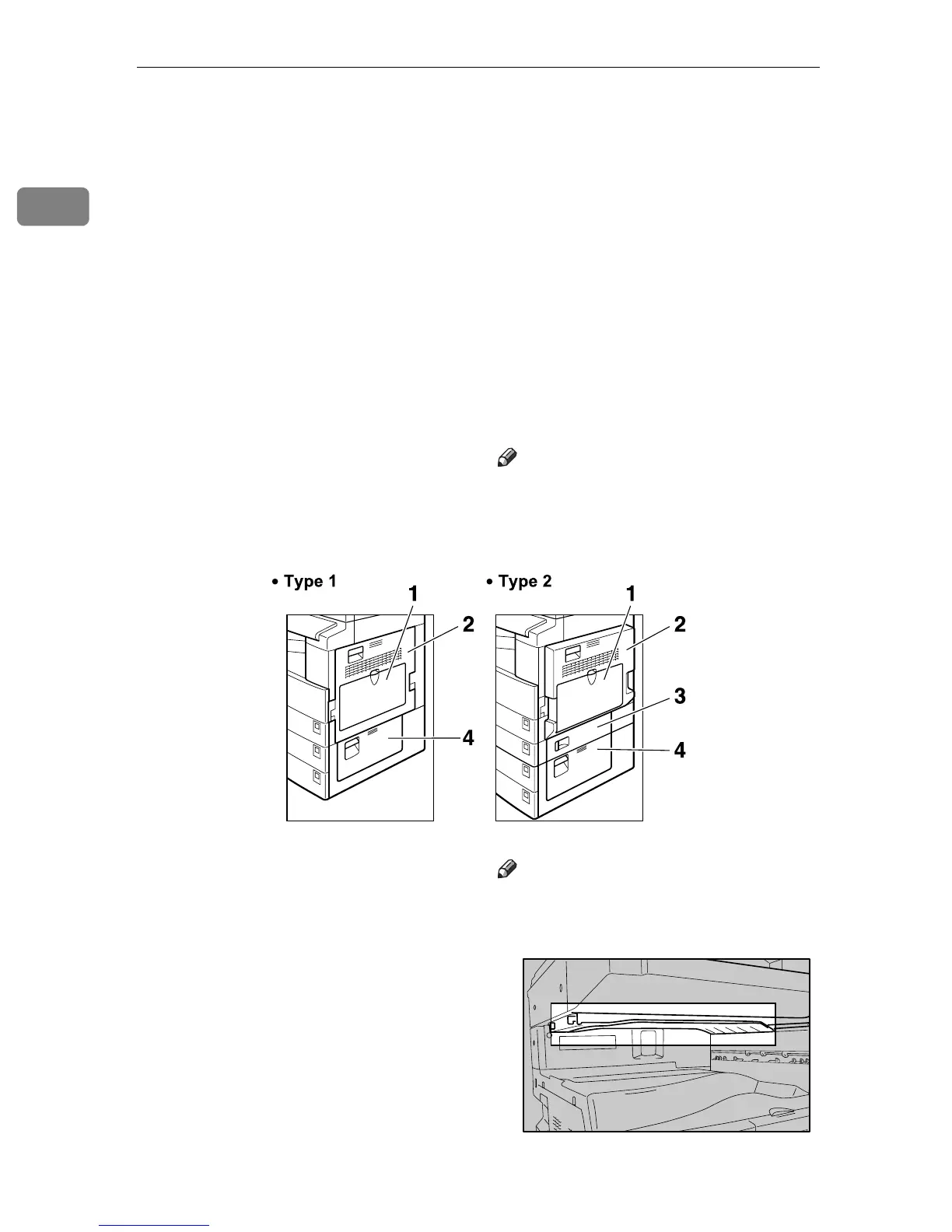

ARB012S
ARB013S
