Siemens SINAMICS V20 User Manual

Commissioning via the built-in BOP
5.6 Function commissioning
SINAMICS V20 Converter
Operating Instructions, 10/2019, A5E34559884-012
105

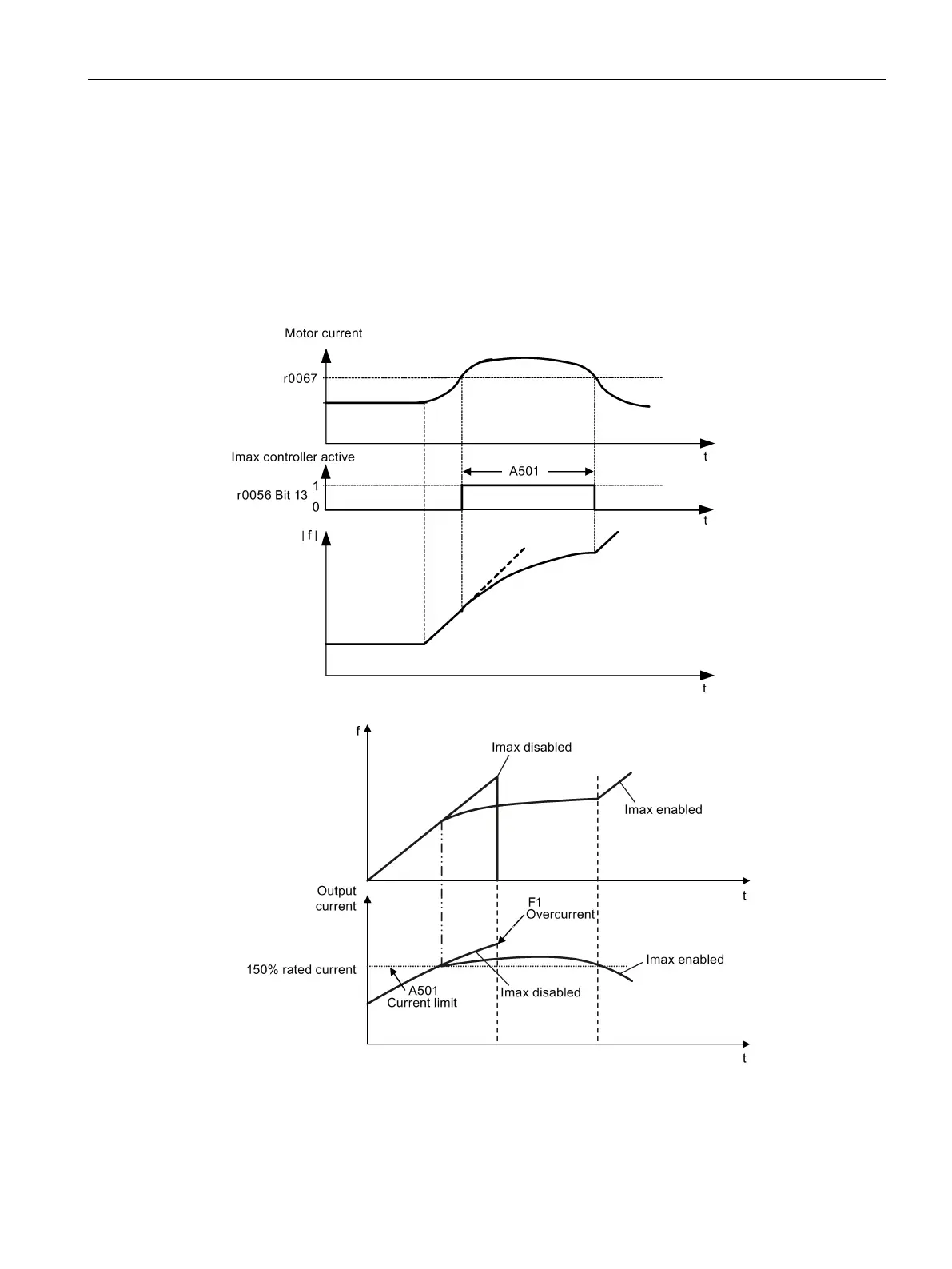

5.6.2.7 Setting the Imax controller
Functionality
If ramp-up time is too short, the converter may display the alarm A501 which means the
output current is too high. The Imax controller reduces converter current if the output current
exceeds the maximum output current limit (r0067). This is achieved by reducing the
converter's output frequency or output voltage.

Siemens SINAMICS V20 Specifications

General

Power Range	0.12 kW to 30 kW
Overload Capacity	150% for 60 seconds
Protection Class	IP20
Storage Temperature Range	-40°C to +70°C
Altitude	Up to 1000 m without derating
Input Voltage	3AC 380 V to 480 V
Output Voltage	0 V to Input Voltage
Control Modes	V/f control
Ambient Temperature Range	-10°C to +60°C
Relative Humidity	5% to 95%, non-condensing
Communication Interfaces	Modbus RTU
Braking Resistor	Optional external
