Commissioning via the built-in BOP
5.1 The built-in Basic Operator Panel (BOP)
SINAMICS V20 Converter
60 Operating Instructions, 10/2019, A5E34559884-012
5.1.5 Screen displays

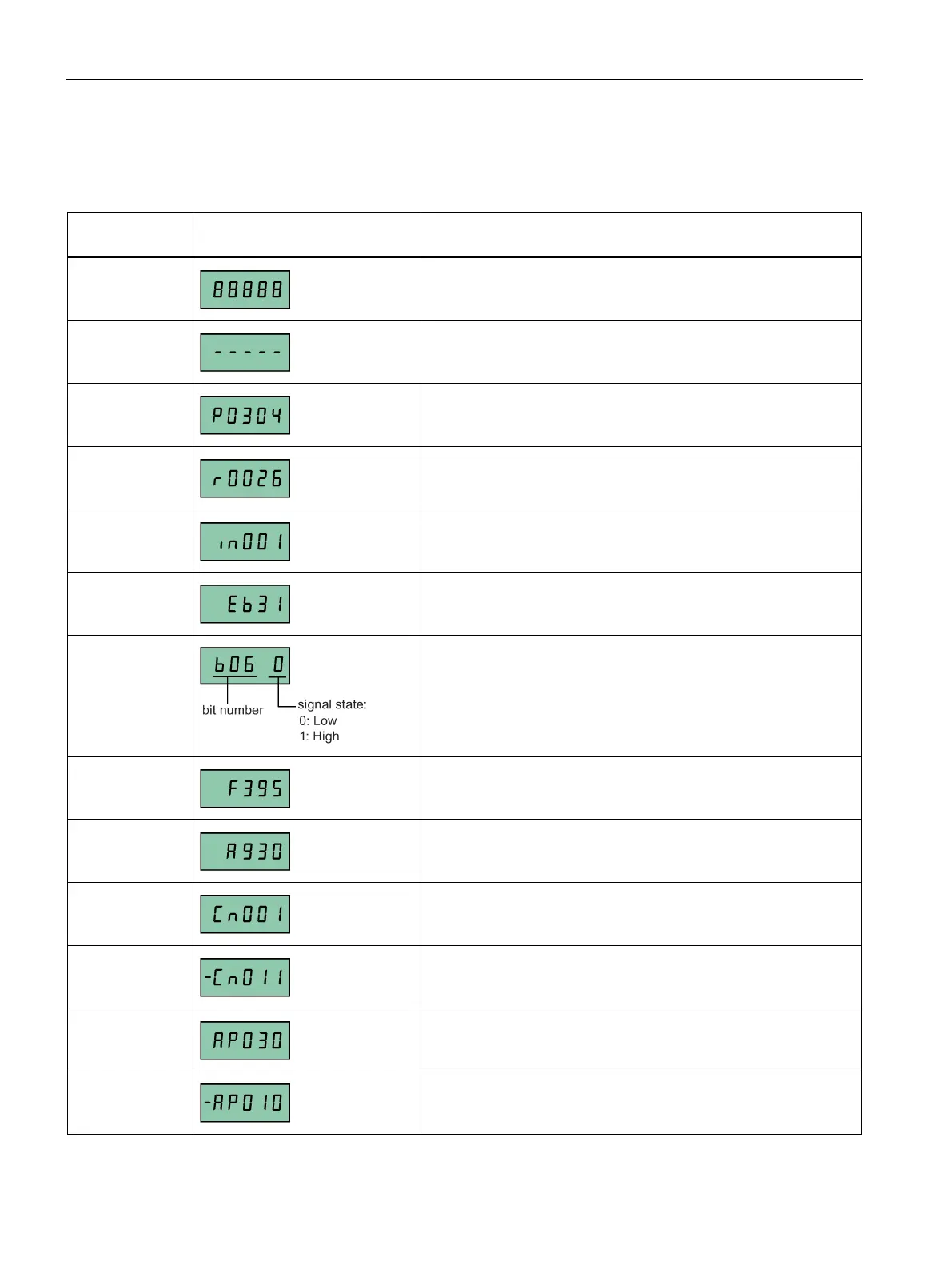

The following two tables show you basic screen displays:
Screen infor-
mation
Display
Meaning
"8 8 8 8 8"
Converter is busy with internal data processing.
"- - - - -"
Action not completed or not possible
"Pxxxx"
Writable parameter
"rxxxx"
Read-only parameter
"inxxx"
Indexed parameter
Hexadecimal
number
Parameter value in hex format
"bxx x"
Parameter value in bit format
"Fxxx"
Fault code
"Axxx"
Alarm code
"Cnxxx"
Settable connection macro
"-Cnxxx"
Current selected connection macro
"APxxx"
Settable application macro
"-APxxx"
Current selected application macro

Siemens SINAMICS V20 Specifications

General

Power Range	0.12 kW to 30 kW
Overload Capacity	150% for 60 seconds
Protection Class	IP20
Storage Temperature Range	-40°C to +70°C
Altitude	Up to 1000 m without derating
Input Voltage	3AC 380 V to 480 V
Output Voltage	0 V to Input Voltage
Control Modes	V/f control
Ambient Temperature Range	-10°C to +60°C
Relative Humidity	5% to 95%, non-condensing
Communication Interfaces	Modbus RTU
Braking Resistor	Optional external
