Siemens SINAMICS V20 User Manual

Options and spare parts
B.1 Options
SINAMICS V20 Converter
Operating Instructions, 10/2019, A5E34559884-012
397
Frame size
Converter power rating
Recommended RCCB article number
1)
RCCB Type A
30 mA
RCCB Type A
100 mA
RCCB Type A(k)
30 mA
2)
RCCB Type
B(k) 30 mA
3)
RCCB Type
B(k) 300 mA
FSD
7.5 kW
-
-
-
5SM3344-4
5SM3644-4
11 kW
- - - 5SM3346-4 5SM3646-4
15 kW
FSE
18.5 kW
-
-
-
-
5SM3646-4
22 kW
-
-
-
-
5SM3647-4
Single phase AC 230 V converters
FSAA/FSAB
0.12 kW to 0.75 kW
5SM3311-6
-
5SM3312-6KL01
5SM3321-4
5SM3621-4
FSAC
1.1 kW
5SM3312-6
5SM3412-6
5SM3322-4
5SM3622-4
1.5 kW
5SM3314-6 5SM3414-6 5SM3314-6KL01 5SM3324-4 5SM3624-4
FSAD
2.2 kW
3 kW
5SM3316-6
5SM3416-6
5SM3316-6KL01
5SM3326-4
5SM3626-4
FSC
2.2 kW
5SM3314-6
-
5SM3314-6KL01
5SM3324-4
5SM3624-4
3 kW
5SM3316-6
5SM3316-6KL01
5SM3326-4
5SM3626-4
1)
You can select commercially available 5SM3 series RCCBs (as given in the table) or equivalent.
2)
Letter "k" in the RCCB type names indicates RCCB types with time delay.
3)
SINAMICS V20 three phase AC 400 V converters (filtered) FSB to FSD cannot be operated on a type B(k) 30 mA
RCCB.

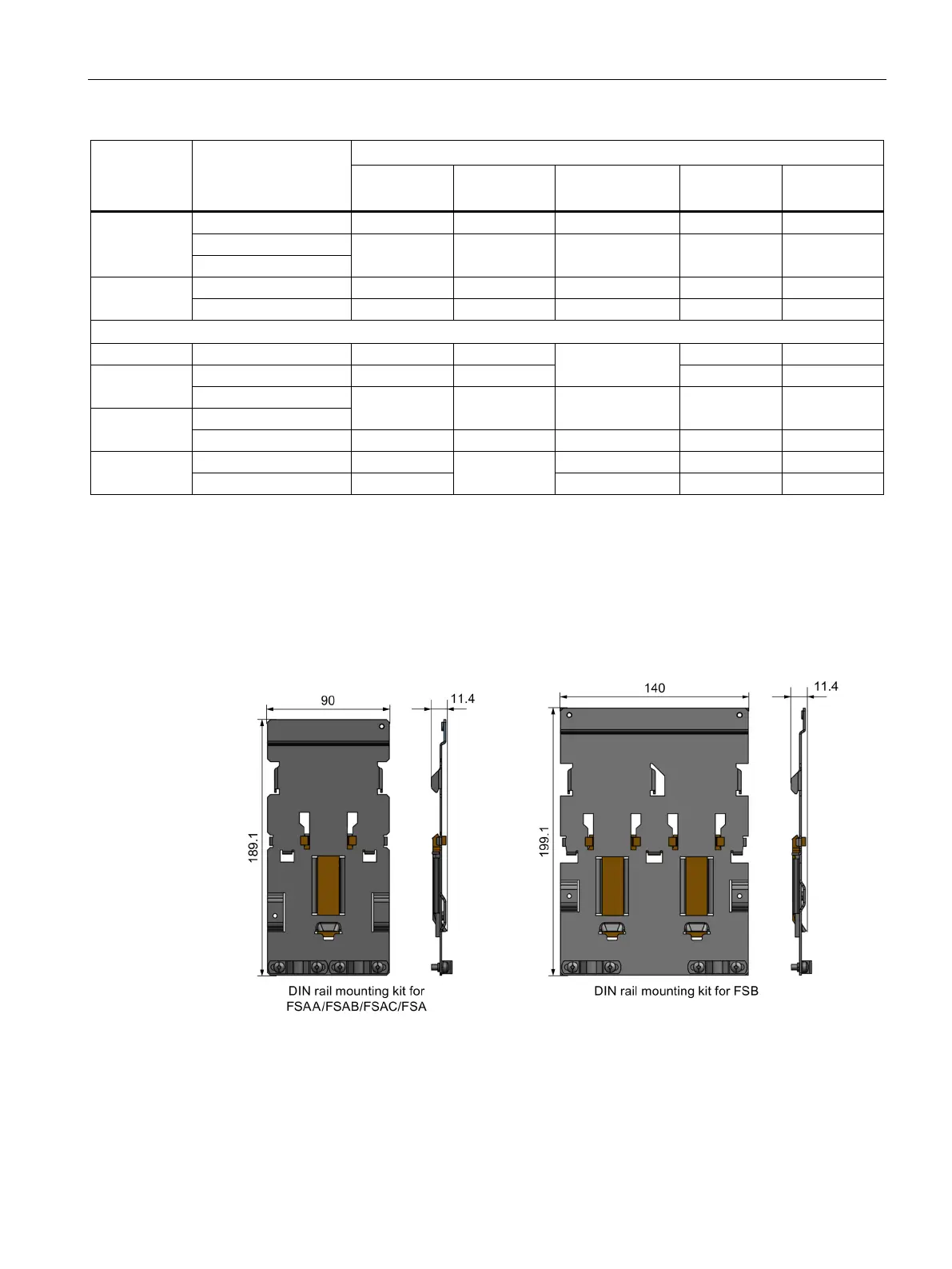

B.1.12 DIN rail mounting kits (only for FSAA, AB, AC, A, and B)
Article numbers:
● 6SL3261-1BA00-0AA0 (for frame size AA/AB/AC/A)
● 6SL3261-1BB00-0AA0 (for frame size B)

Siemens SINAMICS V20 Specifications

General

Power Range	0.12 kW to 30 kW
Overload Capacity	150% for 60 seconds
Protection Class	IP20
Storage Temperature Range	-40°C to +70°C
Altitude	Up to 1000 m without derating
Input Voltage	3AC 380 V to 480 V
Output Voltage	0 V to Input Voltage
Control Modes	V/f control
Ambient Temperature Range	-10°C to +60°C
Relative Humidity	5% to 95%, non-condensing
Communication Interfaces	Modbus RTU
Braking Resistor	Optional external
