Options and spare parts
B.1 Options
SINAMICS V20 Converter
398 Operating Instructions, 10/2019, A5E34559884-012
B.1.13 Migration mounting kit for FSAA ... FSAD
Article numbers:
● 6SL3266-1ER00-0VA0 (for frame size AA/AB)
● 6SL3266-1EB00-0VA0 (for frame size AC)
● 6SL3266-1EV00-0VA0 (for frame size AD)
Functionality
As frame size FSAA/FSAB has smaller outline dimensions, this migration mounting kit is
supplied for easy installation of frame size AA/AB converters to the G110 control cabinet or
DIN rail. If the holes on your control cabinet were drilled to match the frame size A, you can
drill additional holes according to the outline dimensions of FSAA/FSAB, or use this option
for installation.
Frame size FSAC can be directly installed to an FSA DIN rail mounting kit. You can also use
the migration mounting kit for FSAC to install the FSAC to an FSB DIN rail mounting kit. If
the holes on your control cabinet were drilled to match the frame size B, you can drill
additional holes according to the outline dimensions of FSAC, or use this option for an FSAC
converter.
If the holes on your control cabinet were drilled to match the frame size C, you can drill
additional holes according to the outline dimensions of FSAD, or use this option for
installation.

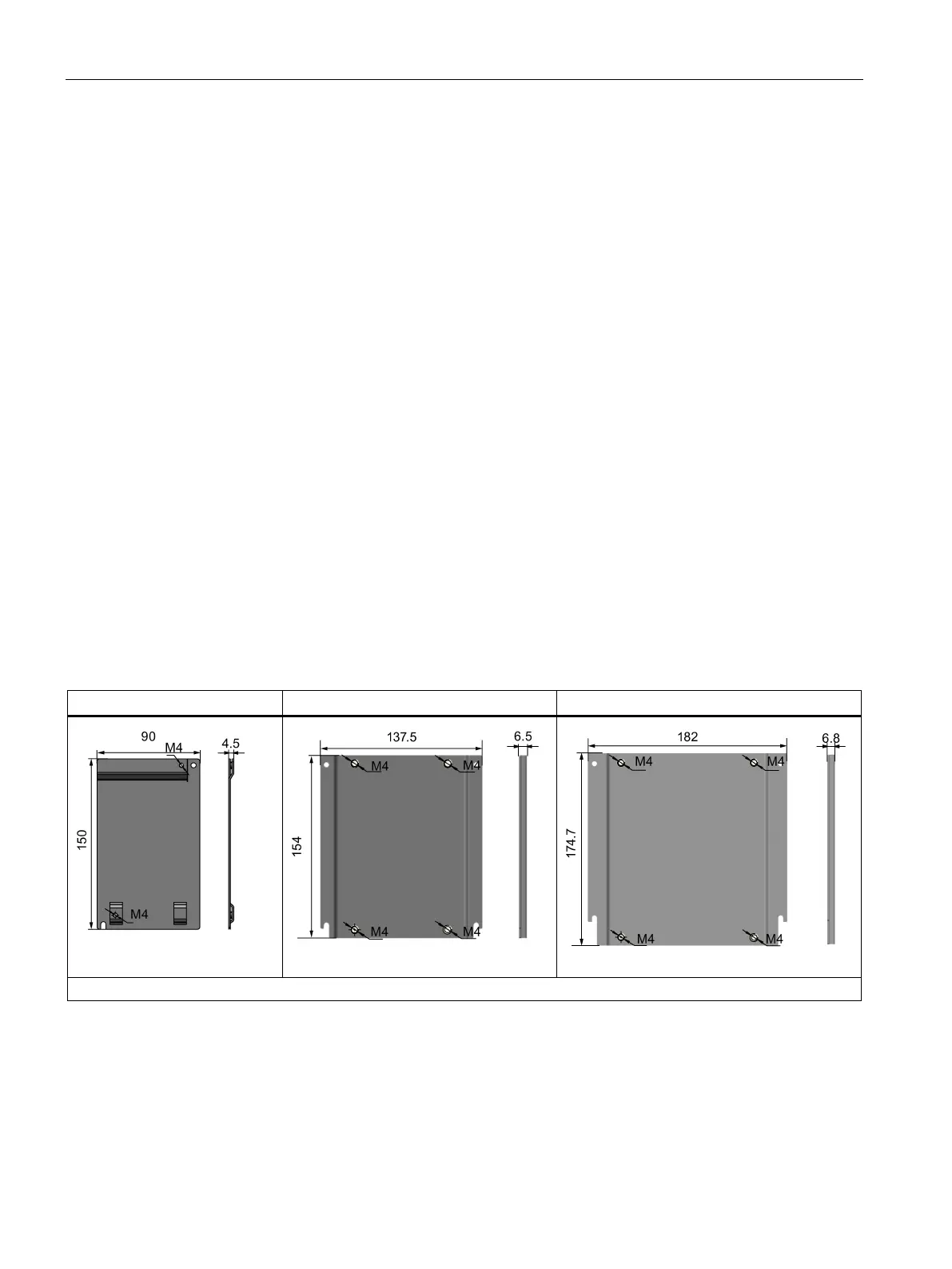

Outline dimensions (mm)
2 × M4 screws
4 × M4 screws
Maximum tightening torque: 2.0 Nm; screw length: 6 mm ... 10 mm
