Siemens SINAMICS V20 User Manual

Commissioning via the built-in BOP
5.5 Quick commissioning
SINAMICS V20 Converter
64 Operating Instructions, 10/2019, A5E34559884-012

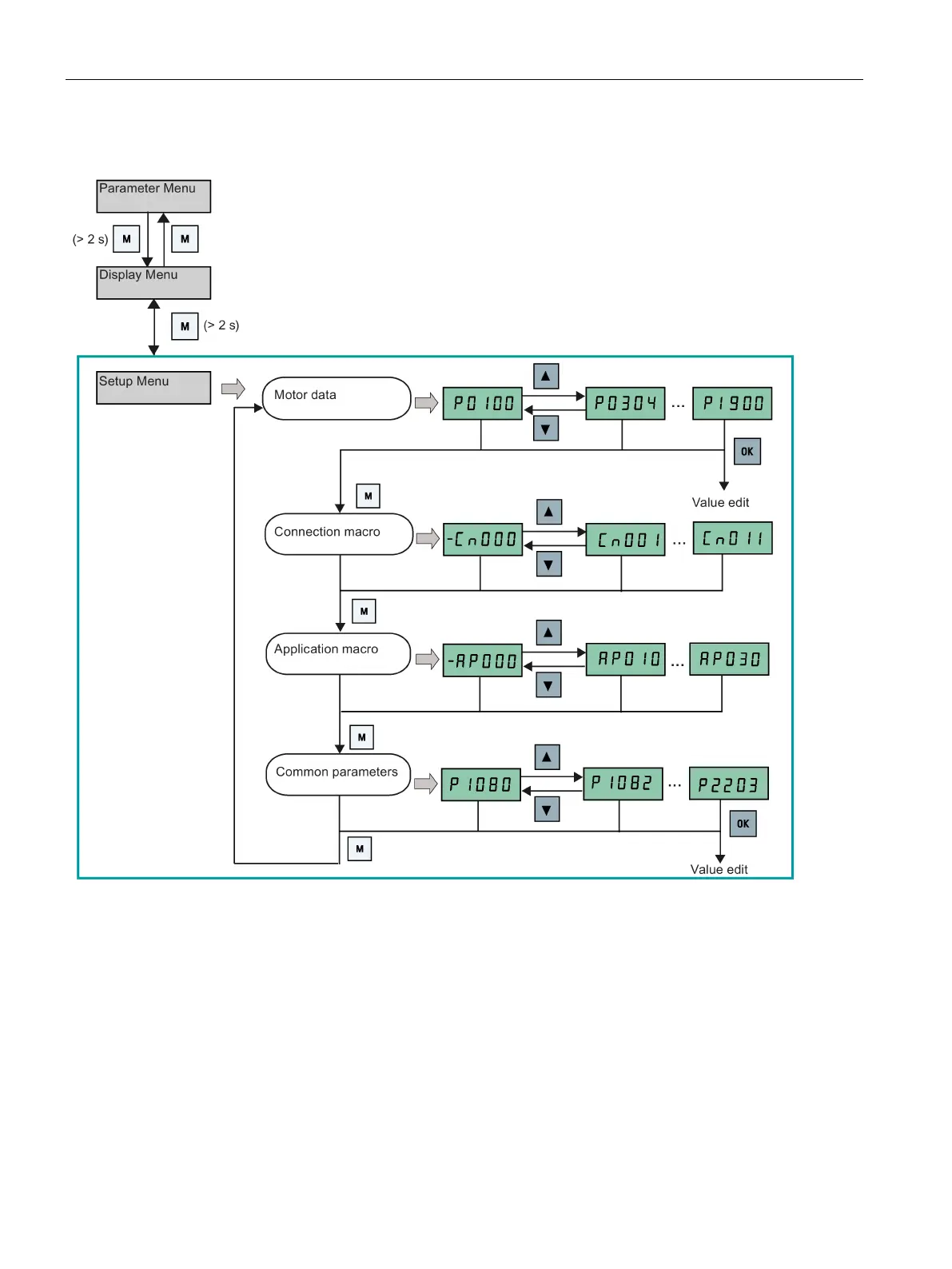

Menu structure
5.5.1.2 Setting motor data
Functionality
This menu is designed for easy setup of nominal motor nameplate data.
Text menu
If you set P8553 to 1, parameter numbers in this menu are replaced with short text.

Siemens SINAMICS V20 Specifications

General

Power Range	0.12 kW to 30 kW
Overload Capacity	150% for 60 seconds
Protection Class	IP20
Storage Temperature Range	-40°C to +70°C
Altitude	Up to 1000 m without derating
Input Voltage	3AC 380 V to 480 V
Output Voltage	0 V to Input Voltage
Control Modes	V/f control
Ambient Temperature Range	-10°C to +60°C
Relative Humidity	5% to 95%, non-condensing
Communication Interfaces	Modbus RTU
Braking Resistor	Optional external
