Siemens SINAMICS V20 User Manual

Commissioning via the SINAMICS V20 Smart Access
6.8 Setting parameters
SINAMICS V20 Converter
Operating Instructions, 10/2019, A5E34559884-012
155
6.8 Setting parameters

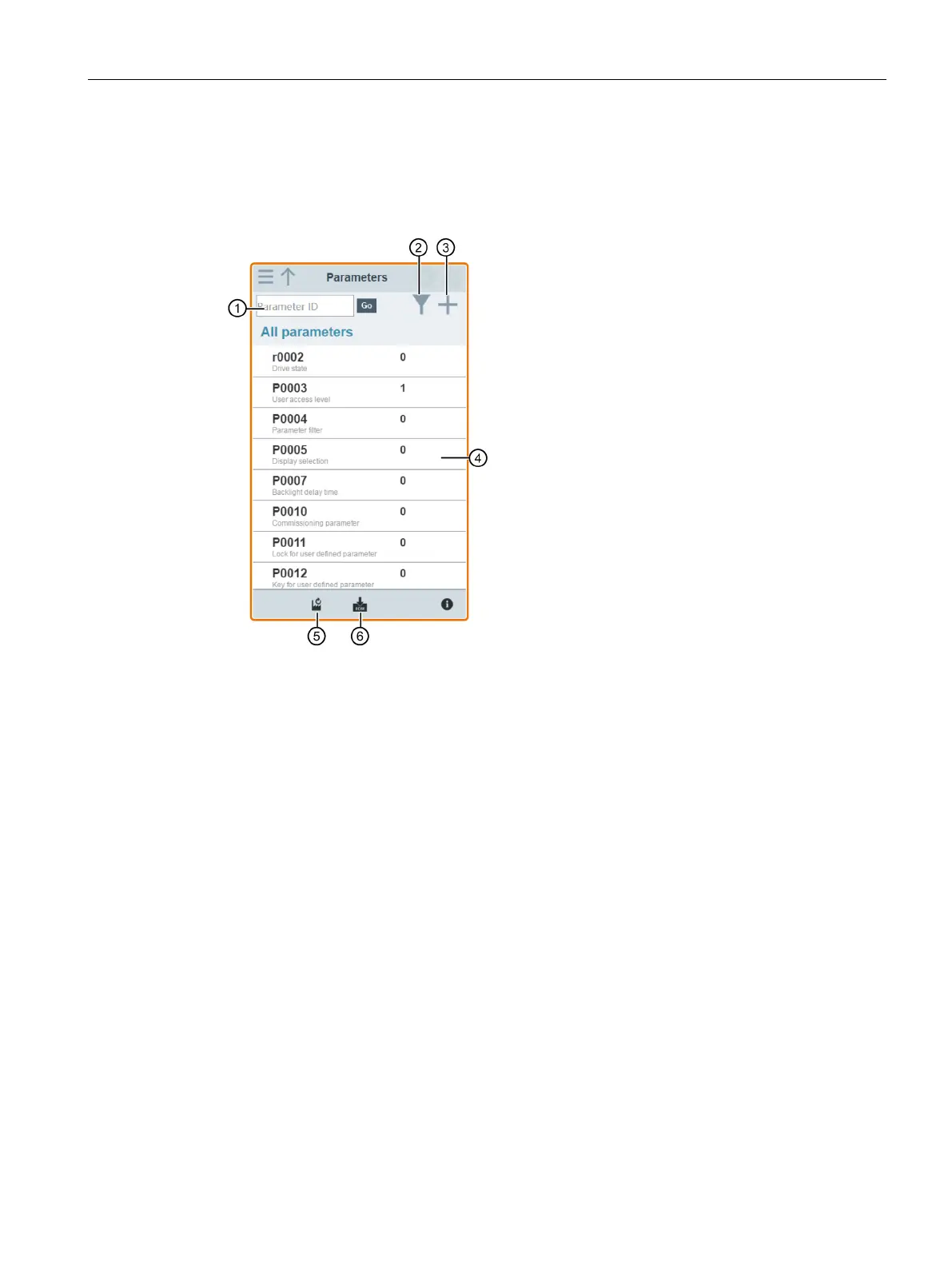

You can open the parameters Web page by selecting the parameters icon from either the
home page or the navigation sidebar.
①
Searching parameters
④
Editing parameters
②
Filtering parameters by group
⑤
Resetting parameters
③
Specifying user
-defined parameters
⑥
Saving parameters

Siemens SINAMICS V20 Specifications

General

Power Range	0.12 kW to 30 kW
Overload Capacity	150% for 60 seconds
Protection Class	IP20
Storage Temperature Range	-40°C to +70°C
Altitude	Up to 1000 m without derating
Input Voltage	3AC 380 V to 480 V
Output Voltage	0 V to Input Voltage
Control Modes	V/f control
Ambient Temperature Range	-10°C to +60°C
Relative Humidity	5% to 95%, non-condensing
Communication Interfaces	Modbus RTU
Braking Resistor	Optional external
