Siemens SINAMICS V20 User Manual

Commissioning via the built-in BOP
5.6 Function commissioning
SINAMICS V20 Converter
136 Operating Instructions, 10/2019, A5E34559884-012
5.6.3.19 Setting high/low overload (HO/LO) mode
Functionality
Setting HO/LO overload enables you to select the low-overload mode for pumps and fans,
the most important target applications of SINAMICS V20 converters. Low-overload mode
can improve the rated output current of the converter and therefore allows the converter to
drive motors of higher power.

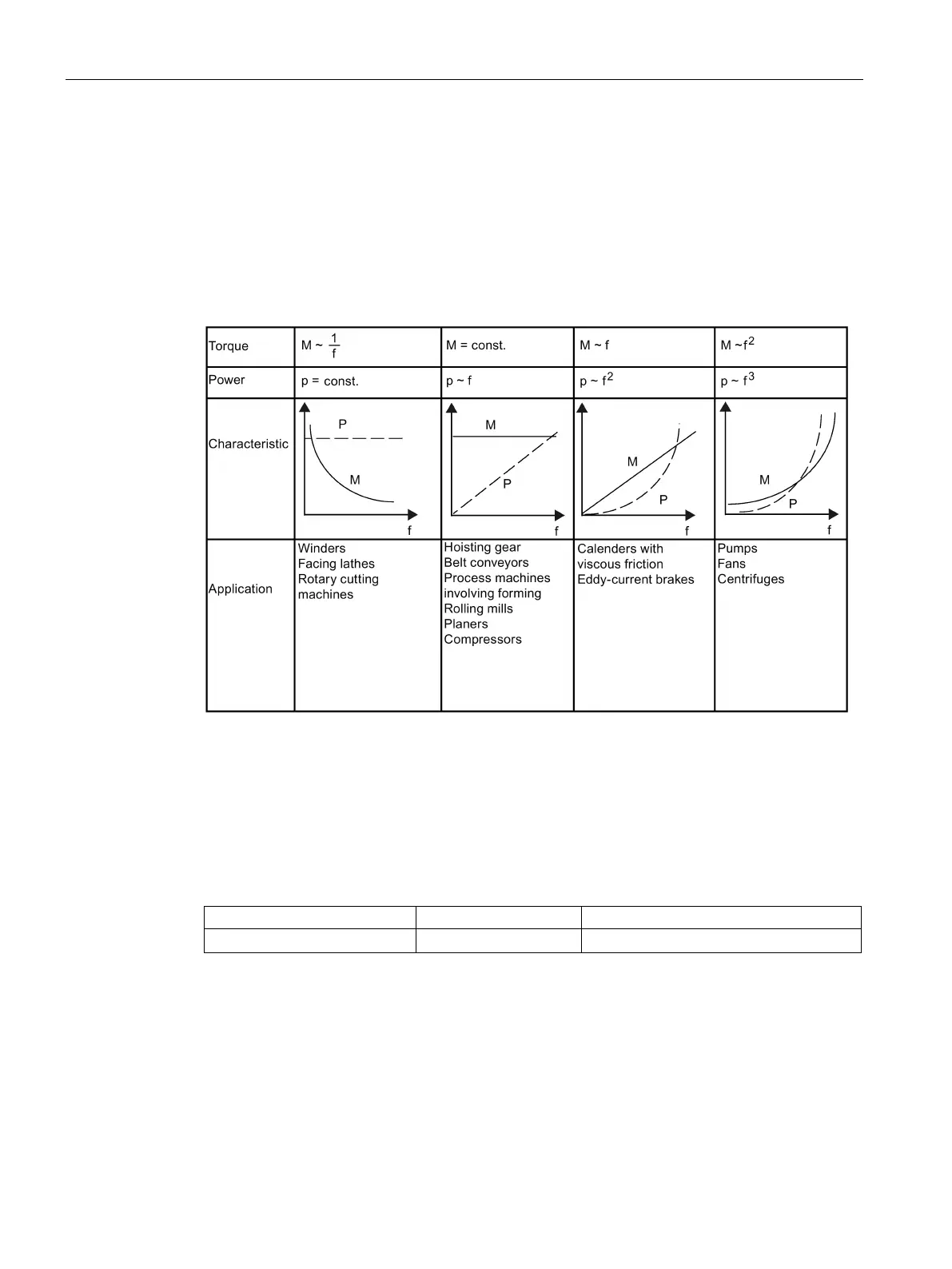

Typical application fields
● High overload: conveyors, agitators and centrifuges
● Low overload: pumps and fans
Power ratings
Rated power rating (HO mode)
18.5 kW
22 kW
Rated power rating (LO mode)
22 kW
30 kW

Siemens SINAMICS V20 Specifications

General

Power Range	0.12 kW to 30 kW
Overload Capacity	150% for 60 seconds
Protection Class	IP20
Storage Temperature Range	-40°C to +70°C
Altitude	Up to 1000 m without derating
Input Voltage	3AC 380 V to 480 V
Output Voltage	0 V to Input Voltage
Control Modes	V/f control
Ambient Temperature Range	-10°C to +60°C
Relative Humidity	5% to 95%, non-condensing
Communication Interfaces	Modbus RTU
Braking Resistor	Optional external
