Commissioning via the SINAMICS V20 Smart Access

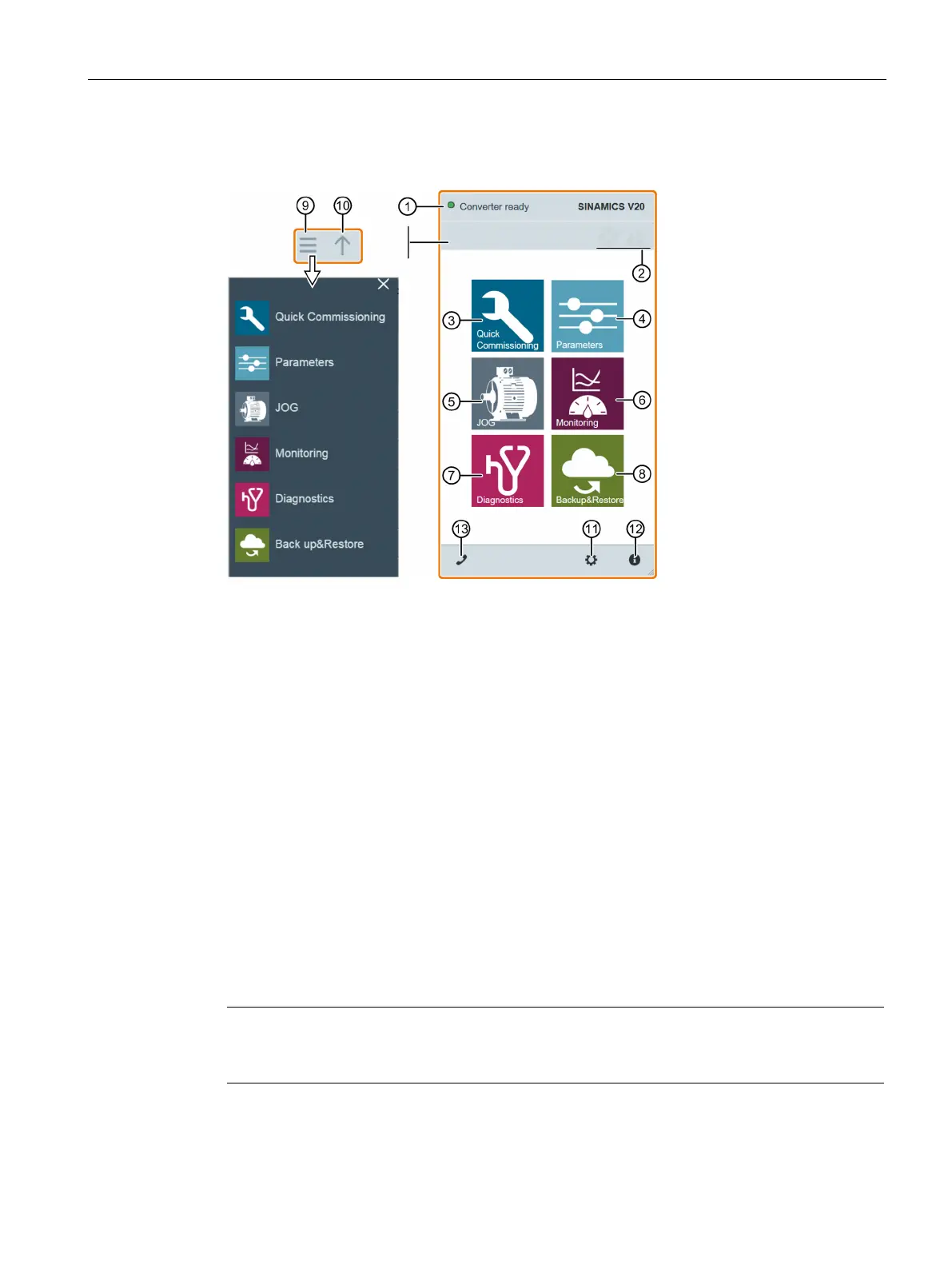

6.3 Overview of the Web pages
SINAMICS V20 Converter
Operating Instructions, 10/2019, A5E34559884-012
145
6.3 Overview of the Web pages
①
Connection status indication
(Page 146)
②
Fault/alarm indication
(Page 163)
③
Quick commissioning wizard
(Page 150)
④
Parameter settings
(Page 155)
⑤
Motor test run in
JOG/HAND mode (Page 160)
⑥
Converter status
monitoring (Page 163)
⑦
Diagnostics
(Page 163) (faults, alarms, I/O status)
⑧
Data backup & restore
(Page 166)
⑨
Navigation sidebar (visible only on
lower-level pages)
⑩
Advancing backward (visible only on lower
-level pages)
⑪
Optional Web access settings
(Page 147) (Wi-
Fi configuration, user interface language
settings, time synchronization, and upgrade)
⑫
Converter identification data
(Page 146)
⑬
Support information
(Page 173)
Note
The Web page illustrations from this
chapter forward represent only the standard PC Web
page appearance.

Siemens SINAMICS V20 Specifications

General

Power Range	0.12 kW to 30 kW
Overload Capacity	150% for 60 seconds
Protection Class	IP20
Storage Temperature Range	-40°C to +70°C
Altitude	Up to 1000 m without derating
Input Voltage	3AC 380 V to 480 V
Output Voltage	0 V to Input Voltage
Control Modes	V/f control
Ambient Temperature Range	-10°C to +60°C
Relative Humidity	5% to 95%, non-condensing
Communication Interfaces	Modbus RTU
Braking Resistor	Optional external
