Siemens SINAMICS V20 User Manual

Commissioning via the SINAMICS V20 Smart Access
6.4 Viewing connection status
SINAMICS V20 Converter
146 Operating Instructions, 10/2019, A5E34559884-012

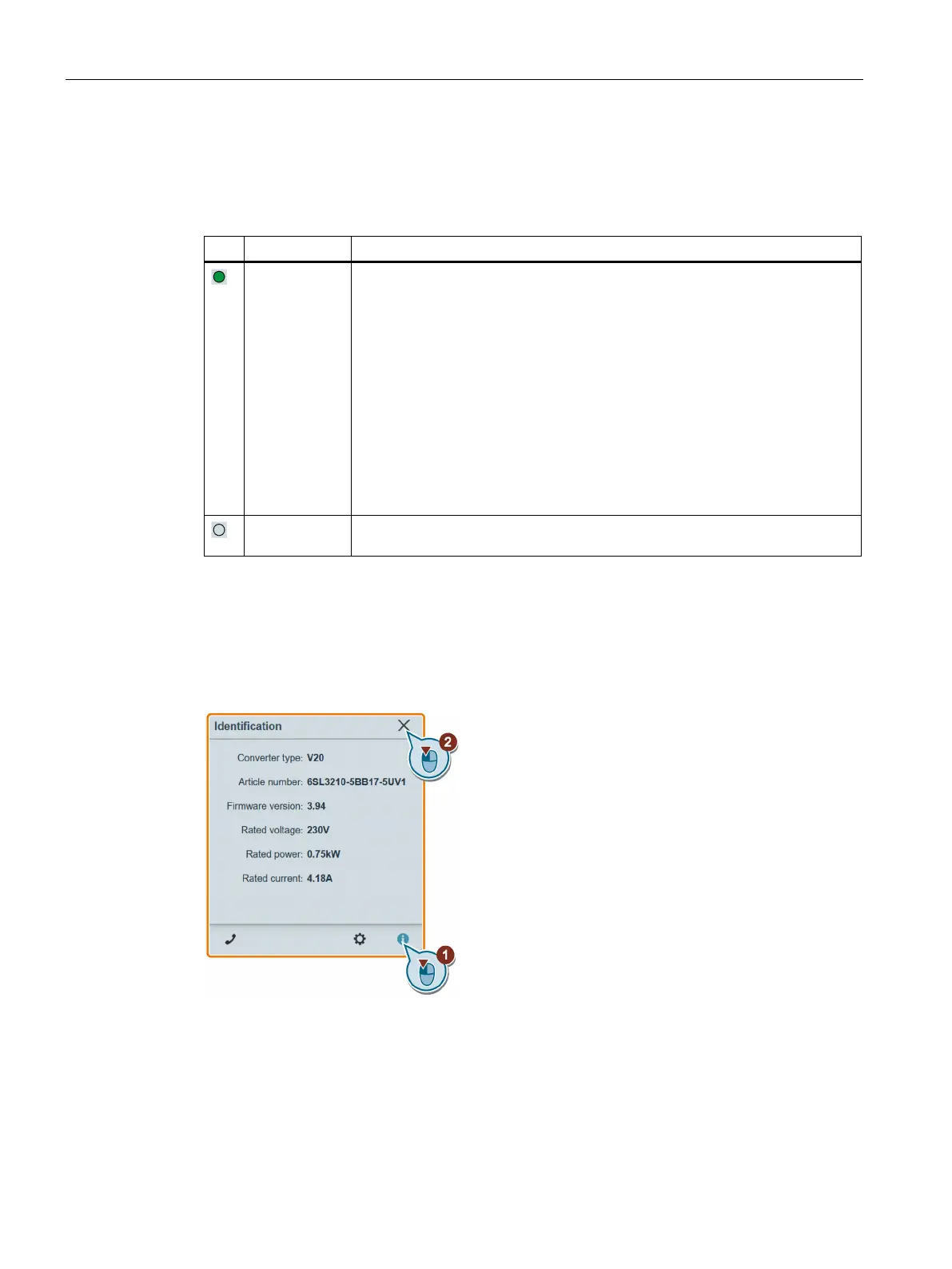

6.4 Viewing connection status
You can view the connection status in the upper-left corner of the V20 Web pages. The
connection status is updated every 1.5 seconds.
Icon
Status
Description
Connected Communication between the PC/mobile device and the converter is estab-
lished.
Note that the green status icon indicates one of the following actual converter
statuses (see r0002):
• Commissioning mode
• Converter ready
• Converter fault active
• Converter starting
• Converter running
• Converter stopping
• Converter inhibited
Disconnected Communication between the PC/mobile device and the converter is not estab-
lished.
6.5 Viewing converter information
The converter identification Web page displays detailed information of the currently
connected converter:

Siemens SINAMICS V20 Specifications

General

Power Range	0.12 kW to 30 kW
Overload Capacity	150% for 60 seconds
Protection Class	IP20
Storage Temperature Range	-40°C to +70°C
Altitude	Up to 1000 m without derating
Input Voltage	3AC 380 V to 480 V
Output Voltage	0 V to Input Voltage
Control Modes	V/f control
Ambient Temperature Range	-10°C to +60°C
Relative Humidity	5% to 95%, non-condensing
Communication Interfaces	Modbus RTU
Braking Resistor	Optional external
