Mechanical installation
3.5 DIN rail mounting (frame sizes AA, AB, AC, A, and B)
SINAMICS V20 Converter
32 Operating Instructions, 10/2019, A5E34559884-012
3.5 DIN rail mounting (frame sizes AA, AB, AC, A, and B)
By means of the optional DIN rail mounting kit, you can mount the frame size AA, AB, AC, A,
or B to the DIN rail.
Two additional mounting methods are also available for different frame sizes. For more
information, refer to the following sections:
● Mounting in a control cabinet (Page 24)
● Push-through mounting (frame sizes B ... E) (Page 29)
Note
To install
or remove the converter, use a cross-tip or flat-bit screwdriver.
Installing and removing FSAA/FSAB/FSAC to and from the DIN rail
For more information, see Section "Migration mounting kit for FSAA ... FSAD (Page 398)".

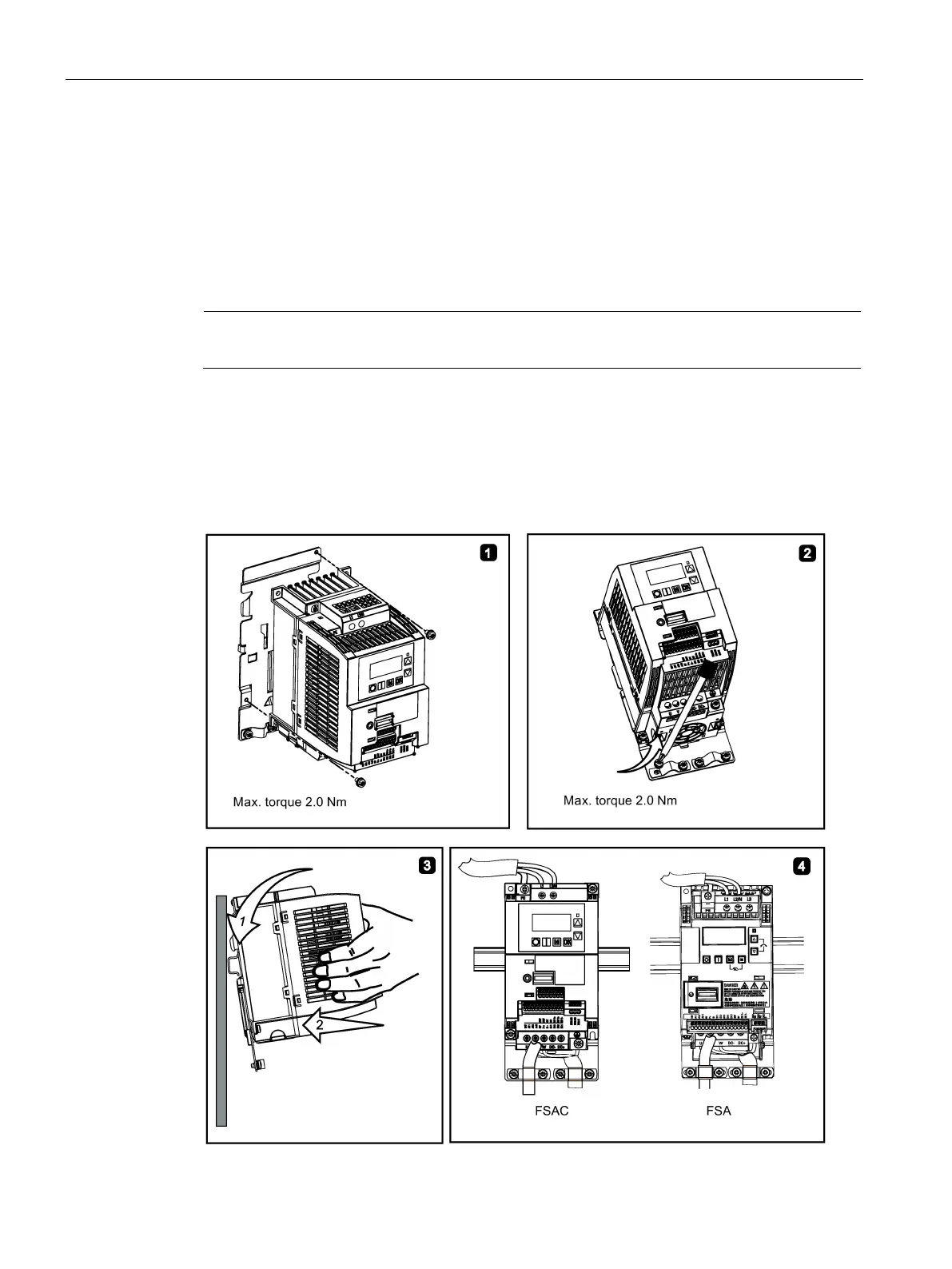

Installing FSA/FSAC to the DIN rail

Siemens SINAMICS V20 Specifications

General

Power Range	0.12 kW to 30 kW
Overload Capacity	150% for 60 seconds
Protection Class	IP20
Storage Temperature Range	-40°C to +70°C
Altitude	Up to 1000 m without derating
Input Voltage	3AC 380 V to 480 V
Output Voltage	0 V to Input Voltage
Control Modes	V/f control
Ambient Temperature Range	-10°C to +60°C
Relative Humidity	5% to 95%, non-condensing
Communication Interfaces	Modbus RTU
Braking Resistor	Optional external
