WORKSHOP MANUAL
EDITION
PAGE
112 /
124

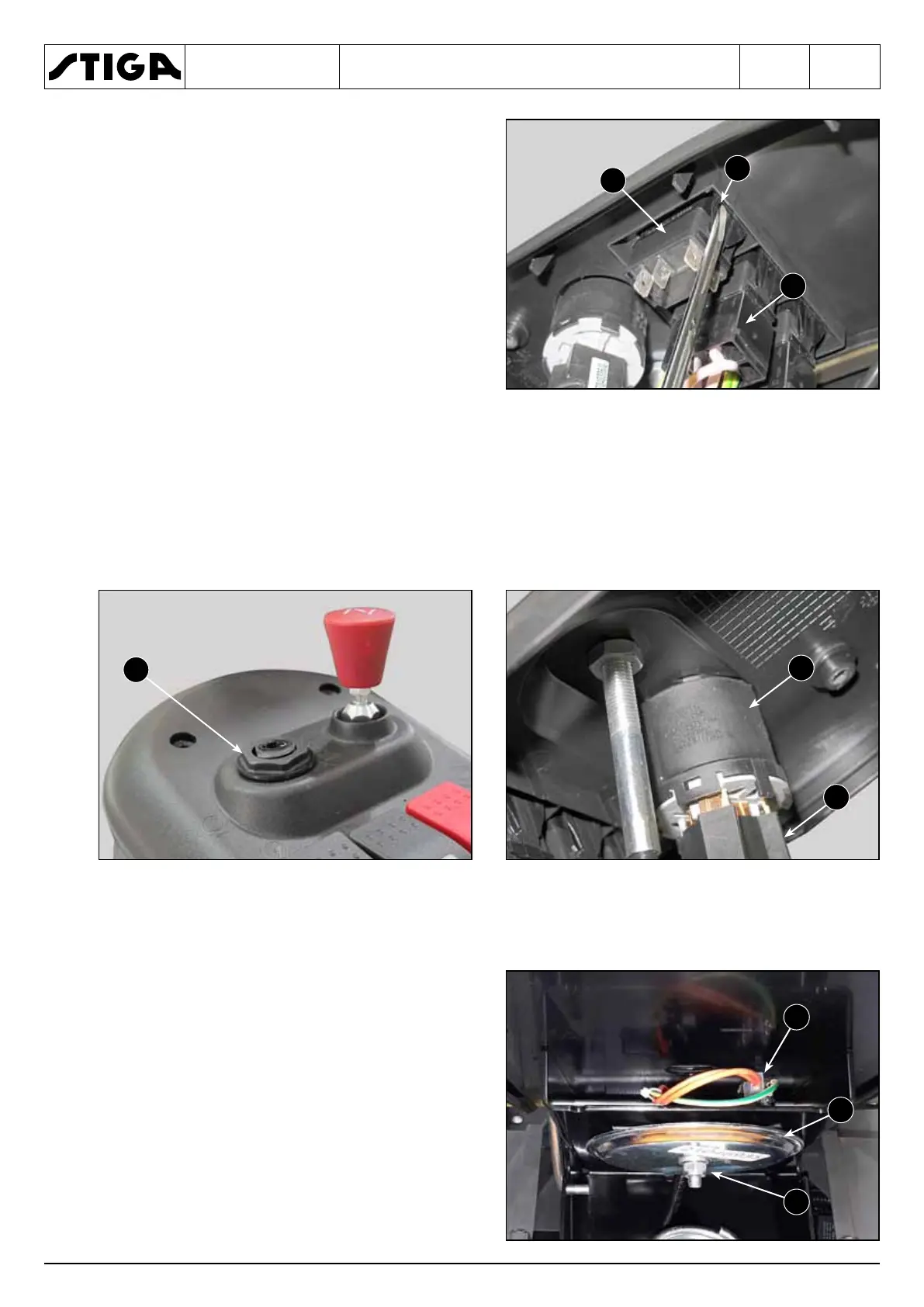

The switches are press-fitted into their respective
housings. To replace a switch:
1. Disconnect the connector (1).
2. Using a screwdriver or a similar tool, press the
locking tabs (2) on both sides of the switch (3).
3. Remove the switch (3).
1. Unscrew the nut (1).
2. Remove the starter block (2) and disconnect the connectors (3), making sure to mark them so
as not to incur in assembly errors.
This switch is located under the driver's seat and
detects the presence of the operator for safety
system intervention.
To disassemble the switch:
1. Disconnect the connector (1).
2. Unscrew the nut (2) and remove the switch (3).
