2. Unscrew the left screw (3).
3. Remove the front casing (1) from the left side
of the machine.
When assembling, carry out the steps described
above in reverse, paying attention to position the
hooking tooth (4) over the upper left edge of the
right rear casing (5).

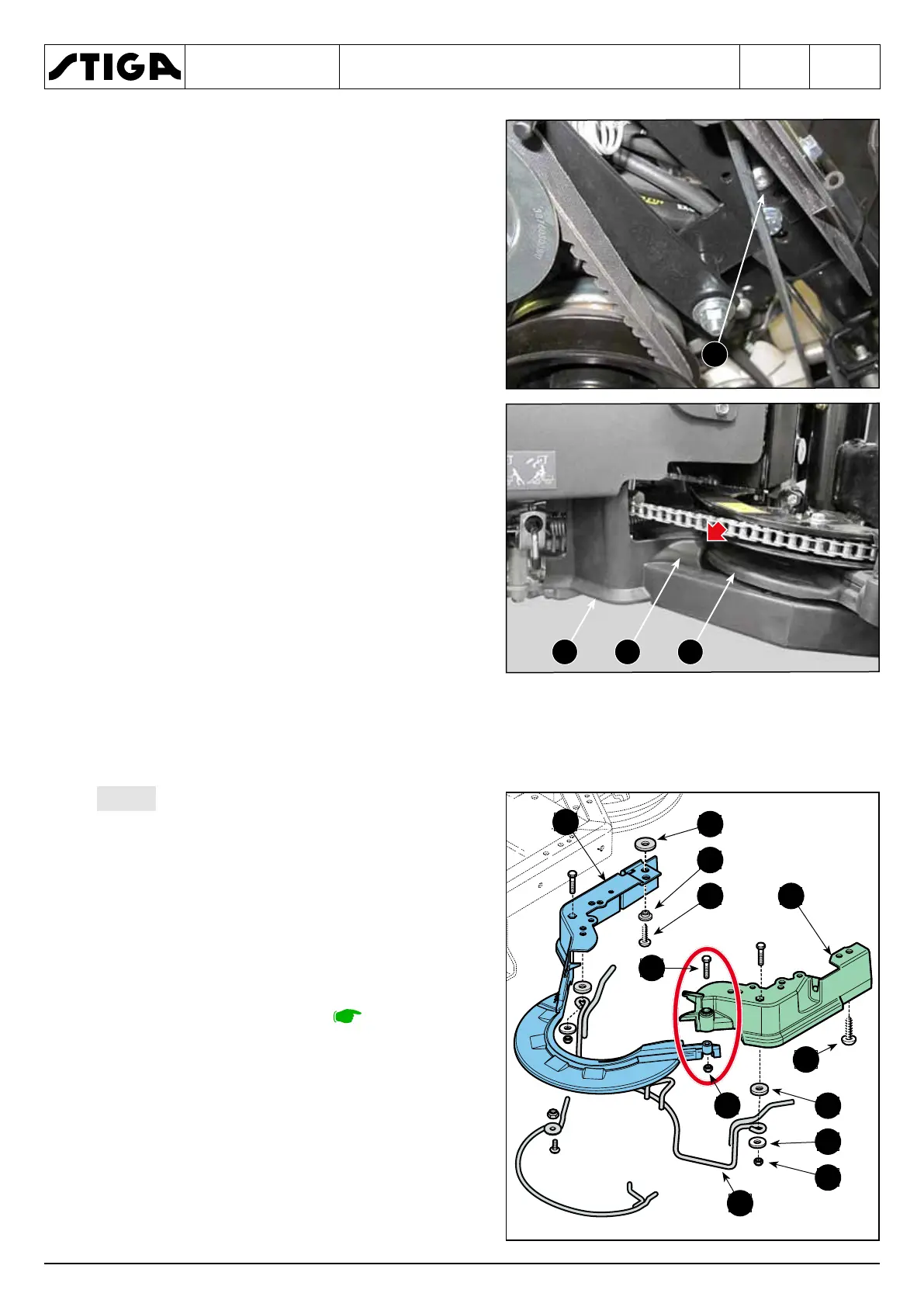

The rear guards consist of three elements
connected to each other: a left casing (1), a right
casing (2) which, starting from the right side,
wraps the mechanism of the articulated joint and
connects to the left casing by means of a screw
and, finally , a rear belt guide arch (3) for the fix-
ing of which two elements in common with the left
and right casings are used.
1. Remove the front casing.
2. Unscrew the two front nuts (4) paying attention
to the fact that their removal causes the loss of
the fixing points of the rear belt guide arch (3).
