WORKSHOP MANUAL
EDITION
PAGE
38 /
124

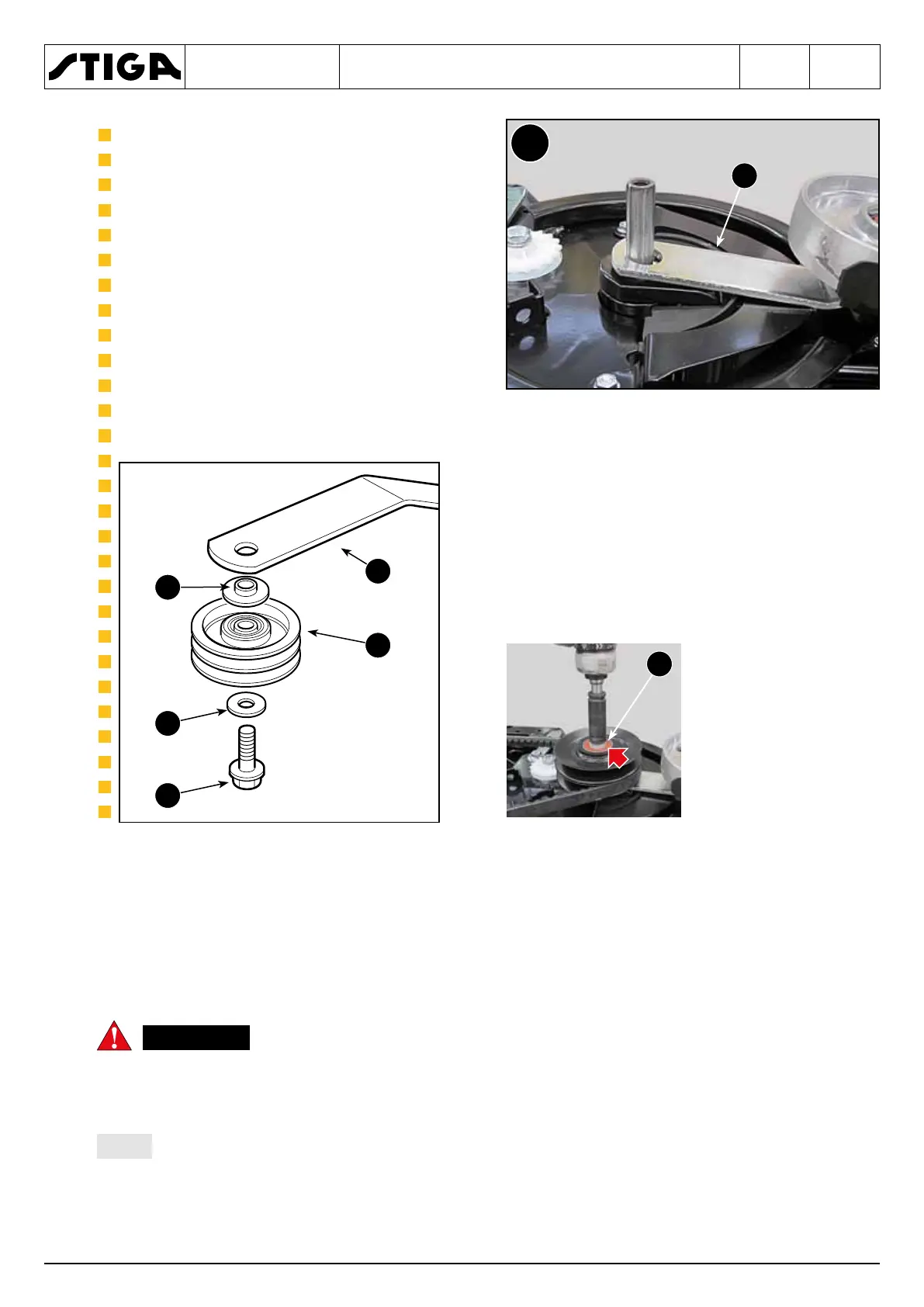

4. Remove the tightener arm (25).
Perform the steps described above in reverse order, taking care of:
– correctly reposition all the washers and
spacers previously removed, according to
the sequence shown in the drawing;
– fit the centering spacer with the protrud-
ing part correctly inserted in the hole of the
tightener arm
– Tighten the central
screw (21) with a
torque wrench set to
35-50 Nm.
The operation of separating the front and rear parts of the machine is
a particularly demanding operation, which must be performed by implementing all the
measures to prevent any event that could put the safety of the operator at risk.
This intervention is required only for the replacement of the bearings of the articulated joint,
in the face of a noticeable backlash and consequent possibility of reciprocal movement in the cou-
pling between the two parts of the machine.
