WORKSHOP MANUAL
EDITION
PAGE
55 /
124

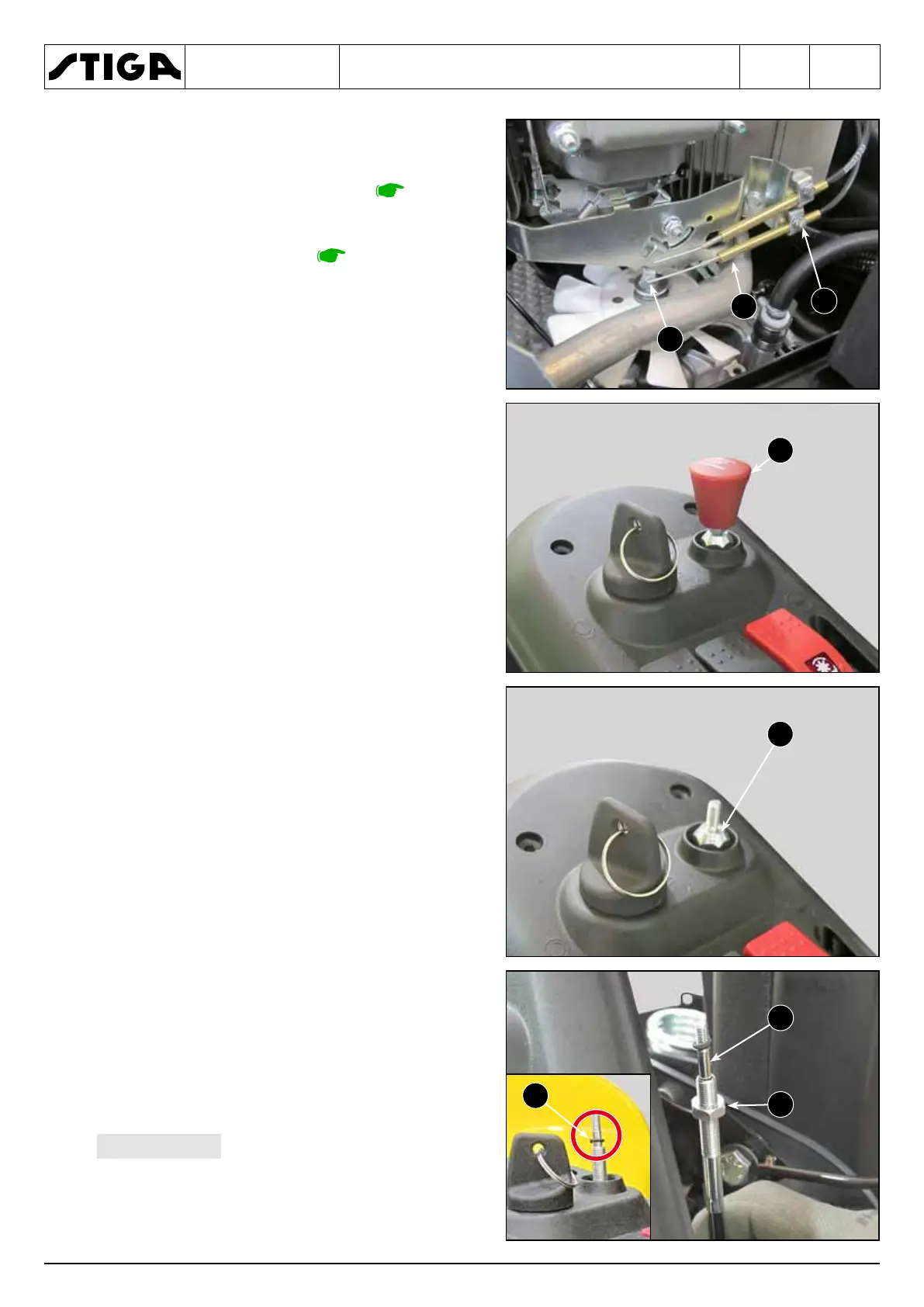

1. Remove the dashboard casing
2. Remove the rear hood .
3. Loosen the clamp screw (1) and disconnect
the “Z” terminal (2) of the throttle cable (3) and
release the cable sheath (4).
4. Unscrew the knob (3) after loosening the nut
below.
5. Unscrew the nut (4)
6. Extract the cable terminal (5) from underneath.
7. Join the threaded terminal of the old cable with
the motor-side terminal of the new cable, us-
ing a sufficiently strong and reliable adhesive
tape.
8. Working on the engine side, carefully pull the
old cable which, in this way, guides the new
cable all the way from the dashboard to the
exit of the engine.
9. Connect the “Z” terminal (2) of the cable to the
engine choke lever and lock the cable sheath
(2).
10. When assembling, bring the upper nut (4) all
the way down, making sure to reposition the
sealing OR ring (7) correctly. Then lock the
threaded pin with the lower nut (6).
Apply a film of grease in corre-
spondence with the OR ring (7) and make sure
that the command is smooth in both directions.
