WORKSHOP MANUAL
EDITION
PAGE
83 /
124

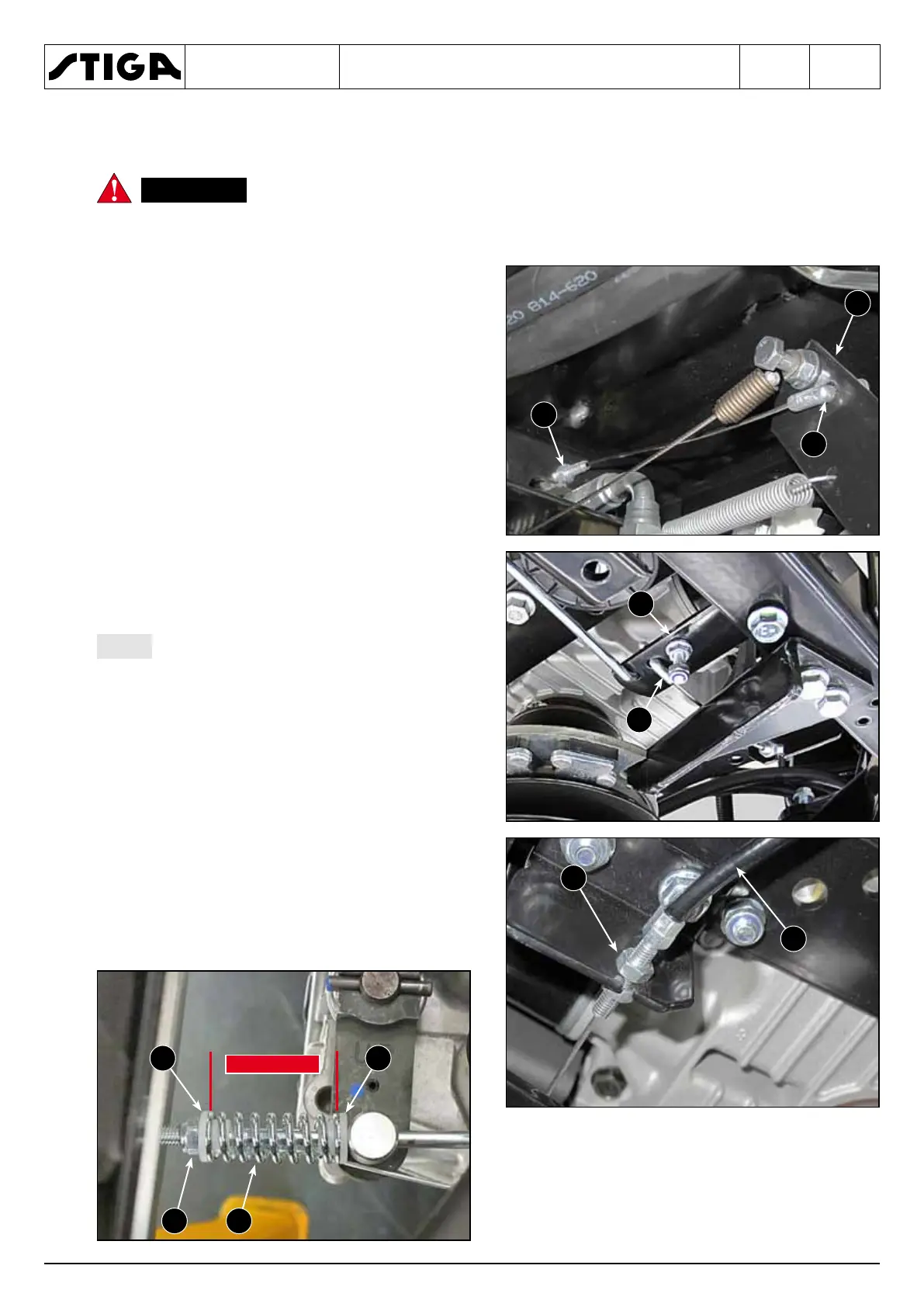

With the removal of the brake cable, the parking brake function is com-
pletely lost and therefore wedges must be placed in front of the wheels to prevent any
accidental movement of the machine.
1. Disengage the parking brake.
2. Loosen the front adjuster (1) and disconnect
the “Z” terminal (2) of the wire from the brake
pedal lever (3).
3. Loosen the rear adjuster (4) and disconnect
the “Z” terminal (5) of the wire from the gear
lever (6).
4. Remove the cable (7).
The two ends of the cable are symmetrical
and therefore can be positioned indifferently from
the front or the back.
When assembling, perform the steps described
above in reverse order, taking care to reposition
the two adjusters (1) and (4) in the centre accord-
ing to their respective fixing points.
After the assembly, it is always necessary to pro-
ceed with:
1. Engage the parking brake.
2. Act on the nut (11) until the spring height
(12) is 35 mm, measured inside the plastic
washers (13).
