1. Remove the rear hood
All operations concerning the tank must be carried out with the cold
machine. Do not smoke near the tank and whenever you handle petrol.

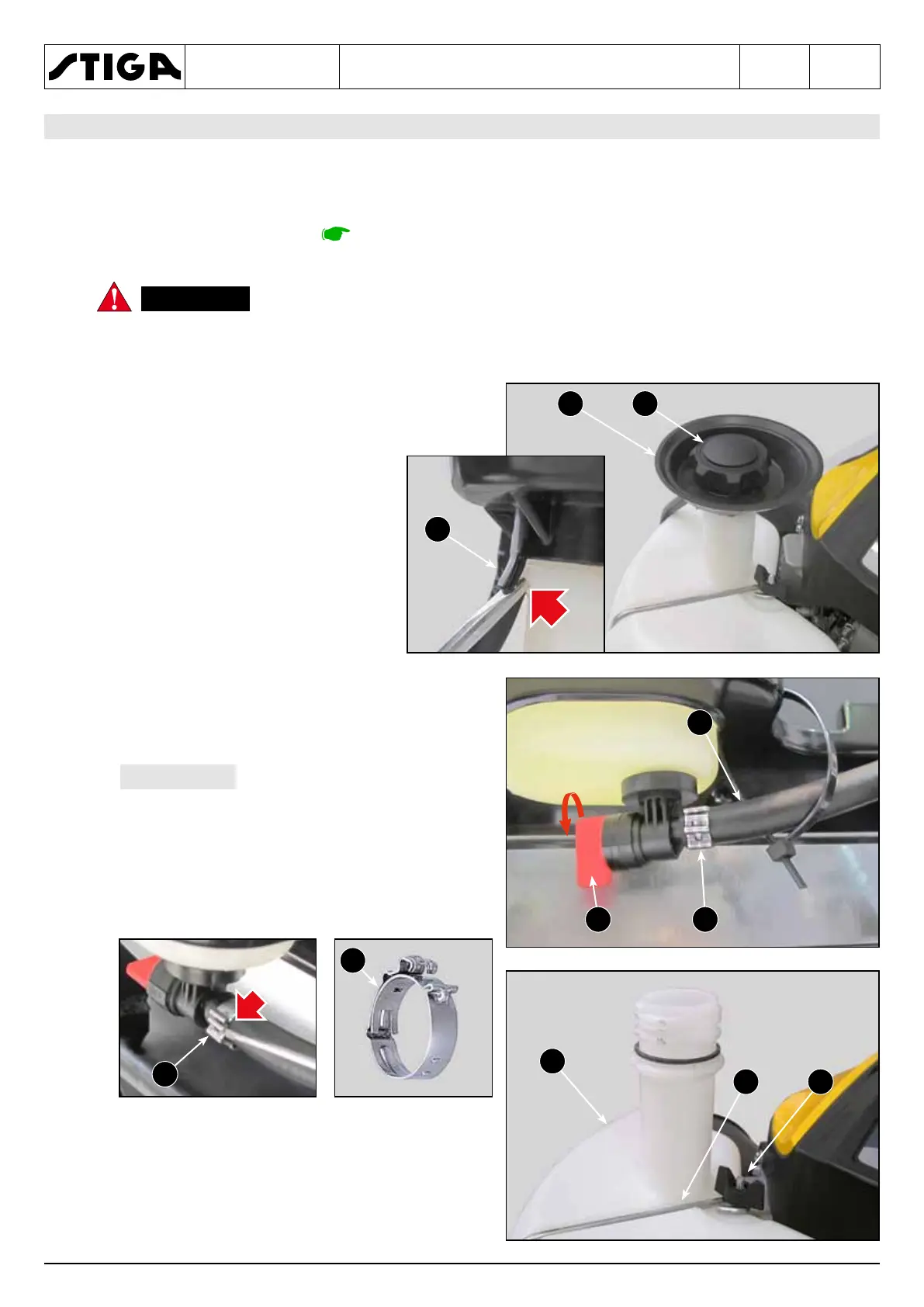

1. Unscrew the cap (1) and remove the petrol
collecting tray (2), releasing the underlying
tab (3) with the help of a screwdriver. Screw
the cap (1) back on to prevent dirt
from entering the tank or acciden-
tal spills of petrol.
2. Close the tap (4).
3. Prepare a container and remove the clamp
(5) with the help of a screwdriver and pour the
petrol in the tube (6) into the container.
The clamp (5) is of the “CLIC”
type as it meets the safety criteria required for
this application. Therefore, in case of replace-
ment, it is necessary to use an original spare
part and NOT a common screw clamp.
4. Unscrew the wing nut (7), remove the arch (8)
and remove the tank (9).
