WORKSHOP MANUAL
EDITION
PAGE
67 /
124

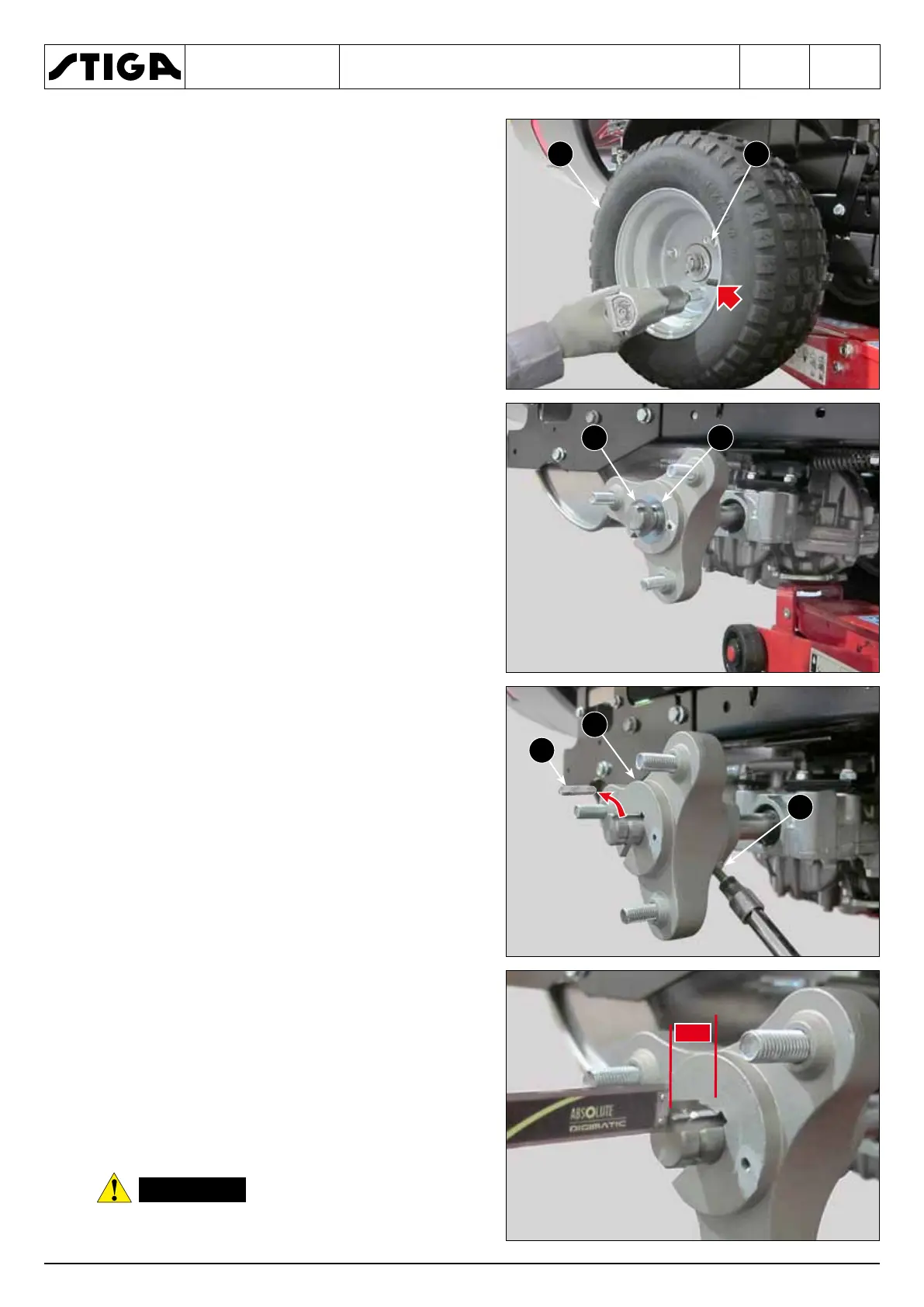

3. Unscrew the three nuts (3).
4. Remove the wheel (4)
To disassemble the hub:
5. Remove the Benzing ring (5) and remove the
shoulder washer (6).
6. Unscrew the two screws (7) and unscrew the
hub (8), together with the key (9).
When assembling, perform the steps described
above in reverse order, taking care to:
– reposition the key (9) correctly and mount the
hub (8) so that the outer flat part is 17.5 mm
from the end of the shaft:
– tighten the two screws (7) with a torque wrench
set to 25 Nm;
– refit the shoulder washer (6) and the Benzing
ring (5);
– reassemble the wheel (4) with the inflation
valve on the outside and tighten the three nuts
(3) with a torque wrench set to 35-50 Nm.
Check and restore the cor-
rect ination pressure.
