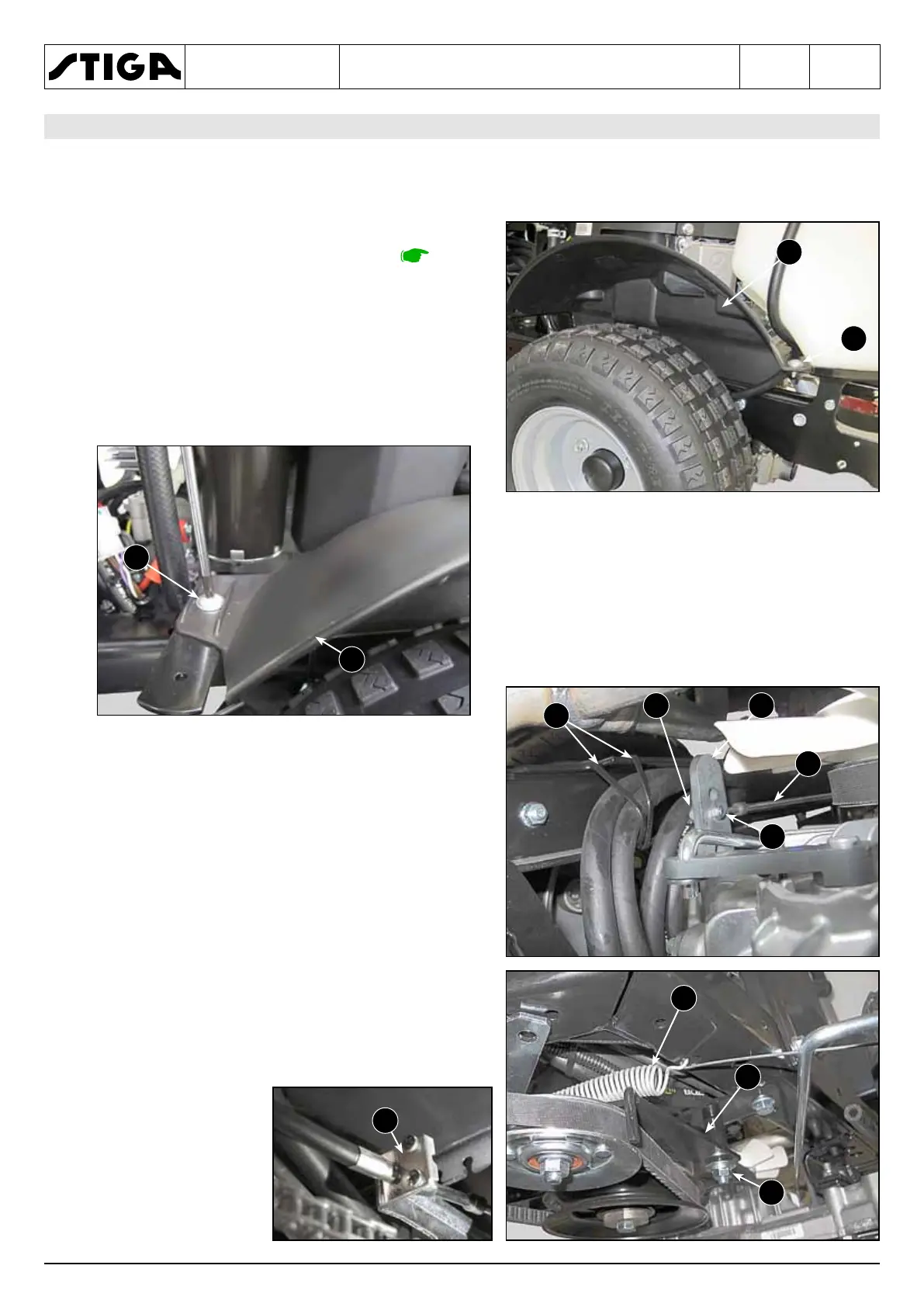

1. Disassemble the exhaust muffler.
2. Remove the left mudguard (1), fixed by the
screws (2) and (3).
3. Unscrew the nut (4) and disconnect the ball
joint (5) of the cable (6) from the traction le-
ver (7).
4. Cut the two clamps (8) to ensure the mobility
of the hydraulic hoses.
5. Release the spring (9) and unscrew the nut
(10) fixing the tightener arm (11), so as to
make the plate (12) accessible.
