When assembling, perform the steps described
above in reverse order, taking care to:
– ALWAYS replace the crown fastener (9);
– replace all the seals of the hydraulic fittings;
– place the ball joint (11) in the second hole of
the lever (12);

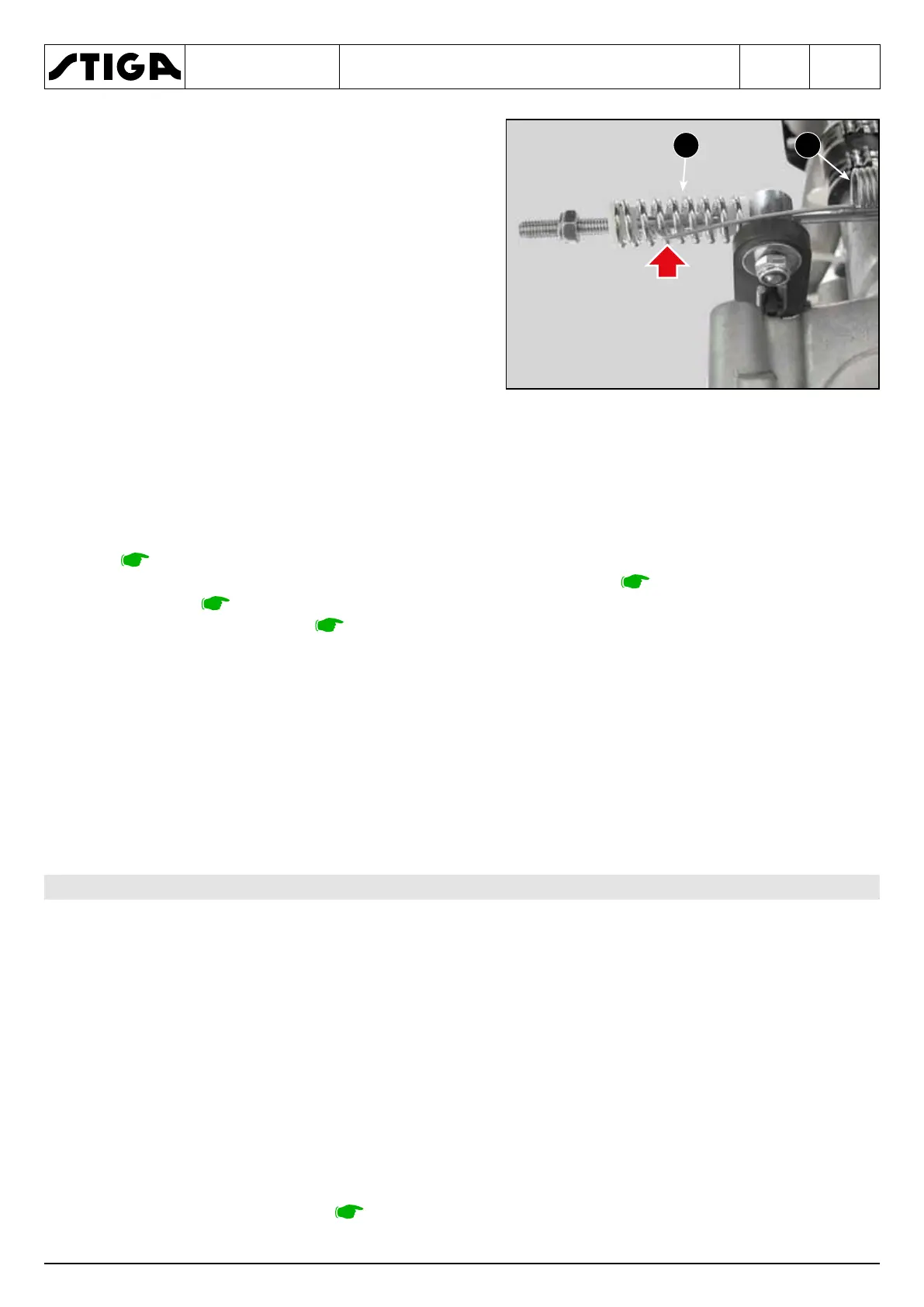

– check that the return spring (16) is hooked to
the third coil of the brake spring (17)
When assembling, perform the steps described above in reverse order, taken care to tighten the
screws (27) with a torque wrench calibrated at 20-25 Nm.
After the assembly,
– tighten the hydraulic fittings to the torque indicated in the “Hydraulic connections diagram”
– check the correct adjustment of the parking brake spring (17)
.
– fill the oil
.
– adjust the pedal stroke
.
The front axle consists of a monobloc unit, which includes the hydraulic drive motor and the dif-
ferential.
The unit is operated by two hydraulic pipes connected to the rear unit and the synchronism of the
speeds is ensured by a dynamic balancing valve for the correct balancing of the circuit.
The removal of the transmission unit from the machine is only required in case of replacement or
revision by a Manufacturer's Service Centre.
The operating diagrams and management methods of the hydraulic circuit are described in chap-
ter “HYDRAULIC SYSTEM”, .
