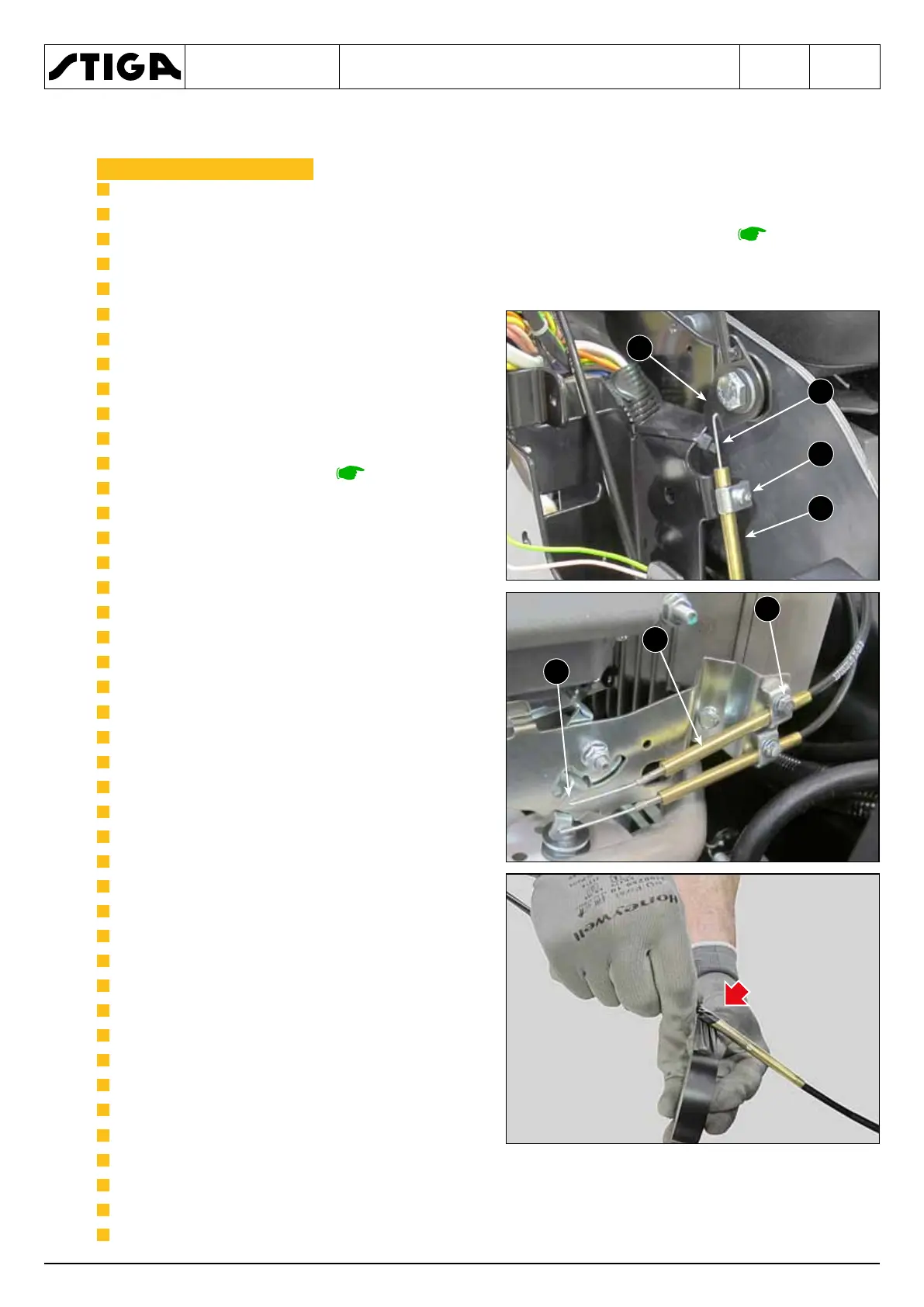

1. Access the throttle levers by removing the upper part of the dashboard.
from 1
to 4.
2. Loosen the clamp screw (1) and discon-
nect the “Z” terminal of the cable (2) from
the throttle lever (3) and release the cable
sheath (4).
3. Remove the rear hood
.
4. Loosen the clamp screw (5) and disconnect
the “Z” terminal (6) of the throttle cable and
release the cable sheath (4).
5. Working on the dashboard side, join the
dashboard side terminal of the old cable
with the engine side terminal of the new ca-
ble, using a sufficiently strong and reliable
adhesive tape.
6. Working on the engine side, carefully pull
the old cable which, in this way, guides the
new cable all the way from the dashboard to
the exit of the opposite terminal.
7. With the throttle in the «MAX» position, con-
nect the terminal (2) of the cable to the throt-
tle lever and secure the sheath (4) from the
dashboard side with the clamp (1).
8. With the throttle lever in the «MAX» position, connect the terminal (6) of the cable to the en-
gine lever, then pull the sheath completely back and secure it with the clamp (5).
