WORKSHOP MANUAL
EDITION
PAGE
62 /
124

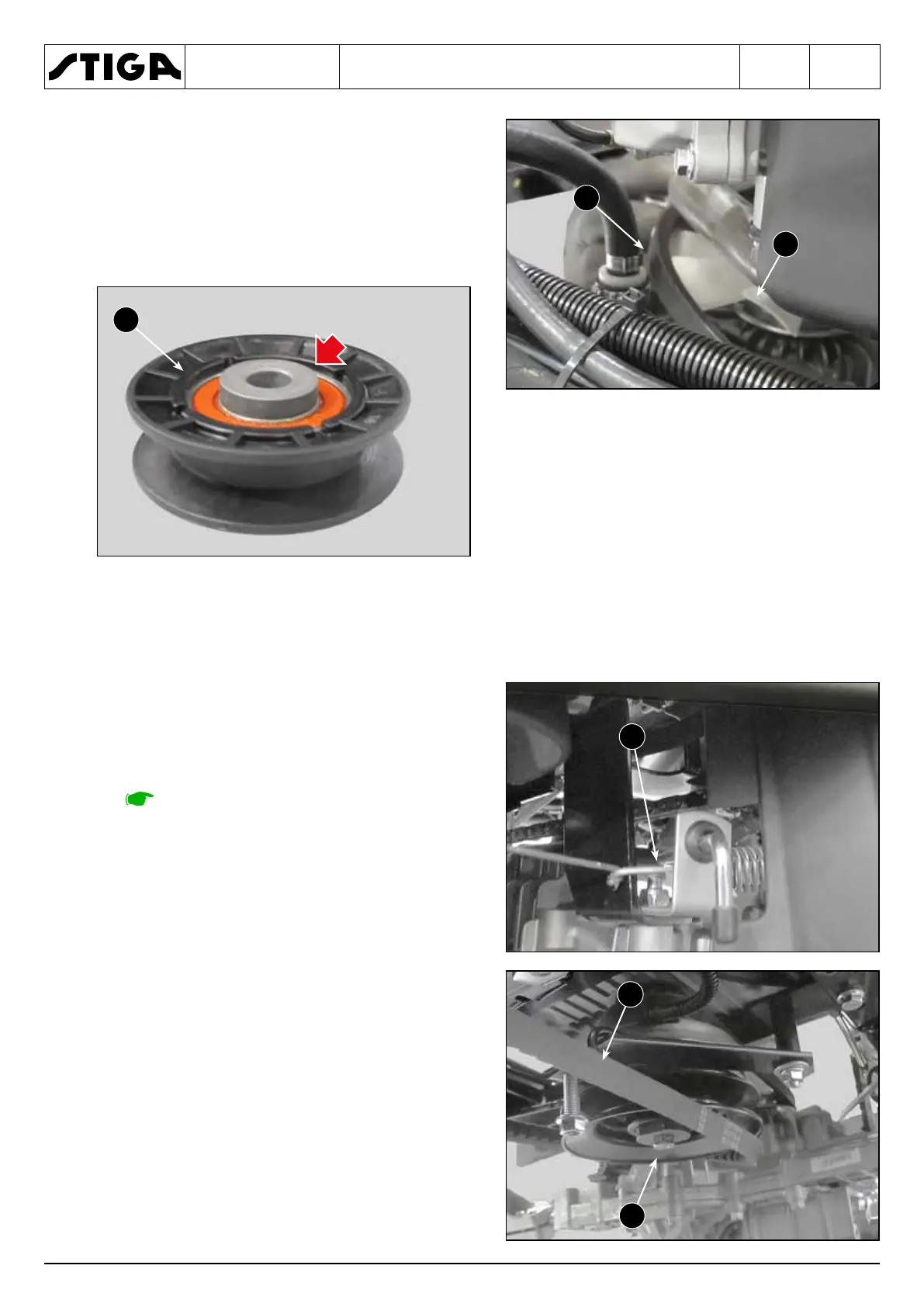

4. Remove the belt (6) by passing it over the fan
of the rear transmission unit (7).
When assembling, perform the steps de-
scribed above in reverse order, taking care to
reassemble the tightener (4) with the protrud-
ing part of the hub facing upwards.
1. Remove the left rear casing, paying attention
to the fact that its removal causes the loss of
the left fixing point of the belt guide arch.
2. Using a suitable spring-pulling hook, release
the spring (1) of the tightener.
3. Release the belt (2) from the electromagnetic
clutch pulley (3).
