The steering chain, supplied pre-assembled, is composed of three sections with differ-
ent orientation of the links and two threaded ends; a yellow marking is placed in correspondence
of the link in the centre of the entire length. This makes the chain perfectly symmetrical, without
constraints in the direction of the assembly.

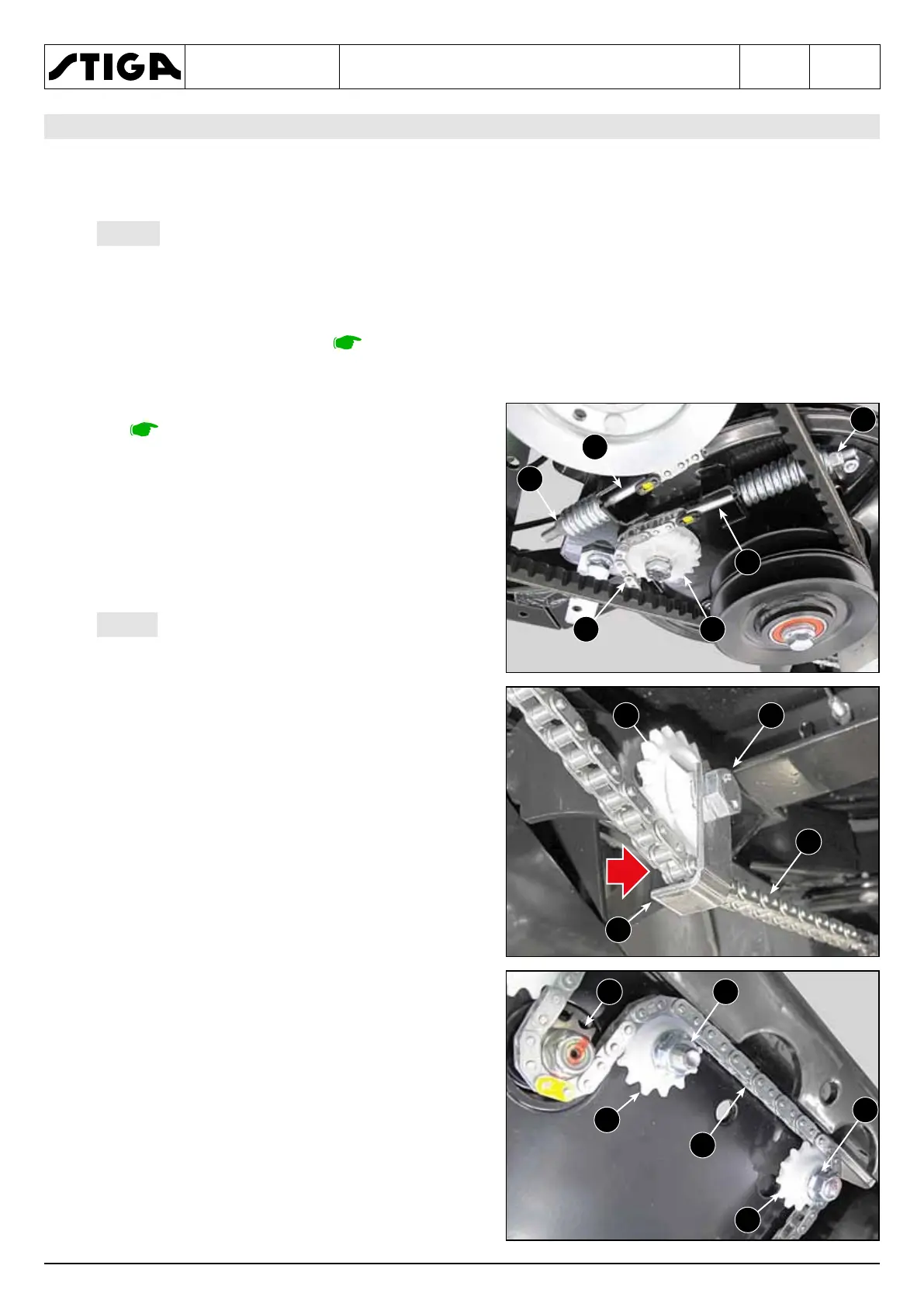

1. Remove the front casing.
2. Remove the left and right rear casings.
3. Completely unscrew the two nuts (1) and (2)
of the adjusters, respectively of the right and
left branches of the chain (3), remove the ter-
minals (4) from the two fixing brackets and
release the right branch of the chain from the
pinion (5).
Pay attention to the fact that the adjuster
nut of the right branch of the chain is on the left
side of the machine and vice versa, and that the
springs are of different lengths.
4. Unscrew the two fixing screws (6) of the two
side pinions (7) and remove the retaining
brackets (8) to allow the chain to be removed
(3).
5. Unscrew the two nuts (9) and remove the two
front side pinions (10)
6. Unscrew the two nuts (11) and remove the
two front central pinions (12), remove both
branches of the chain (3) and release it from
the steering column (13).
