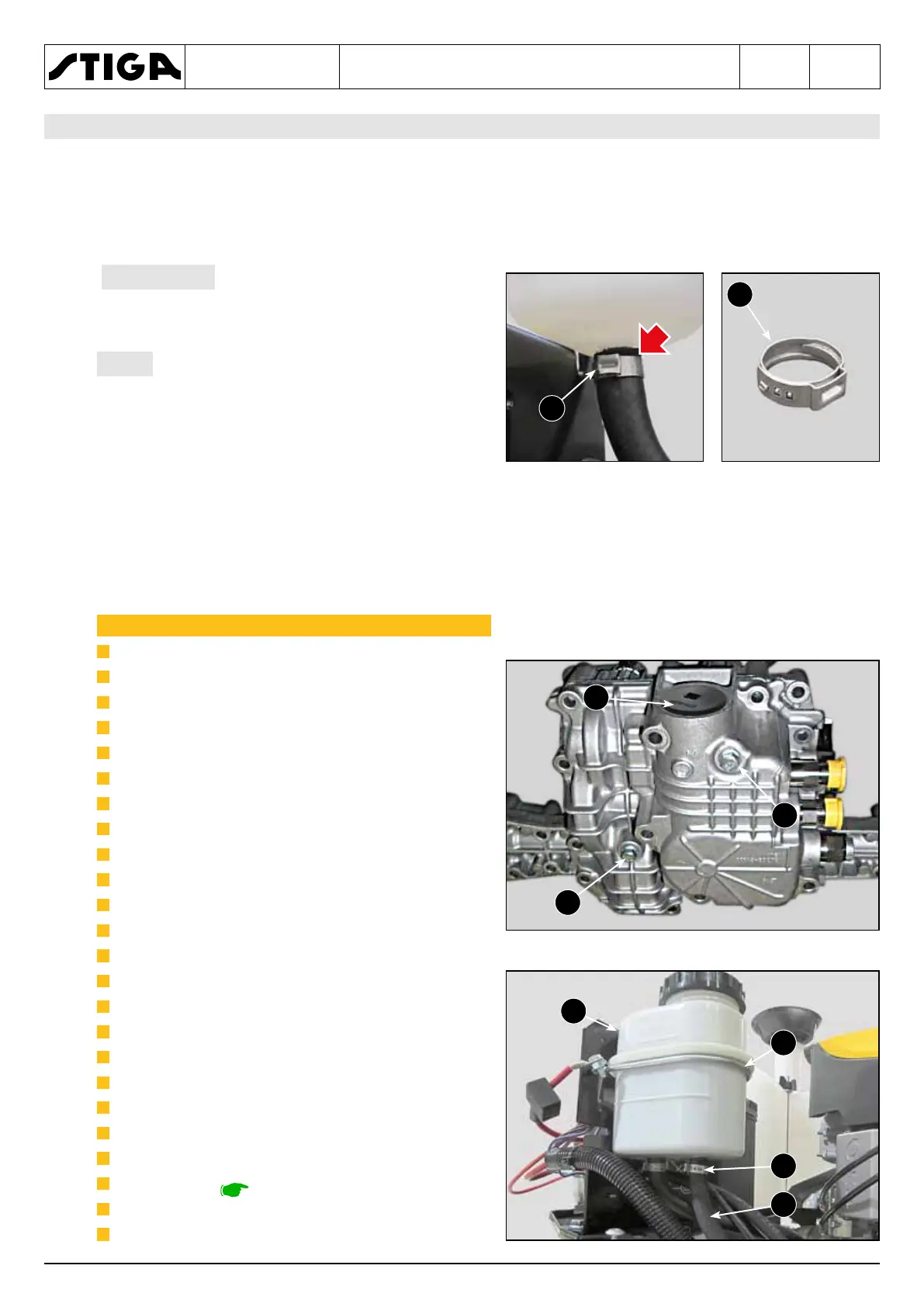

The pipes leading to the oil tank are equipped with a “Click” type hose clamp (1).
This type of clamp (1) is not reus-
able and the replacement requires a specific tool
for the application
If this type of clamp and its applicator are
not available, use a normal hose clamp of suit-
able diameter.
▶▶
1. Place a container under the rear transmis-
sion unit and drain all the oil by unscrewing
the filter cap (1) and the two drain plugs (2)
and (3).
2. Remove the two hose clamps (4) and dis-
connect the two hoses (5) from the tank (6).
3. Unscrew the two nuts securing the support
(7) and remove the tank (6).
When assembling, perform the steps de-
scribed above in reverse order.
After the assembly,
– fill the oil
