This operation is required for pulley replacement and when the front and rear parts of the
machine need to be separated.
▶▶
●
- Loosen or remove both belts from the double
pulley.

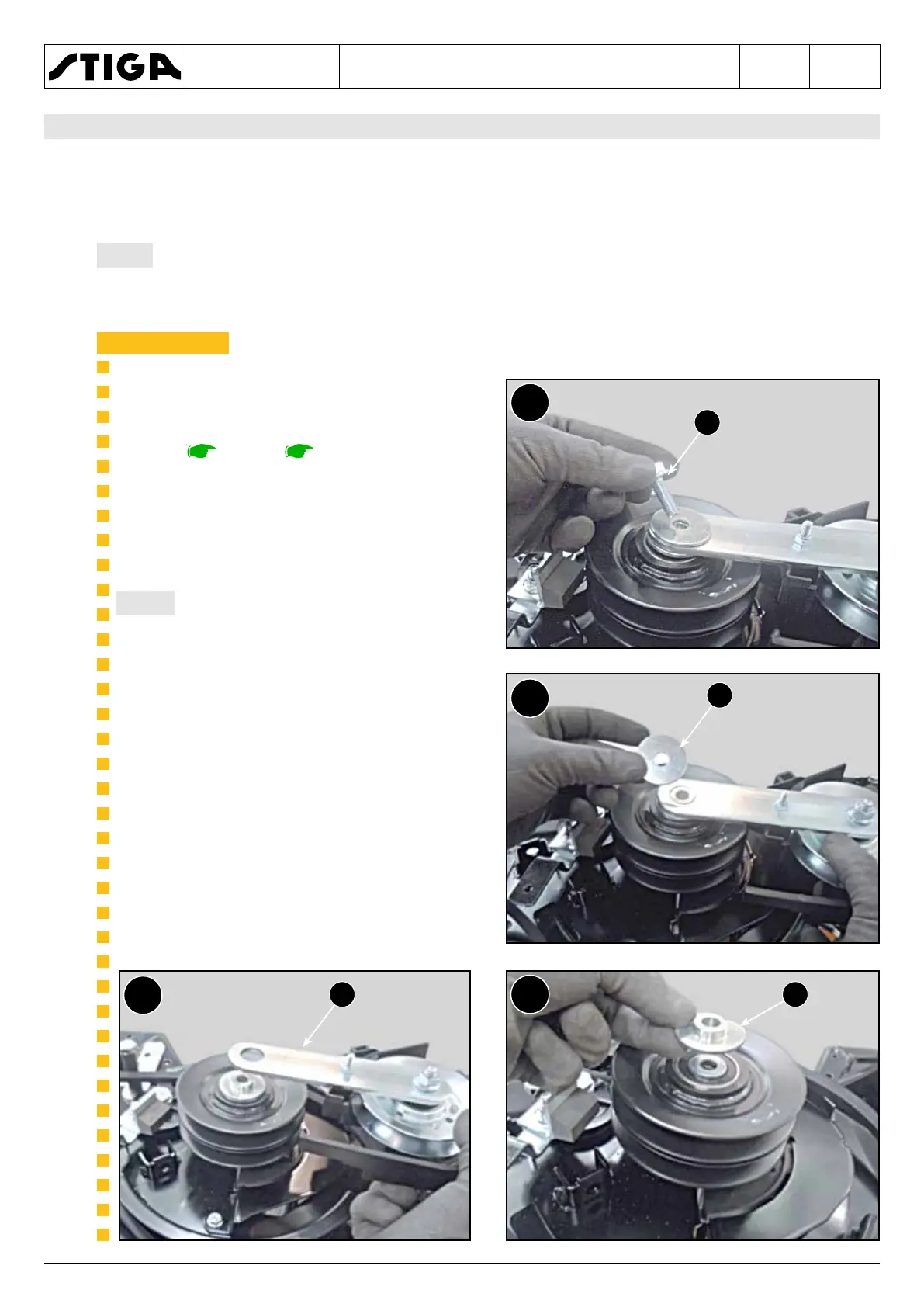

Follow the photographic sequence of the im-
ages that depict the correct and necessary op-
erating steps.
The images are upside down compared
to the real situation.
1. Remove the screw (11) that fixes the tight-
ener arm.
2. Recover the washer (12).
3. Remove the tightener arm (13).
4. Remove centering spacer (14).
