8. Proceed to harness and remove the engine.
Apply the lifting ropes in points that offer sufficient reliability and
proceed with the removal of the engine, taking into account a weight of approximately
50-55 kg.
When assembling, perform the steps described above in reverse order, taking care to:
– Do not interchange the throttle and choke cables.
Replacement cables have a predetermined length and do not require adjustment; for
this reason it is necessary to use specific cables for each type of engine and function, without
exchanging them or using cables of different engines.
– Tighten the engine fixing screws (14) using a torque wrench set to 35-50 Nm.
Wait for the engine and muer to cool before carrying out any type of
work on the rear of the machine.

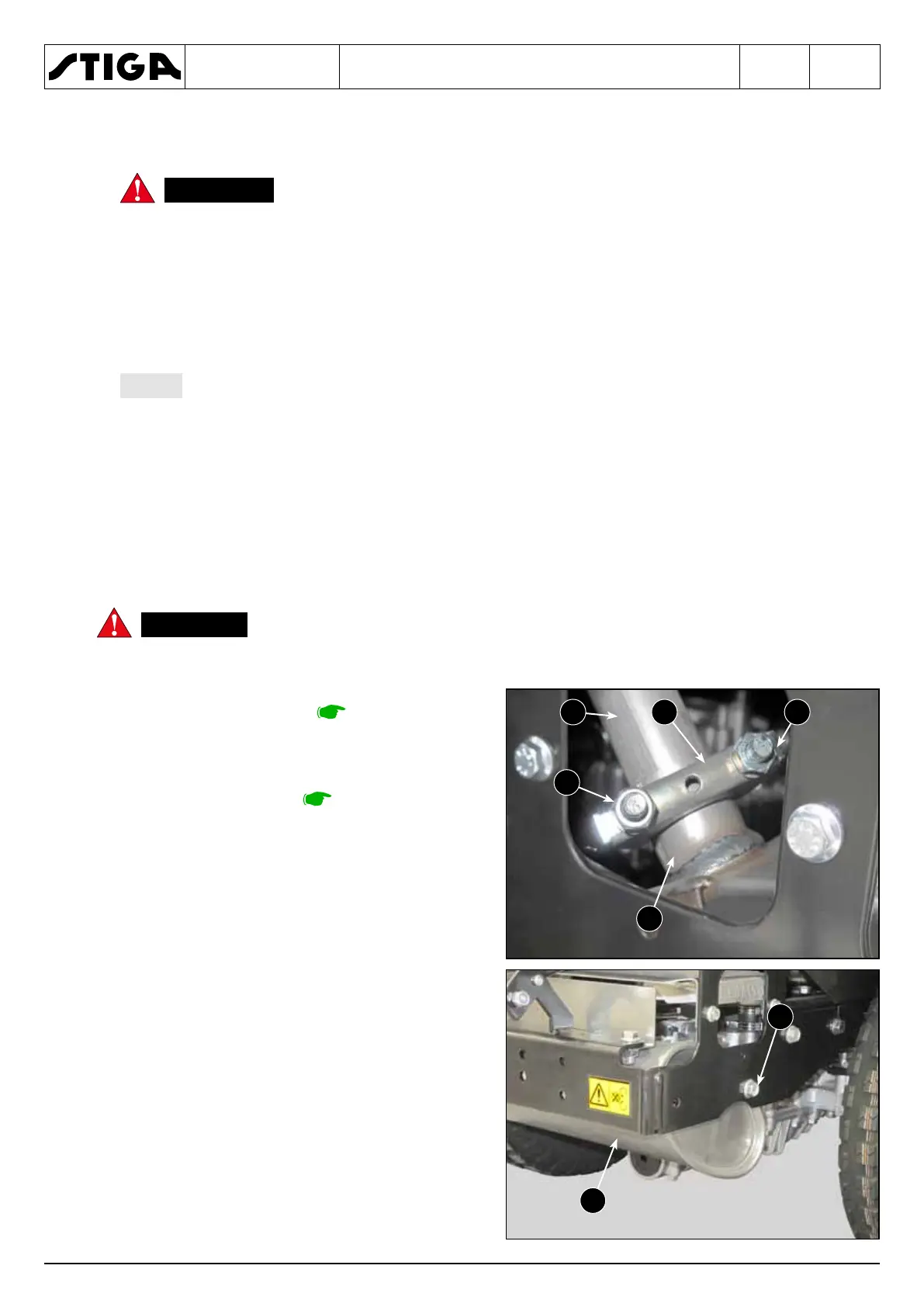

1. Remove the rear hood .
2. Remove the fuel tank
3. Working from the right side of the machine, un-
screw the two nuts (1) that lock the clamp (2)
that fixes the exhaust manifold (3) of the en-
gine to the muffler (4).
4. Unscrew the screw (5) taking care to support
the muffler (4) from the right side.
5. Applying slight movements, cause the disen-
gagement between the manifold (3) and the
muffler until it can be removed.
When assembling, perform the steps described
above in reverse order.
