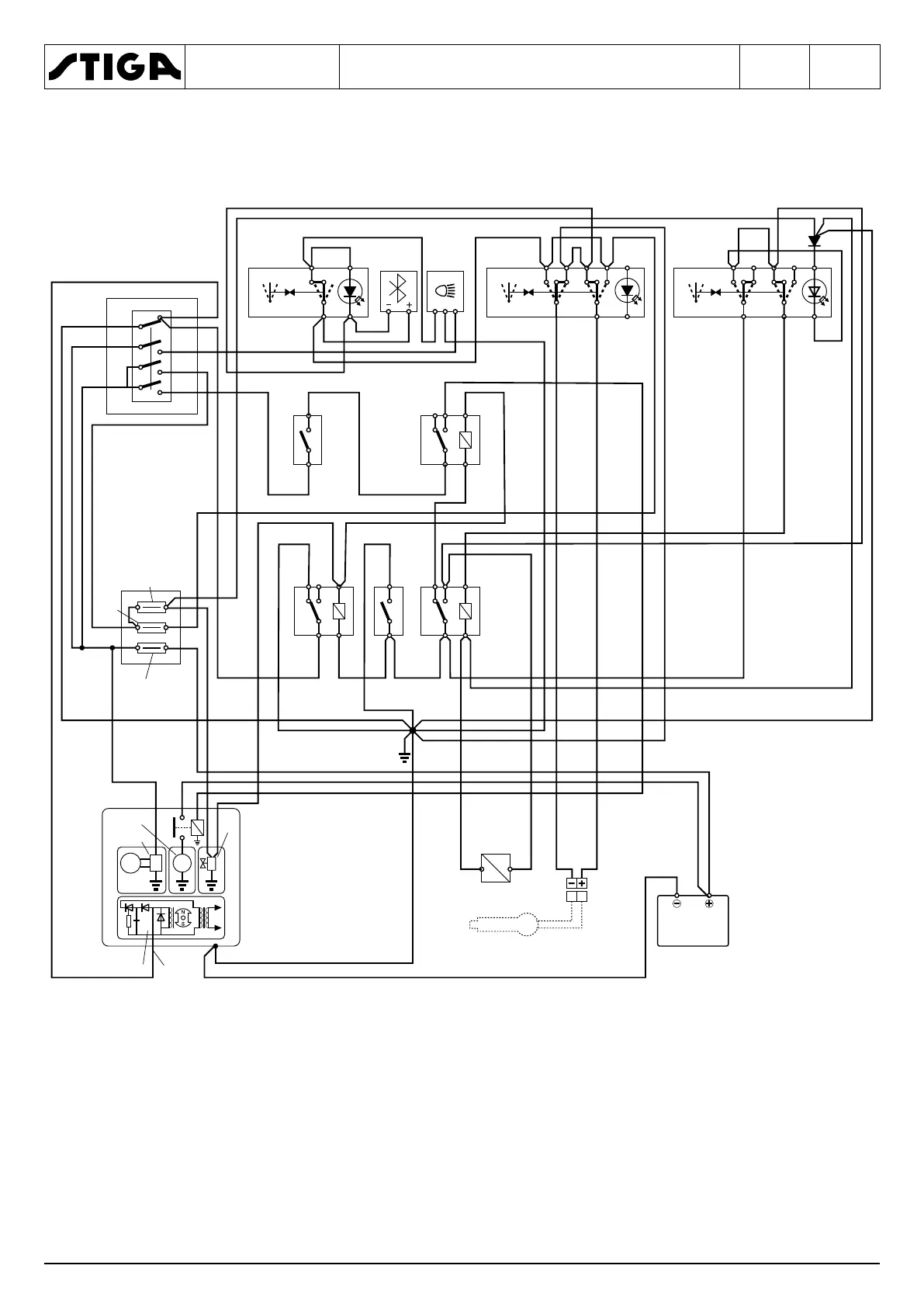

8. Parking brake switch
9. Seat switch (Operator presence)
10. 10 A fuse
11. 20A fuse
12. 30A fuse
13. PTO relay
14. Safety relay
15. Ignition safety relay
16. Electromagnetic clutch
17. Lifting actuator
18. Auxiliary attachments socket
19. Central light
20. Bluetooth module
1. Engine
a. Charging regulator
b. Starter motor
c. Fuel solenoid valve
d. Ignition
e. Engine stop
2. Battery
3. Ignition solenoid
4. Key switch
5. Blades control switch (PTO)
6. Lifting control switch
7. Cutting deck height adjustment switch
3 8
2 7
DWN UP
16 4
5
86
858787a
30
2
1
3 8
2 7
ON OFF
16 4
5
86
858787a
30
1
4
5
2
3
6
7
3 8
2 7
ON OFF
2
1
86
858787a
30
