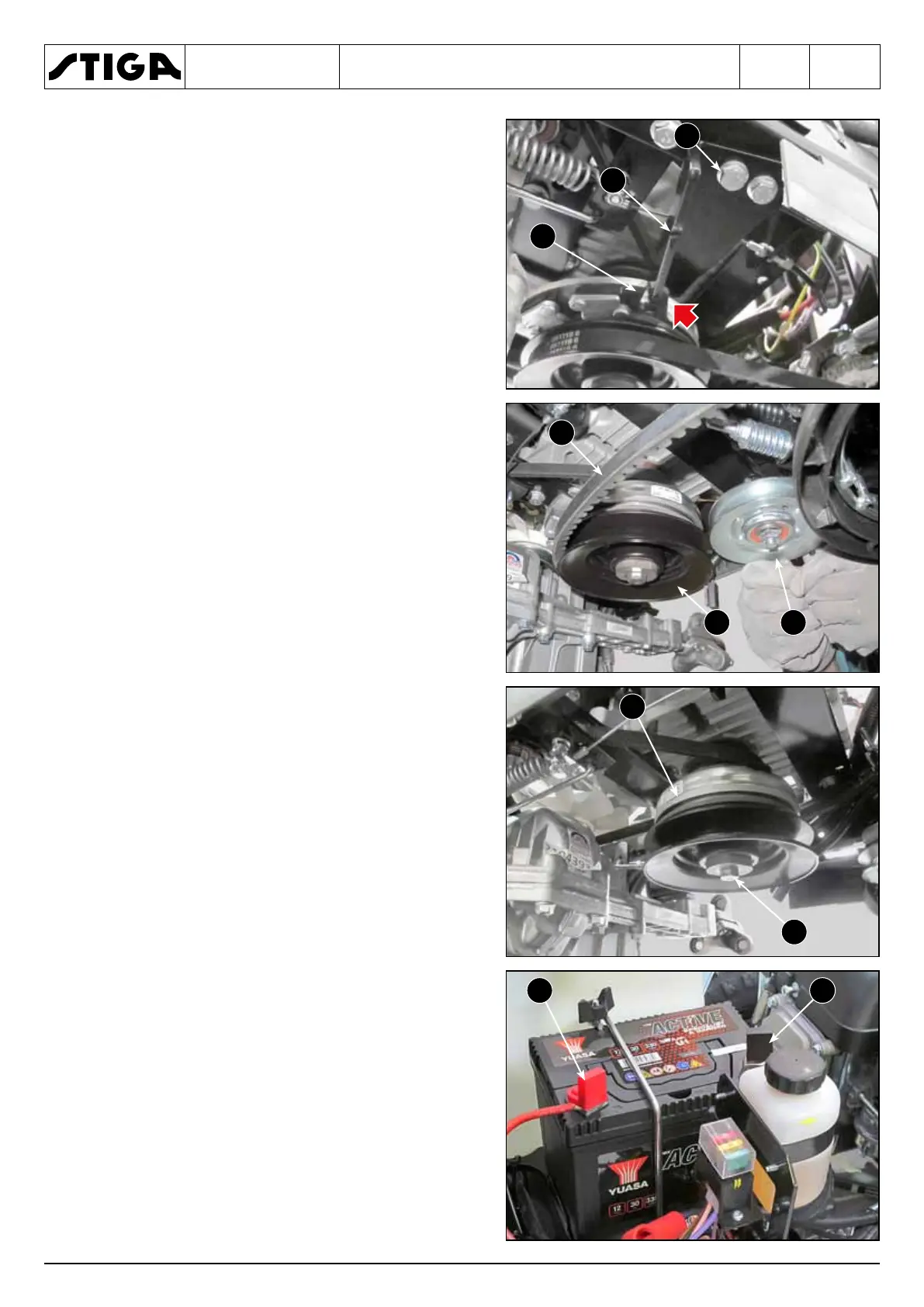

3. Unscrew the two screws (3) and remove the
anti-rotational stop (4).
4. Move the tightener (5) towards the centre of
the machine, as much as necessary to free the
toothed belt (6) from the pulley (7).
5. Using an impact driver, unscrew the central
screw (8) and remove the electromagnetic
clutch (9) from the crankshaft.
When assembling, perform the steps described
above in reverse order, paying attention to cor-
rectly insert the anti-rotational stop in the clutch
slot (10).
Tighten the screw (8) to a torque of 60-70 Nm.
1. Disconnect the black ground cable (1) from
the battery (2) to avoid causing short circuits
when disconnecting the electrical cables.
