WORKSHOP MANUAL
EDITION
PAGE
64 /
124
▶▶

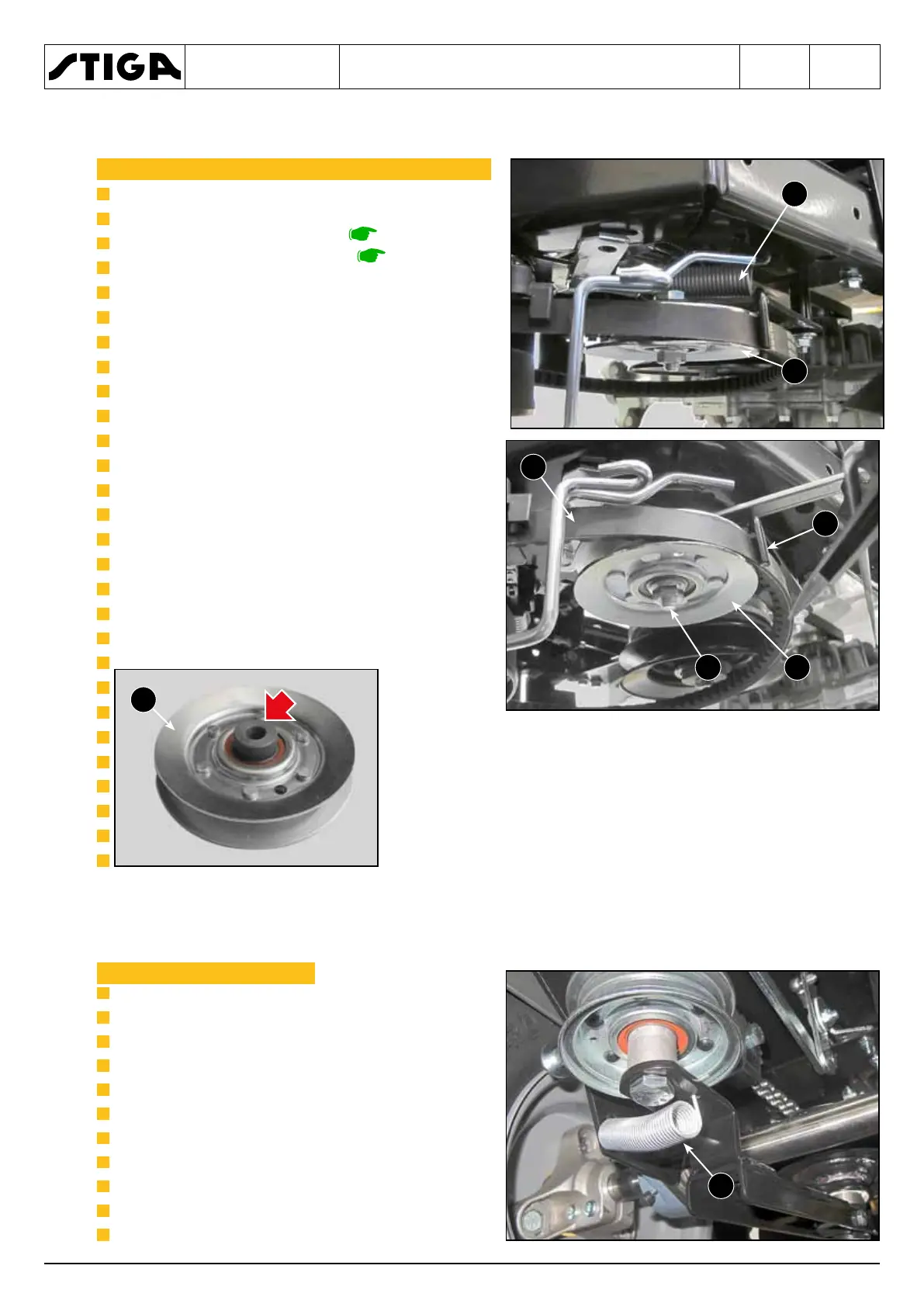

1. Remove the front casing
and the
right and left rear casings
paying
attention to the fact that their removal caus-
es the loss of the fastening points of the belt
guide arch.
2. Release the spring (1) to loosen the tight-
ener (2).
3. Unscrew the nut (3) and remove the tight-
ener (2) to release the belt (4) from the re-
taining pin (5).
4. Remove the belt (4).
When assembling, perform the steps described above in re-
verse order, taking care to reassemble the tightener (2) with
the protruding part of the hub facing upwards.
engagement tightener lever
▶▶
1. Release the spring (1).
